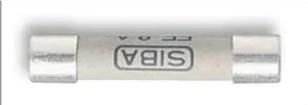

70-125-40 12.5A Siba

G FUSES MINIATURE FUSES SIBA Miniature Fuses Sizes: - Cylindrical fuses: 5 x 20 6.3 x 32 5 x 25 5 x 30 8 x 50 8 x 85 10 x 85 8 x 120 8 x 150 mm - Radial lead 2 pin fuses: KS, 8.4 mm - SMD fuses: Voltage ratings: 65 V - 10 kV Operation class: F fast acting T time lag M medium time lag FF very fast acting Standards: IEC 60127 DIN VDE 0820 CEE4 UL 248-14 UL 512 CSA-C22.2 No. 248.14 Approvals: SEV, BEAB Features / Benefits Very high interrupting rating up to 70 kA High rated voltages up to 10 kV High fuse ratings available for semiconductor protection Fuse bases, clips and accessories are available G 1G 0G FUSES MINIATURE FUSES CERAMIC TUBE FF Size Rated voltage Standard 6.3 x 32 mm 700 V very fast acting not standardized Rated Part No. Voltage Pre-arcing Rated Power Weight Pack 2 current drop l ts-value breaking dissipation (kg/100) 2 mV A s capacity W FUSES 160 mA 70 125 40 2000 0.004 50 kA 0.5 0.24 100 200 mA 70 125 40 1600 0.008 50 kA 0.6 0.24 100 250 mA 70 125 40 1500 0.024 50 kA 0.7 0.24 100 315 mA 70 125 40 1350 0.035 50 kA 0.7 0.24 100 400 mA 70 125 40 1030 0.07 50 kA 0.8 0.24 100 500 mA 70 125 40 950 0.14 50 kA 0.8 0.24 100 630 mA 70 125 40 860 0.14 50 kA 0.9 0.24 100 800 mA 70 125 40 760 0.22 50 kA 1.0 0.24 100 1 A 70 125 40 1100 0.14 50 kA 1.3 0.24 100 1.25 A 70 125 40 1000 0.22 50 kA 1.6 0.24 100 1.6 A 70 125 40 900 0.31 50 kA 1.9 0.24 100 2 A 70 125 40 800 0.64 50 kA 2.4 0.24 100 Size Rated voltage Standard 6.3 x 32 mm 500 V very fast acting not standardized Rated Part No. Voltage Pre-arcing Rated Power Weight Pack 2 current drop l ts-value breaking dissipation (kg/100) 2 mV A s capacity W FUSES 2.5 A 70 125 40 800 1.2 50 kA 2.7 0.24 100 3.15 A 70 125 40 700 2 50 kA 3.0 0.24 100 4 A 70 125 40 500 5 50 kA 3.2 0.24 100 5 A 70 125 40 400 10 50 kA 3.6 0.24 100 6.3 A 70 125 40 400 3 50 kA 4.0 0.24 100 1 8 A 70 125 40 350 6.5 50 kA 4.5 0.24 100 1 10 A 70 125 40 350 12 50 kA 5.0 0.24 100 1 12.5 A 70 125 40 300 18 50 kA 7.0 0.24 100 1 16 A 70 125 40 300 31 50 kA 9.0 0.24 100 1 20 A 70 125 40 300 46 50 kA 13 0.24 100 1 Consideration should be given to heat dissipation. G 31 cURus cURus
