X-On Electronics has gained recognition as a prominent supplier of 3SU1050-1BD10-0AA0 Pushbutton Switches across the USA, India, Europe, Australia, and various other global locations. 3SU1050-1BD10-0AA0 Pushbutton Switches are a product manufactured by Siemens. We provide cost-effective solutions for Pushbutton Switches, ensuring timely deliveries around the world.

3SU1050-1BD10-0AA0 Siemens

Name: 3SU1050-1BD10-0AA0
Brand: Siemens
SKU: 3SU10501BD100AA0_Siemens
Availability: InStock
Rating: 5 (11 reviews)

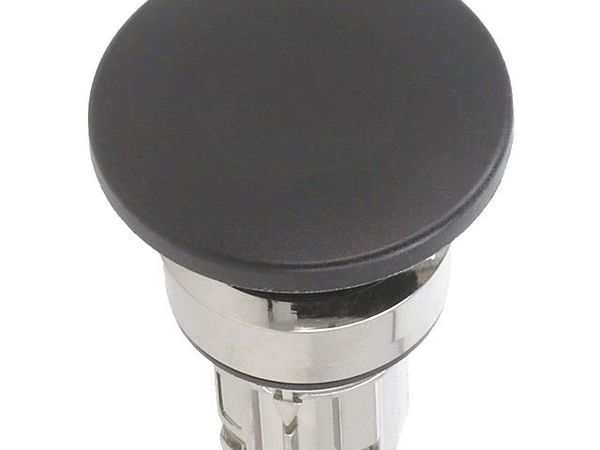

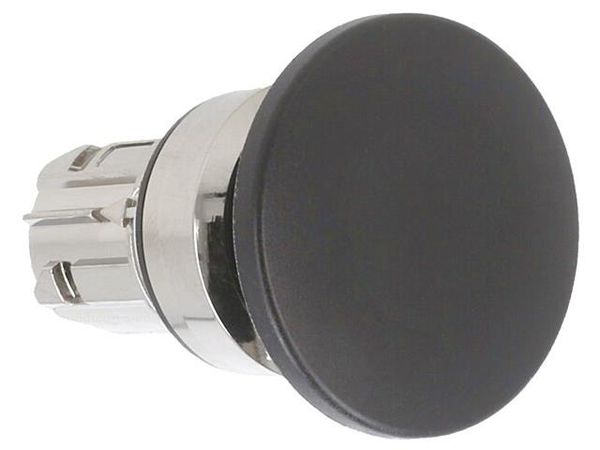

3SU1050-1BD10-0AA0 electronic component of Siemens

Images are for reference only
See Product Specifications

Part No.	3SU1050-1BD10-0AA0
Manufacturer:	Siemens
Category:	Pushbutton Switches
Description:	Switch: push-button; 1-position; 22mm; black; Illumin: none; IP67
Datasheet:	3SU1050-1BD10-0AA0 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 11.76 ea
Line Total: USD 11.76

Availability - 22
Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

3SU1050-1BD10-0AA0 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

22

Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ : 1
Multiples : 1

1 : USD 11.76
2 : USD 10.262
5 : USD 9.702

Specifications

Manufacturer
Siemens Siemens

Product Category
Pushbutton Switches Pushbutton Switches

IP Rating
Ip67 Ip67

Series
3Su1.5 3Su1.5

Button Shape
Mushroom Mushroom

Caution
Contact Sets Must Be Ordered Separately. Contact Sets Must Be Ordered Separately.

Illumination
None None

Related Items
3Su1400 - 1Aa10 - 1Ba0, 3Su1400 - 1Aa10 - 1Ca0, 3Su1400 - 1Aa10 - 3Ba0, 3Su1400 - 1Aa10 - 3Ca0, 3Su1400 - 2Aa10 - 1Ba0, 3Su1400 - 2Aa10 - 1Ca0, 3Su1400 - 2Aa10 - 3Ba0, 3Su1400 - 2Aa10 - 3Ca0, 3Su1550 - 0Aa10 - 0Aa0 3Su1400 - 1Aa10 - 1Ba0, 3Su1400 - 1Aa10 - 1Ca0, 3Su1400 - 1Aa10 - 3Ba0, 3Su1400 - 1Aa10 - 3Ca0, 3Su1400 - 2Aa10 - 1Ba0, 3Su1400 - 2Aa10 - 1Ca0, 3Su1400 - 2Aa10 - 3Ba0, 3Su1400 - 2Aa10 - 3Ca0, 3Su1550 - 0Aa10 - 0Aa0

Type Of Switch
Push - Button Push - Button

Switch Standard
22Mm 22Mm

Stable Positions Number
1 1

Actuator Colour
Black Black

Operating Temperature
- 25 To 70 C - 25 To 70 C

Mounting Hole Diameter
ø22 mm ø22 mm

Number Of Positions
2 2

Face Dimensions
Ø40mm Ø40mm

Notes:- Show Stocked Products With Similar Attributes.
