DELTA6B/X/SMAM/S/S/11 SIRETTA

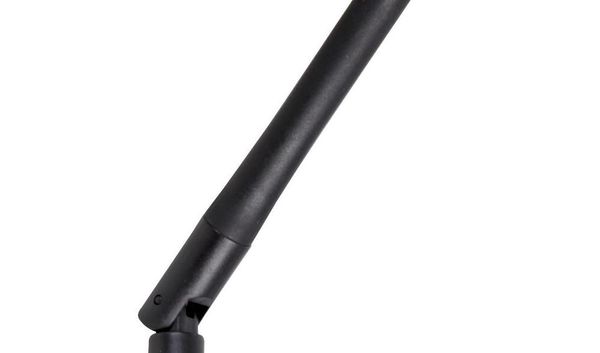

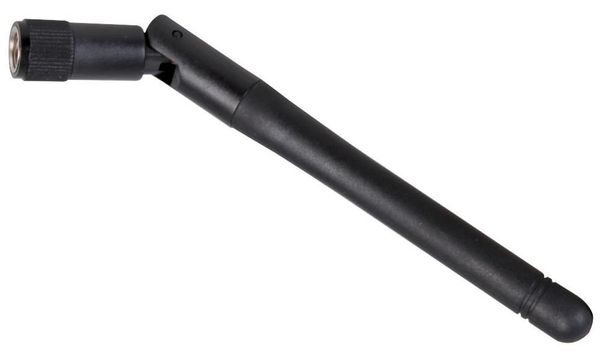

Delta 6B 2.4 - 2.5GHz 5dBi Swivel Type Antenna Key Features Adjustable mount SMA/SMA-RP male connector Compact size 5dBi gain 2.4 - 2.5GHz frequency General Description Additional Considerations The Siretta Delta 6B antenna is based Antenna can be flexibly installed with equipment on a 2008 redesign giving excellent Fits to many popular terminal equipment performance in the 2.4 - 2.5GHz WiFi band. The antenna does not rely on mounting on a metallic surface Meets EU compliance criteria for electronic goods Terminated with an SMA male or SMA-RP male connector, the unique knuckle adjusts through a 0 / 45 & 90 degree angle and swivels to ensure a vertical polarity when fitted to the radio module. The radiating element consists of a two part design and is over moulded in black, high grade rubber giving a rugged, stylish finish. The Delta 6B is a popular antenna for customers requiring a straightforward to fit, reliable product and is qualified and used with all of todays WiFi / Bluetooth or Zigbee products. Rev 1.1 Siretta is a division of Sequoia Technology Group Ltd Siretta sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 Registered in England No. 4004881 Spencers Wood email info siretta.co.uk VAT Registration No. GB614 5653 45 Reading web www.siretta.co.uk Berkshire RG7 1PWDelta 6B 2.4 - 2.5GHz 5dBi Swivel Type Antenna Key Specifications - Electrical Key Specifications - Mechanical Temperature range: -20 to +65C Dimensions: 196 2mm x 12.5 mm Storage -30 to +75C Connector: SMA/SMA-RP male temperature: Mounting Direct connect method: Impedance (ohm): 50 ohm Gain: 5 dBi VSWR: <2.0:1 Frequency range: 2.4 - 2.5GHz -17.41 2.4GHz (2) Return loss: -10.71 2.5GHz (3) Certain direction: Omni Polarization: Vertical Test Reports E Plane H Plane 2.4GHz 2.4GHz 2.45GHz 2.45GHz 2.5GHz 2.5GHz Siretta is a division of Sequoia Technology Group Ltd Siretta sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 Registered in England No. 4004881 Spencers Wood email info siretta.co.uk VAT Registration No. GB614 5653 45 Reading web www.siretta.co.uk Berkshire RG7 1PW
