TANGO18/SMAM/3M/S/S/19 SIRETTA

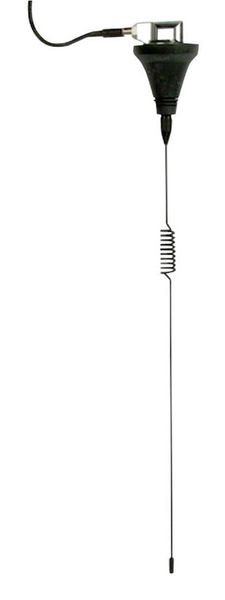

Tango 18 Quad Band GSM & 3G Through Hole Screw Mount Antenna Key Features Quad Band GSM & 3G Compatible High gain of 4 dBi Through hole mount base Suitable for automotive applications IP67 Rated 320mm overall length 37mm overall base diameter General Description Additional Considerations The Tango 18 operates on the 850/900/1800/ Suitable for both indoor and outdoor applications 1900/2100MHz GSM/GPRS/3G networks across Improves cellular GSM & 3G signals for mobile or Europe, Asia and Africa. stationary applications The Tango 18 is a through-hole mount antenna Works well to enhance mobile phone signal strength that operates on Quad Band GSM & 3G in a workplace frequencies. It is a 1/2 wave omni directional antenna with a high gain of 4dBi. It is 320mm tall Rugged and tough design from the bottom of its base to the tip. The Tango 18 has a right angle screw base with a through hole screw thread that needs a 13mm hole. The cable can be screwed through a surface of up to 4mm thick. The cable protrudes from the base at a right angle and screws into the base via an FME female connector allowing easy fitment of the base itself. The clearance required on its underside of the surface to clear the base is 13mm. Common applications for this wave omni directional antenna are improving the cellular GSM & 3G signal strength either in static or motion based applications, such as workplaces (offices, factories, warehouses) or on top of vehicles (vans, lorries). Furthermore to this, the Tango 18 is IP67 rated which means it is safe to use outdoors. Rev 1.3 Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 A member of the Olancha Group Ltd Spencers Wood email sales siretta.co.uk Registered in England No. 08405712 Reading web www.siretta.co.uk VAT Registration No. GB163 04 0349 Berkshire RG7 1PWTango 18 Quad Band GSM & 3G Through Hole Screw Mount Antenna Tango 18 Mechanics Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 A member of the Olancha Group Ltd Spencers Wood email sales siretta.co.uk Registered in England No. 08405712 Reading web www.siretta.co.uk VAT Registration No. GB163 04 0349 Berkshire RG7 1PW
