X-On Electronics has gained recognition as a prominent supplier of WMGBMIC10 Unclassified across the USA, India, Europe, Australia, and various other global locations. WMGBMIC10 Unclassified are a product manufactured by Sonel. We provide cost-effective solutions for Unclassified, ensuring timely deliveries around the world.

WMGBMIC10 Sonel

Name: WMGBMIC10
Brand: Sonel
SKU: WMGBMIC10_Sonel
Availability: OutOfStock
Rating: 5 (11 reviews)

Images are for reference only
See Product Specifications

Part No.	WMGBMIC10
Manufacturer:	Sonel
Category:	Unclassified

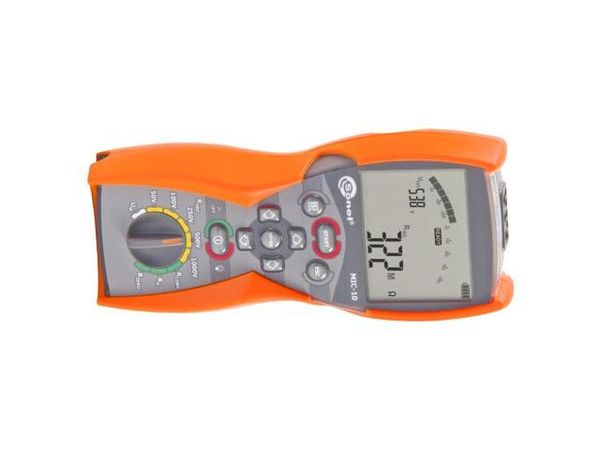

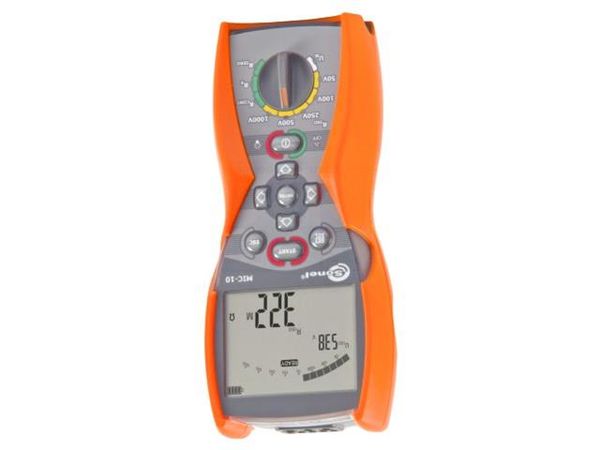

Description:	Meter: insulation resistance; LCD,with a backlit; IP67
Datasheet:	WMGBMIC10 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 632.8768 ea
Line Total: USD 632.88

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

WMGBMIC10 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Tue. 23 Jul to Mon. 29 Jul MOQ : 1 Multiples : 1	1 : USD 627.1902

Specifications

Manufacturer Sonel Sonel
Product Category Unclassified Unclassified
Category Unclassified Unclassified
Kind Of Display Used LCD, with A backlit LCD, with A backlit
Ip Rating IP67 IP67
Standard Equipment test leads, calibration certificate, 2 pointed electrodes, 2 crocodile clips, bag test leads, calibration certificate, 2 pointed electrodes, 2 crocodile clips, bag
Measuring Instrument Features autoranging, automatic power - off, low battery indicator autoranging, automatic power - off, low battery indicator
Conform To The Norm EN61010 1000V CAT III, EN61010 600V CAT IV EN61010 1000V CAT III, EN61010 600V CAT IV
Weight With Battery 600 g 600 g
Capacitance Measuring Accuracy ± (5 % + 10 digits) ± (5 % + 10 digits)
Type Of Meter insulation resistance insulation resistance
Dc Voltage Measuring Accuracy (2 % + 2 digits) (2 % + 2 digits)
Insulation Resistance Measuring Accuracy ± (3 % + 8 digits) ± (3 % + 8 digits)
Resistance Measuring Accuracy ± (0 , 3 % + 3 digit) ± (0 , 3 % + 3 digit)
Ac Voltage Measuring Accuracy (2 % + 2 digits) (2 % + 2 digits)
Measurement AC voltage, DC voltage, insulation resistance, capacitance, resistance AC voltage, DC voltage, insulation resistance, capacitance, resistance
Resistance Measuring Range 199.9 Ohms , 1999 MOhms 199.9 Ohms , 1999 MOhms
Dc Voltage Measuring Range 600 V , 299.9 V 600 V , 299.9 V
Ac Voltage Measuring Range 600 V , 299.9 V 600 V , 299.9 V
Power Supply b A ttery LR6 A A 1 , 5 V x4 b A ttery LR6 A A 1 , 5 V x4
Battery/ Rechargeable Battery battery LR6 AA 1 , 5V x4 battery LR6 AA 1 , 5V x4
Body Dimensions 200x100x60mm 200x100x60mm
Test Voltage 50 V @ 50kΩ To 250MΩ , 100 V @ 100kΩ To 500MΩ , 250 V @ 250kΩ To 2GΩ , 500 V @ 500kΩ To 5MΩ , 1 kV @ 1MΩ To 10MΩ 50 V @ 50kΩ To 250MΩ , 100 V @ 100kΩ To 500MΩ , 250 V @ 250kΩ To 2GΩ , 500 V @ 500kΩ To 5MΩ , 1 kV @ 1MΩ To 10MΩ
Capacitance Measuring Range 1 To 999 nF , 1 To 9.99 uF 1 To 999 nF , 1 To 9.99 uF
Insulation Resistance Measuring Ranges 0 , 1M To 999 , 9k/9 , 999M/99 , 99M/999 , 9M/2G/5G/9 , 999G Ohms 0 , 1M To 999 , 9k/9 , 999M/99 , 99M/999 , 9M/2G/5G/9 , 999G Ohms

We are delighted to provide the WMGBMIC10 from our Unclassified category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the WMGBMIC10 and other electronic components in the Unclassified category and beyond.

More Products By Manufacturer "Sonel"

Image	Part-Description
Hot	WMGBCMP401 AC/DC digital clamp meter; Øcable: 30mm; I DC: 4A,400A; -20÷760°C Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMM10 Digital multimeter; LCD (5000),with a backlit; VDC: 0÷600V; IP40 Stock : 7 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMM11 Digital multimeter; Bluetooth; LCD (4000),with a backlit; IP65 Stock : 14 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMM30 Digital multimeter; Bluetooth; LCD (6000),with a backlit; IP67 Stock : 3 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMM40 Digital multimeter; with a backlit; VDC: 0÷1kV; VAC: 0÷1kV; 0÷40MΩ Stock : 3 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMP200 Leakage current clamp meter; Øcable: 30mm; Body dim: 182x61x34mm Stock : 4 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMP2000 AC/DC digital clamp meter; Øcable: 57mm; I DC: 659.9A,2000A; IP20 Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMP3000 AC/DC digital clamp meter; I DC: 1000A; I AC: 3000A; VDC: 1000V Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WMGBCMP400 AC digital clamp meter; Øcable: 30mm; I AC: 4A,40A,400A; IP40 Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	WASONBUOGB1 Test probe; 20A; 1kV; blue; Conform to: CAT III 1000V Stock : 2 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Unclassified"

Image	Part-Description
Hot	MC0603-6803-FTW MC06036803FTW rcd Stock : 50000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	MC0805-473-JTW MC0805 47K 5% T&R PB FREE Stock : 25000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RC1005F1004CS EH Stock : 8000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RC1608J301CS RES THKFLM 0603 300 OHM ?5% 1/10W SMD Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RC0402F4991 EH Stock : 18000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RMCF0402FT102K 102 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200 Thick Film Stock : 61100 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RMCF0402FT1K50 1.5 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200 Thick Film Stock : 60000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RMCF0603ZT0R00 Res Thick Film 0603 0 Ohm Pad SMD Automotive T/R Stock : 1470000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	RMCF0402FT4K02 4.02 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200 Thick Film Stock : 40000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	MC0402-2210-FTW CHIP RES 0402 221 OHM 1% T&R Stock : 40000 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

Additional Infomation About Product

The WMGBMIC10 is a multifunctional insulation resistance meter manufactured by Sonel. It features an LCD display with a backlight for easy reading in low light conditions, and also has an IP67 rating for protection against dust and moisture. This meter is designed for testing insulation resistance and leakage current in electrical installations and can be used for preventive and routine maintenance. The meter also features a number of advanced features and functions such as low-voltage alarm, battery test, and memory recording. Furthermore, the meter is ergonomically designed to provide a comfortable work experience.
