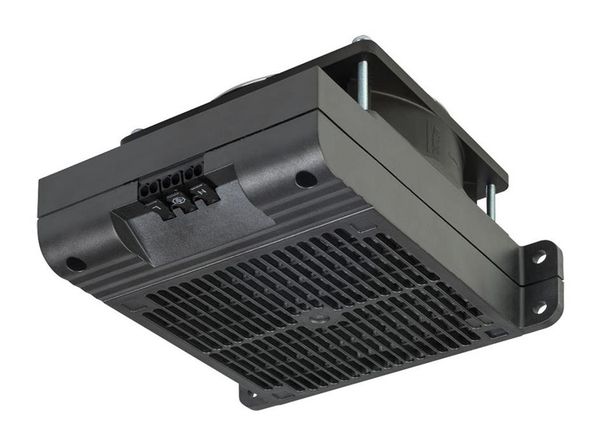

Toll free: 1-888-783-4611 (US & Canada only) www.stegousa.com SPACE-SAVING FAN HEATER (fan included) HVI 030 500 - 700 W > Compact size > Built-in overheat protection > Flat design > Twist clip or screw mountable The compact high-performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater may only be operated together with a fan, but is also available without axial fan (for self-installation). The fan heaters are available with two different mounting systems either mounting by screws or with a new and unique twist clip mounting system. These options allow for a quick and easy installation of the fan heater. TECHNICAL DATA Heating element high performance cartridge Temperature safety cut-out with automatic reset and second-tier one shot fuse Axial fan, ball bearing service life 50,000 h at +77 F (+25 C) Air flow, free blowing 88 cfm (150 m/h) Connection 2-pole dual pressure clamp for solid wire AWG 14 max. (2.5 mm), stranded wire (with wire end ferrule) AWG 16 max. (1.5 mm) Housing plastic, UL 94V-0, black Mounting twist clip for 35 mm DIN rail, EN 60715 or M6 screws and washers (not included), torque 2 Nm max. Mounting position vertical airflow (air outlet up) Operating temperature UL: +14 to +104 F (-10 to +40 C) VDE: +14 to +122 F (-10 to +50 C) Storage temperature -49 to +158 F (-45 to +70 C) Operating / Storage humidity max. 90 %RH (non-condensing) Dimensions 6.65 x 5.0 x 3.5 (169 x 127 x 89 mm) Weight approx. 3.1 lbs (1.4 kg) Protection class / Protection type heater: II (double insulated), fan: I (grounded) / IP20 Approvals VDE, UL File No. E234324, GOST-R Note other heating capacities and voltages available on request View: back side Twist clip mount Screw mount Important note: Heater may only be operated together with fan (min. 88 cfm). Danger of overheating Part No. - twist clip mounting Part No. - screw mounting Operating voltage Heating capacity Pre-fuse T (time-delay) 03082.0-00 03082.0-01 AC 230 V, 50/60 Hz 700 W 4 A 03082.9-00 03082.9-01 AC 120 V, 50/60 Hz 700 W 8 A 03083.0-00 03083.0-01 AC 230 V, 50/60 Hz 600 W 3.15 A 03083.9-00 03083.9-01 AC 120 V, 50/60 Hz 600 W 6.3 A 03084.0-00 03084.0-01 AC 230 V, 50/60 Hz 500 W 3.15 A 03084.9-00 03084.9-01 AC 120 V, 50/60 Hz 500 W 6.3 A 08.08.2014 Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application. www.stegousa.comX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for stego manufacturer: Other Similar products are found below : 01870.0-30 01872.0-30 01873.0-30 01874.0-30 11884.0-30 14003.0-00 01925.0-00 11870.0-00 11873.0-00 02541.1-03-0003 03082.0-01 03082.0-00 03084.0-00 01131.2-01 02031.0-00 02032.0-00 02035.0-10 02540.0-03 01131.9-00 08605.0-00 03114.0-00 01871.1-30 01925.1-01 12101.0-30 01163.0-01 01163.0-03 01164.0-00 01170.0-01 01170.9-01 08601.0-00 01882.0-00 14006.0-00 14008.0-00 01802.0-00 02820.0-06 02701.0-00 04640.0-00 06020.0-00 11802.0-00 02540.0-00 03202.9-00 244358 01131.2-00 01610.0-01 01231.1- 00 28410.0-00 244356 01185.1-00 02034.0-00 02540.1-11
