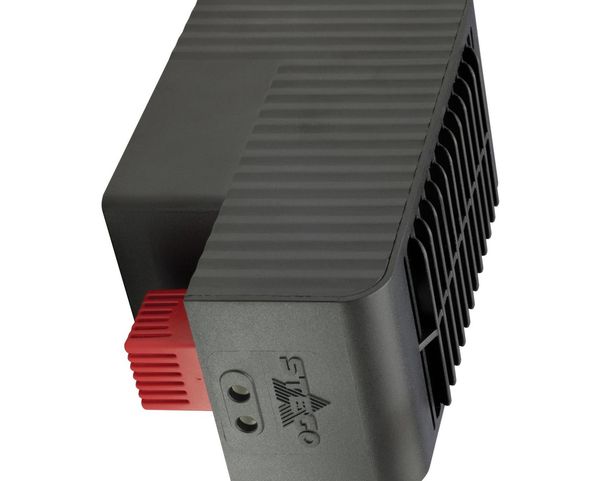

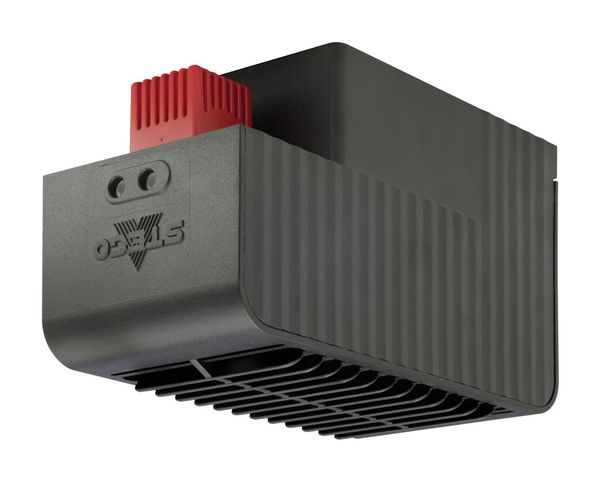

Toll free: 1-888-783-4611 (US & Canada only) www.stegousa.com COMPACT PTC FAN HEATER CS 032/CSF 032 1000 W > Compact design > DIN or screw mount > High heating performance > Optional integrated fixed thermostat > Double insulated plastic housing The compact CS 032 high performance fan heater prevents the formation of condensation and provides an evenly distributed interior air temperature in enclosures. The plastic housing provides protection against contact with current-carrying components via double insulation (protection class II). The fan heater is also available with an optional fixed-point thermostat as the CSF 032. These series were designed to accommodate DIN rail or screw CS 032 Fan Heater mounting. TECHNICAL DATA Heating element PTC resistor - temperature limiting Overheat protection built-in temperature limiter Surface temperature max. 176 F (80 C), except upper protective grille at 68 F (20 C) ambient temperature Air outlet temperature max. 257 F (125 C), 2 (50 mm) above grill Axial fan, ball bearing service life 70,000 h at 77 F (25 C) Air flow, free blowing 37 cfm (63 m/h) CSF 032 Fan Heater Connection male power insert connector according to IEC320 C18 with Integrated Thermostat Housing plastic, UL 94V-0, black Mounting clip for 35 mm DIN rail, EN 60715 or screw mount (M5, not included), tightening torque 2 Nm max. Mounting position air flow directed up Operating / Storage temperature -40 to +140 F (-40 to +60 C) / -40 to +158 F (-40 to +70 C) Operating / Storage humidity max. 90 %RH (non-condensing) Dimensions 5.9 x 3.5 x 2.6 (150.5 x 88 x 66 mm) Weight approx. 16.5 oz. (650 g) Protection class / Protection type II (double insulated) / IP20 Approvals UL File No. E234324, VDE, GOST TR Important note: Connectors and cables for electrical connection are not included with the heater. Connection cables are available as accessories. Part No. - Part No. - Series Operating voltage Heating Max. current Switch-off Switch-on DIN rail mount screw mount capacity (inrush) temperature temperature 03209.0-00 03209.0-01 CS 032, no thermostat AC 220-240 V, 50/60 Hz 1000 W 12 A - - 03209.9-00 03209.9-01 CS 032, no thermostat AC 100-120 V, 50/60 Hz 1000 W 18 A - - 03201.0-00 03201.0-01 CSF 032, with thermostat AC 220-240 V, 50/60 Hz 1000 W 12 A 77 F (25 C) 59 F (15 C) 03201.9-00 03201.9-01 CSF 032, with thermostat AC 100-120 V, 50/60 Hz 1000 W 18 A 77 F (25 C) 59 F (15 C) 03202.0-00 03202.0-01 CSF 032, with thermostat AC 220-240 V, 50/60 Hz 1000 W 12 A 59 F (15 C) 41 F (5 C) 03202.9-00 03202.9-01 CSF 032, with thermostat AC 100-120 V, 50/60 Hz 1000 W 18 A 59 F (15 C) 41 F (5 C) at 77 F (25 C) ambient temperature tolerance of 5 K Note: Other Switch-off and Switch-on temperatures on request 08.08.2014 Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application. www.stegousa.comToll free: 1-888-783-4611 (US & Canada only) www.stegousa.com DIMENSIONAL DRAWING CS 032 Fan Heater CSF 032 Fan Heater with Integrated Thermostat View: back side Screw mount DIN rail mount Ambient Temperature ACCESSORIES Connection cable with female power insert connector according IEC320 C17 Part No. Length (L) 244379 1.0 m 244380 2.0 m Retaining Clip Photo: Retaining clip, Part No. 237009 Part No. Note 237009 Suitable for female power insert connector on connection cable 244379 and 244380 Heating Power (W) 08.08.2014 Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application. www.stegousa.com
