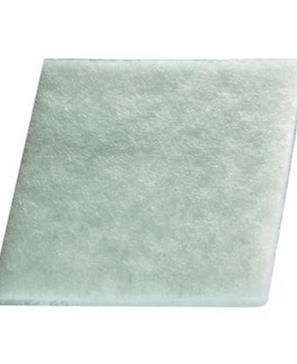

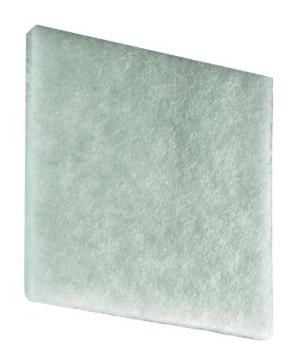

1 Toll free: 1-888-783-4611 (US & Canada only) www.stegousa.com FILTER FAN PLUS FPI/FPO 11.46 X 11.46 (291 X 291 MM) > New air- ap outlet technology for > Two optional systems for optimal high air ow air ow (FPI/FPO) > Easy mounting > Industry-common enclosure cut-out > Protection type/Environmental sizes (5 sizes) ratings by independent testing > Single lter mat system design agencies (VDE & UL) Filter fans are used to providecoolin by forced air-circulation in enclosures and cabinets containing eletrical/ electronic and other components. The interior temperature of an enclosure can be reduced by channelling cooler, filtered outside air into the enclosure, thus expelling hot inside air. The resulting air flow prevents formation of localized hot pockets and protects electronic components from overheating. The Filter Fan Plus series encompasses a new air- flap technology on the air outlet side, thereby reaching an unparalleled high degree of air flow. A unique ratchet mechanism is used for easy installation. It provides safe and secure mounting while guaranteeing a tight seal. Depending on the requirements, there are two optional systems available the FPI or the FPO system (FPI =i, FPO =ou). The FPI system is the more commonly known installation system, where a fi lter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure (air flow directionI). This system consists of a filter fan and exhaust filter. On opposite, with the newer FPO system, the fi lter fan will be located in the upper area of the enclosure to draw warmer air out of the enclosure (air flow directionOu). The FPO system consists of an intake fi lter and exhaust fi lter fan. The Filter Fan Plus series has been designed for indoor use. TECHNICAL DATA Axial fan, ball bearing service life L10 at +104 F (+40 C): min. 76,000 h metal impeller Connection 3-pole clamp for AWG 14 (2.5 mm), clamping torque 0.8 Nm max. SYSTEM FPI Housing, hood, aps plastic UL 94V-0, light grey UV light resistant according to UL 746C (f1) Enclosure cut-out 11.46 x 11.46 (291 x 291 mm) Exhaust Filter FPI 118 Mounting frame 4 built-in ratchet push levers for mounting (6 ratchet stops to accommodate for wall thicknesses Gauge 9 to 19 or 1-4 mm). 1 Air-aps Additional screw mounting possible if needed . Filter mat G3 acc. to DIN EN 779, average arrestance A 84 % a Filter material synthetic mesh with progressive construction, temperature resistant to +212 F (+100 C), self-extinguishing class F1, moisture resistant to 100 % RH, reusable Operating temperature 50 Hz: -13 to +131 F (-25 to +55 C) 60 Hz: -13 to +95 F (-25 to +35 C) Filter Fan FPI 018 Storage temperature -40 to +158 F (-40 to +70 C) Filter mat Operating/Storage humidity max. 75 % RH (non-condensing) Protection type/Protection class IP54 / I (grounded) Environmental rating UL/NEMA UL TYPE 12 / NEMA 12 Approvals VDE, UL File No. E234324, EAC Note other voltages on request 1 Drilling hole markings for screw mounting are indicated on mounting frame. AIRFLOW DIRECTIONI: FILTER FAN FPI 018 Part No. Operating voltage Air volume, Air volume Current consumption Power Average noise level Mounting depth Weight Filter mat free blowing with exhaust fi lter (50/60 Hz) consumption (DIN EN ISO 4871) (approx.) 01874.0-30 AC 230 V, 50/60 Hz 254.8 cfm (433m/h) 219.5 cfm (373 m/h) 400/480 mA 95 W 62 dB (A) 6.3 (160 mm) 6.8 lbs. (3.1 kg) G3 01874.9-30 AC 115 V, 50/60 Hz 231.9 cfm (394 m/h) 199.5 cfm (339 m/h) 660/800 mA 90 W 61 dB (A) 6.3 (160 mm) 6.8 lbs. (3.1 kg) G3 AIRFLOW DIRECTIONI: EXHAUST FILTER FPI 118 Part No. Mounting depth Weight (approx.) Air outlet 11874.0-00 2.0 (50 mm) 2.2 lbs. (1.0 kg) air- ap outlet technologfl y cold warm 12.02.2016 Speci cations are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its nal application. www.stegousa.com2 Toll free: 1-888-783-4611 (US & Canada only) www.stegousa.com SYSTEM FPO Filter Fan FPO 018 Air-aps Intake Filter FPO 118 Filter mat AIRFLOW DIRECTIONOU: FILTER FAN FPO 018 Operating voltage Air volume, free Air volume Current consumption Power Average noise level Mounting depth Weight Air outlet Part No. blowing with exhaust filter (50/60 Hz) consumption (DIN EN ISO 4871) (approx.) 01884.0-00 AC 230 V, 50/60 Hz 427.9 cfm (727 m/h) 243.1 cfm (413 m/h) 400/480 mA 95 W 63 dB (A) 6.3 (160 mm) 7.0 lbs. (3.2 kg) air-flaps 01884.9-00 AC 115 V, 50/60 Hz 413.8 cfm (703 m/h) 230.1 cfm (391 m/h) 660/800 mA 90 W 62 dB (A) 6.3 (160 mm) 7.0 lbs. (3.2 kg) air-flaps AIRFLOW DIRECTIONOU: INTAKE FILTER FPO 118 Part No. Mounting depth Weight (approx.) Filter mat 11884.0-30 1.0 (25 mm) 1.8 lbs. (0.8 kg) G3 acc. to DIN EN 779, average arrestance A 84 % a FILTER MAT FM 086 Filter class 11.14 x 11.14 (283 x 283 mm) Average arrestance A 1 packing unit a G3 acc. to DIN EN 779 Part No. 08637.0-00 84 % 5 pieces DIMENSIONED DRAWINGS 0.98 0.98 1.14 1.14 1.97 1.97 1.14 1.14 1.14 1.14 (25mm)(25mm) 0.98 1.14 1.14 1.14 1.97 1.14 6.30 (160mm)6.30 (160mm)(29mm)(29mm) 12.68 (322mm) 12.68 (322mm) 12.68 (322mm)12.68 (322mm) (50mm)(50mm)(29mm)(29mm) 6.30 (160mm)6.30 (160mm)(29mm)(29mm) 1.14 (25mm) (29mm)(29mm) 12.68 (322mm) 6.30 (160mm) (29mm) (50mm) (29mm) 1.14 12.68 (322mm) 6.30 (160mm) (29mm) (29mm) FPI 018 FPI 118 FPO 018 FPO 118 cold warm 11.46 (291mm)11.46 (291mm) 11.46 (291mm) 11.46 (291mm)11.46 (291mm) 11.46 (291mm) 11.46 (291mm)11.46 (291mm) 11.46 (291mm) 11.46 (291mm)11.46 (291mm) 11.46 (291mm) 12.02.2016 Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application. www.stegousa.com
