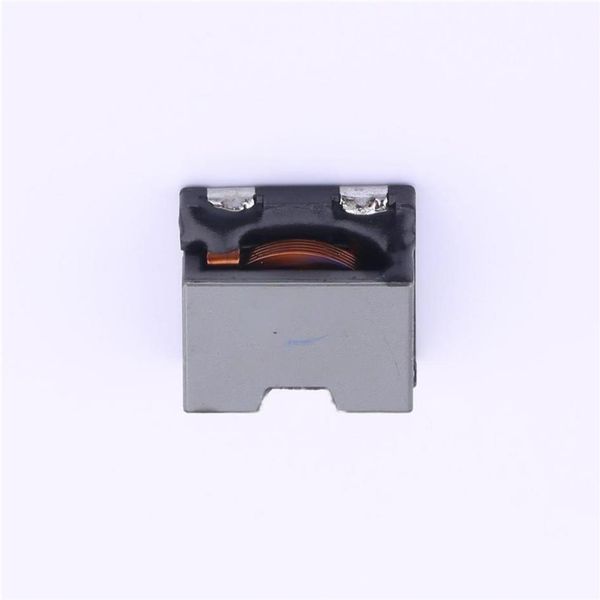

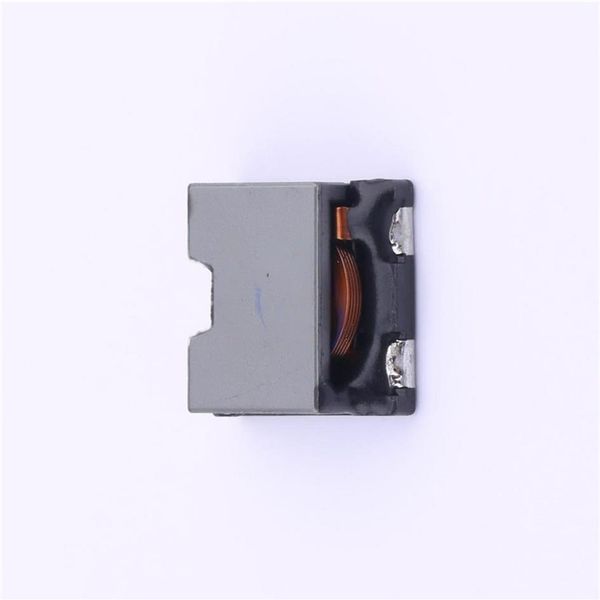

CEP125NP-4R0MC-H Sumida

SMD Power Inductor CEP125 Description Ferrite core construction. RoHS Magnetically shielded. LWH: 12.912.95.6 mm Max. Product weight: 2.7g(Ref.) Moisture Sensitivity Level: 1 RoHS compliance. Environmental Data Operating temperature range: -40~+125 Dimension - mm (including coils self temperature rise) Storage temperature range: -40+125 12.50.4 MAX.5.6 4.00.2 4.20.2 Solder reflow temperature: 260 peak. Packaging Carrier tape and reel packaging 13.0diameter reel 500pcs per reel Applications Ideally used in portable computer CPU and Land pattern and Schematics - mm other power supply. 10.0 4.0 3.0 Page 1 of 5 Revised: 10-Jan-17 12.50.4 4.2 4.0 13.5 2.60.2 2.60.2 . 0.2 70 2.50.2SMD Power Inductor CEP125 Electrical Characteristics - 1 SATURATION D.C.R. (m) TEMPERATURE INDUCTANCE CURRENT(A) 2 PART NO. STAMP MAX. (Typ.) RISE CURRENT WITHIN 1 (at 20 ) (A) 3 (at 20 ) (at100 ) CEP125NP-1R5MC 1R5M 1.5H20% 2.5(2.1) 14.0 11.8 16.5 CEP125NP-2R5MC 2R5M 2.5H20% 3.4(2.8) 10.0 8.8 15.5 CEP125NP-4R0MC 4R0M 4.0H20% 5.4(4.5) 8.3 7.2 12.5 CEP125NP-6R0MC 6R0M 6.0H20% 8.0(6.6) 6.7 5.8 9.9 CEP125NP-8R2MC 8R2M 8.2H20% 11.4(9.5) 5.8 5.1 8.2 CEP125NP-100MC 100M 10.0H20% 13.5(11.2) 5.0 4.6 7.6 Electrical Characteristics - 2 SATURATION D.C.R. (m) TEMPERATURE INDUCTANCE CURRENT ( A ) 2 PART NO. STAMP MAX. (Typ.) RISE CURRENT WITHIN1 (at 20 ) ( A ) 3 (at 20 ) (at100 ) CEP125NP-1R0MC-H 1R0MH 1.0H20% 2.5(2.1) 20.0 17.4 16.5 CEP125NP-1R8MC-H 1R8MH 1.8H20% 3.4(2.8) 15.3 12.9 15.5 CEP125NP-2R8MC-H 2R8MH 2.8H20% 5.4(4.5) 12.3 10.2 12.5 CEP125NP-4R0MC-H 4R0MH 4.0H20% 8.0(6.6) 10.3 8.6 9.9 CEP125NP-5R6MC-H 5R6MH 5.6H20% 11.4(9.5) 8.8 7.7 8.2 CEP125NP-7R2MC-H 7R2MH 7.2H20% 13.5(11.2) 7.8 6.6 7.6 Electrical Characteristics - 3 SATURATION TEMPERATURE D.C.R. (m) INDUCTANCE CURRENT ( A ) 2 RISE CURRENT PART NO. STAMP MAX. (Typ.) WITHIN1 ( A ) 3 (at 20 ) (at 20 ) (at100 ) CEP125NP-0R3NC-U 0R3NU 0.35H30% 1.8(1.5) 35.0 32.0 18.5 CEP125NP-0R8NC-U 0R8NU 0.8H30% 2.5(2.1) 25.7 21.8 16.5 CEP125NP-1R4MC-U 1R4MU 1.4H20% 3.4(2.8) 19.2 16.4 15.5 CEP125NP-2R2MC-U 2R2MU 2.2H20% 5.4(4.5) 14.8 12.8 12.5 CEP125NP-3R2MC-U 3R2MU 3.2H20% 8.0(6.6) 12.8 10.9 9.9 CEP125NP-4R3MC-U 4R3MU 4.3H20% 11.4(9.5) 11.0 9.1 8.2 CEP125NP-5R6MC-U 5R6MU 5.6H20% 13.5(11.2) 9.5 7.8 7.6 1. Measuring condition: at 100kHz. 2. Saturation current :The value of D.C. current when the inductance decreases to 65% (while the tolerance is 30%) or 75% (while the tolerance is 20%) of its nominal. 3. Temperature rise current: The value of D.C. current when the temperature rise is t40(Ta 20). Page 2 of 5 Revised: 10-Jan-17
