FSR-16H1 Sungmun

Name: FSR-16H1
Brand: Sungmun
SKU: FSR16H1_Sungmun
Availability: InStock
Rating: 5 (11 reviews)

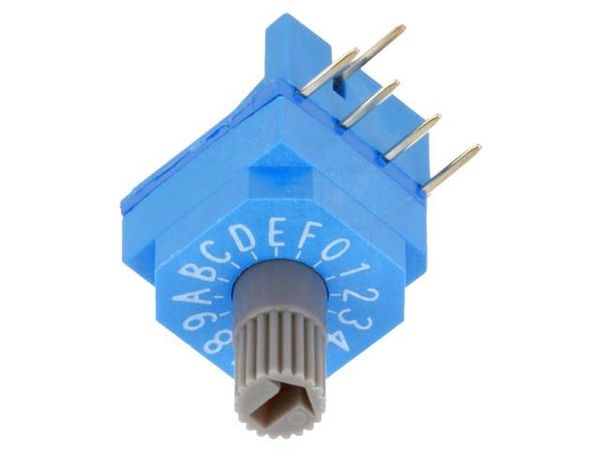

FSR-16H1 electronic component of Sungmun

Images are for reference only
See Product Specifications

Part No.	FSR-16H1
Manufacturer:	Sungmun
Category:	Unclassified
Description:	Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 80mΩ; 7Ncm; F
Datasheet:	FSR-16H1 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 2.7636 ea
Line Total: USD 2.76

Availability - 338
Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

FSR-16H1 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

338

Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ : 1
Multiples : 1

1 : USD 2.7636
5 : USD 2.4843
14 : USD 1.3377
37 : USD 1.2642

Specifications

Manufacturer
Sungmun Sungmun

Product Category
Unclassified Unclassified

Category
Unclassified Unclassified

Mounting
THT THT

Terminal Pitch
2.54mm 2.54mm

Min. Insulation Resistance
100 MOhms 100 MOhms

Leads
for PCB, right angle for PCB, right angle

Kind Of Encoding Switch
HEX/BCD HEX/BCD

Type Of Switch
encoding switch encoding switch

Number Of Positions
16 16

Max. Contact Resistance
: 80 mOhms : 80 mOhms

Manufacturer Series
F F

Stable Positions Number
16 16

Switching Torque
7Ncm 7Ncm

Body Dimensions
10x10x6.5mm 10x10x6.5mm

Dc Contacts Rating @R
0.2A / 42V DC 0.2A / 42V DC
