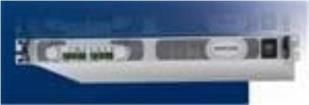

TM Genesys Programmable DC Power Supplies Programmable DC Power Supplies 750W /1500W in 1U 750W /1500W in 1U Built in RS-232 & RS-485 Interface Built in RS-232 & RS-485 Interface Parallel Current Summing Parallel Current Summing Optional Interfaces: USB Optional Interfaces: USB Compliant LAN Compliant LAN IEEE488.2 SCPI Multi-Drop IEEE488.2 SCPI Multi-Drop Isolated Analog Interface Isolated Analog Interface TM Genesys Family GEN H 750W Half Rack GEN 1U 750/1500W Full Rack GEN 2U 3.3/5kW GEN 3U 10/15kW www.us.tdk-lambda.com/hpThe Genesys family of programmable power supplies sets a new standard for flexible, reliable, AC/DC power systems in Test & Measurement, Industrial and Laboratory applications. Genesys power supplies are designed for demanding applications. Common controls are shared across all platforms. Test and Measurement Last-Setting memory simplifies test design and requires no battery backup. Built-in RS-232/RS-485 gives maximum system flexibility along with 0-5V and 0-10V, selectable analog programming. Wide range of available outputs allows testing of many different devices. Semiconductor Processing Equipment designers appreciate the wide range Input (85-265Vac) and numerous Outputs from which to select depending on application. Selectable Safe and Auto Re-start protects loads and process integrity. Typical applications include Magnets, Filaments and Heaters. Aerospace and Satellite Testing Complex systems use the complete Genesys Family: 1U 750W Half Rack, 1U 750W or 1500W Full-Rack, 2U 3.3kW and 3U 10/15kW. All are identical in Front Panel, Rear Panel Analog and Digital Interface Commands. A wide variety of outputs allows testing of many different devices. Laser Diode OVP is directly set on Voltage Display, assuring accurate protection settings. Current Limit Fold Back assures load is protected from current surges. Heater Supplies Smooth, reliable encoders with selectable Fine and Coarse adjustment enhance Front Panel Control. Remote Analog Programming is user selectable 0-5V or 0-10V and optional Isolated Programming/Monitoring Interfaces are also available. RF Amplifiers and Magnets Robust design assures stable operation under a wide variety of loads. High linearity in voltage and current mode. TM 1 Genesys 750W/1500W-1U
