06201202 TE Connectivity

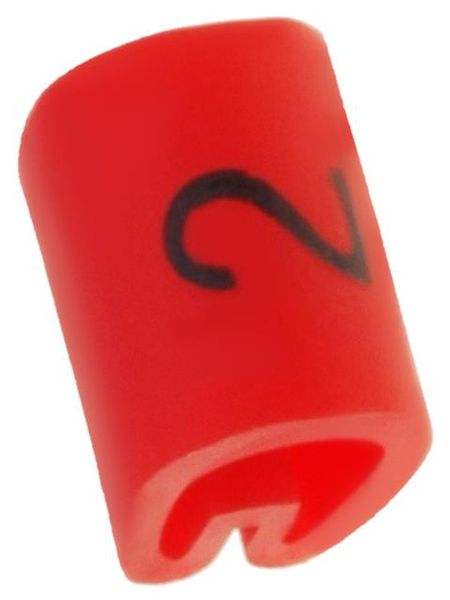

TECHNICAL DATA SHEET TE Document: TTDS-026 Issue: 2 Date: March 2014 Z-Type Markers Z-Type markers are individual push-on markers used to identify wires and small cables permanently. The markers are manufactured using PVC and designed with an expanding profile, enabling each marker to accommodate a wide range of wire/cable sizes. Z-Type markers are a simple, cost-effective solution for many commercial wire identification applications. The markers are supplied either straight cut or chevron cut. The chevron cut option ensures the markers remain aligned. Standard Z-Type markers are yellow or white with black legends and can be supplied as loose pieces packed in boxes, or on reels. Color coded markers are also available. Suitable for industrial applications. KEY FEATURES TEMPERATURE RATING Self-extinguishing. Operating Temperature Range -45C to 70C (-40F to 158F) Resistant to key Industrial fluids, including those used in Mass transit, Aviation and Military (defined by RW-2535). ENVIRONMENTAL Nine sizes covering wire diameters from Information and a downloadable declaration covering RoHS and 1.5mm to 12.7mm (0.06 inches to 0.5 REACH compliance can be found at the TE Product Compliance inches). Support Centre: TECHNICAL DATA SHEET TE Document: TTDS-026 Issue: 2 Date: March 2014 Z-Type Markers AVAILABLE FORMATS CHEVRON CUT MARKER 100mm nominal LENGTH 4 140.0 STRAIGHT CUT 0.25mm nominal thickness APPLICATOR DETAIL MARKER DETAIL ORDERING INFORMATION Order Code Order Code Marker Recommended cable Marker length Applicator Pack Applicator order Straight cut Chevron cut size diameter size code Quantity code mm inches mm inches 0580 1151 5 1.5 2.0 0.06 0.08 4.5 0.177 - 1000 - 0581 1152 7 2.0 3.2 0.08 0.13 4.5 0.177 1 1000 12510000 0615 1153 9 2.5 4.0 0.10 0.16 4.5 0.177 2 1000 12520000 0616 1154 11 2.9 4.7 0.11 0.19 4.5 0.177 3 1000 12530000 0617 1155 13 3.4 5.7 0.13 0.22 4.5 0.177 4 1000 12540000 0618 1156 15 3.8 6.3 0.15 0.25 4.5 0.177 5 1000 12550000 0620 1157 18 4.3 6.9 0.17 0.27 4.5 0.177 6 500 12560000 0622 1158 23 5.5 - 8.9 0.22 - 0.35 6.0 0.236 - 500 - 0624 1159 35 7.9 - 12.7 0.31 - 0.50 6.0 0.236 - 250 - PACKAGING CODE 1 Box 3 Reel PACKAGING OPTIONS (CHEVRON AND STRAIGHT CUT) White marker with black legend Boxes, reels Yellow marker with black legend Reels Color coded Boxes COLOR CODE Code Marker color Ink color Code Marker color Ink color Code Marker color Ink color 0 Black White 4 Yellow Black 8 Grey Black 1 Brown White 5 Green Black 9 White Black 2 Red Black 6 Blue Black 3 Orange Black 7 Violet Black 2014 Tyco Electronics Corporation, a TE Connectivity Ltd. Company Class I Data Classification - See Policy TEC-02-04 Page 2 of 3 All Rights Reserved Indicates Change
