1-601966-3 TE Connectivity

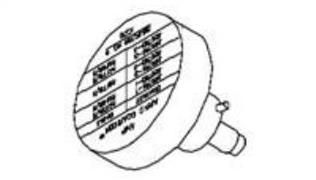

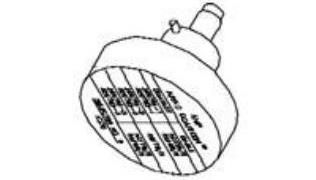

Revised: July 2012 Tools for Screw-machined Contacts AF8 601967-1 AF8 M22520/1-01 Crimp Tool without Turret Image representative of type only 2031846-1 WA27F (Pneumatic AF8) without Turret Features: 4/8 indent Crimp to Military standard Ratchet mechanism ensures complete crimp cycle 8 Position Dial select Indent Depth control Many Turrets available Ergonomic non-slip handles AF8 - Turret Accurately positions Contacts in the Tool Image representative of type only Features: Data plate shows compatible Contacts and settings Use in: 601967-1 - AF8 Base Tool without Turret 2031846-1 - Pneumatic AF8 (WA27F) without Turret Part Number Description mm (AWG) or other 601967-5 Universal Head UH2-5 M22520/1-05 601967-9 Turret TH45 0.15 - 1.5 26-16 601967-2 Turret TH1A M22520/1-02 for ARINC contacts 0.15 - 4.0 26-12 1-601967-2 Single Position Head TP465 M22520/1-11 for M39029 2.5 - 4.0 14-12 601967-4 Turret TH4 M22520/1-03 for MS17803 MS21097 OSI2814 contacts 0.15 - 1.5 26-16 601967-7 Turret TP85 M22520/1-07 for MS18232 MS18233 contacts RG178/U RG196/U 601967-3 Turret TH163 M22520/1-04 for MS27490 MS27655 0.2 - 4.0 24-12 601967-8 Turret TH199S M22520/1-08 for MS3343 MS90460 MS90461 contacts 0.14 - 4.0 26-12 1-601967-6 Turret TH502 for Multimate TYPE II Size 16 Pin Contacts 0.03 - 2.5 32-14 1-601967-5 Turret TH501 for Multimate TYPE II Size 16 Socket Contact 0.03 - 2.5 32-14 601967-6 Turret TP45 M22520/1-06 for OSI2814 type M size 16 & 22 0.14 - 1.5 26-16 1-601967-1 Turret TH128 for Type II contacts 2.5 - 4.0 14-12 where listed, only popular tools show - please use our online search for the latest information: Page 66 Revised: July 2012 Tools for Screw-machined Contacts AFM8 601966-1 AFM8 M22520/2-01 Crimp Tool without Positioner Image representative of type only 2031845-1 WA22 (Pneumatic AFM8) without Positioner Features: 4/8 indent Crimp to Military standard Ratchet mechanism ensures complete crimp cycle 8 Position Dial select Indent Depth control Many Positioners available Ergonomic non-slip handles AFM8 - Positioner Accurately positions Contacts in the Tool Image representative of type only Features: Data plate shows compatible Contacts and settings Use in: 601966-1 AFM8 - Base Tool without Positioner 2031845-1 WA22 - Pneumatic version without Positioner Part Number Description mm (AWG) or other 1-601966-0 Positioner K328 2-601966-8 Positioner K370 for ARINC 404 COAXICON RG316/U 188/U RG179/U RG178/U 196/U 601966-8 Positioner K267 M22520/2-23 for ARINC 404 Contacts 0.12 - 0.4 26-22 601966-7 Positioner K370 M22520/2-12 for ARINC COAXICON size 15 contacts RG178 RG179 RG188 RG196 RG316 1-601966-6 Positoiner K345 for ARINC COAXICON size 5 contacts .141Semi rigid RG58C RG180B RG188 RG223 2-601966-6 Positioner K397 for ARINC COAXICON size 7 contacts RG188 1-601966-7 Positoiner K344 for ARINC COAXICON size 7 contacts RG58C RG188 601966-5 Positioner K13-1 M225202/2-08 for ARINC size 20 Contacts 0.2 24 601966-6 Positioner K42 M22520/2-09 for ARINC size 22 Pin Contacts 0.4 - 0.3 22-28 966254-1 Positioner for Coaxicon MCX Straight Plugs 1-601966-5 Positoiner K287 M22520/2-11 for M39029/1-100 1-101 2-105 3-108 0.15 - 0.6 26-20 2-601966-0 Positioner K338 M22520/2-13 for M39029/16&18 contacts 0.03 - 0.09 32-28 2-601966-2 Positioner K339 M22520/2-16 for M39029/17 contacts 0.03 - 0.09 32-28 1-601966-1 Positioner K151 M22520/2-04 for MS18232 MS18233 MS18265 MS18266 RG178/U RG196/U contacts 1-601966-4 Positoiner K43 M22520/2-10 for MS27490 MS27491 MS27492 MS27493 0.2 - 0.6 24-20 MS27494 MS27655 contacts 1-601966-3 Positioner K40 M22520/2-07 for MS27490 MS27655 contacts 0.08 - 0.4 28-22 601966-3 Positioner K60S M22520/2-03 for MS3343 MS90461 contacts 0.03 - 0.4 32-22 601966-4 Positioner K41 M22520/2-06 for Size 22 Socket Contacts 0.4 - 0.3 22-28 601966-2 Positioner K1S M22520/2-02 for TERMI-BLOCK contact. 0.6 - 0.15 20-26 1579003-1 Positioner for TRIAD-01 1490038-1 Positioner K789 for Winchester 100-54020S 100-54028S contacts 0.06 - 0.6 30-20 where listed, only popular tools show - please use our online search for the latest information: Page 67
