5 kV
Features:

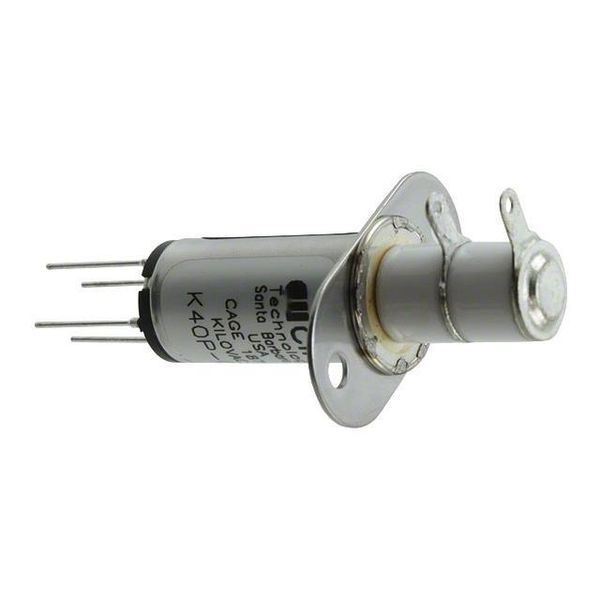

Kilovac K40P Make & Break Load Switching
Vacuum dielectric for power switching low
current loads
Fast, 1 millisecond operate time
Long life: 10 million cycles
35 Amps continuous current rating at dc;
8 Amps at 32 mHz
Ideal for high power antenna couplers
Meets requirements of MIL-R-83725
Features:
Kilovac K40P364 Make & Break Load Switching
Double sided terminals for ease of connection
to bus bar
Vacuum dielectric for power switching low
current loads
Fast switching, high current capabilities
Small and lightweight
PRODUCT SPECIFICATIONS COIL DATA
Nominal, Volts dc
Part Number K40P 26.5
Unit
Contact Arrangement .......................................................... SPST-Latching
Latch & Reset, Volts dc, Max. 16
Contact Form........................................................................ P
Drop-Out, Volts dc N.A.
Test Voltage (dc or 60Hz) ................................................... 6
kV Peak
Coil Resistance (Ohms 10%) 80
Rated Operating Voltage .....................................................
kV Peak Ratings listed are for 25C, sea level conditions
dc or 60 Hz ..................................................................... 5
2.5 MHz ........................................................................... 4.5 PART NUMBER SELECTION
16 MHz ............................................................................ 3.5
Sample Part No. K40 P 332
32 MHz ............................................................................ 2.8
Contact Form
P = SPST-Latching
Continuous Carry Current , Maximum...............................
Amps
Coil Voltage
dc or 60 Hz ..................................................................... 35
3 = 26.5 Vdc, Bus Wire
2.5 MHz ........................................................................... 21
High Voltage Connections
3 = Solder Connection
16 MHz ............................................................................ 14
6 = Double Sided Solder Connection
32 MHz ............................................................................ 8
Mounting*
Coil Hi-Pot (V RMS, 60 Hz) ........................................... 500 2 = Flanged
4 = Standard
Contact Capacitance ............................................................
pF
* See page 58 for mounting methods
Between Open Contacts ................................................. 1.2
Open Contacts to Ground .............................................. 1.2
Contact Resistance, Maximum........................................... 0.02
Ohms
Operate Time, Maximum..................................................... 1
ms
Release Time, Maximum..................................................... N/A
ms
Shock, 11 ms 1/2 Sine ........................................................ 50
G's Peak
Vibration, 30 Gs Peak ......................................................... 55-2000
Hz
o
Operating Ambient Temperature Range ............................ -55 to +125
C
6
Mechanical Life (Operations x 10 ) .................................... 10
cycles
1
Weight, Nominal .................................................................. oz
29 CII Technologies / P.O. Box 4422 / Santa Barbara, CA 93140 / ph 805.684.4560 / fax 805.684.9679 / e-mail info@kilovac.com / website www.ciitech.com
