1SNK505062R0000 TE Connectivity

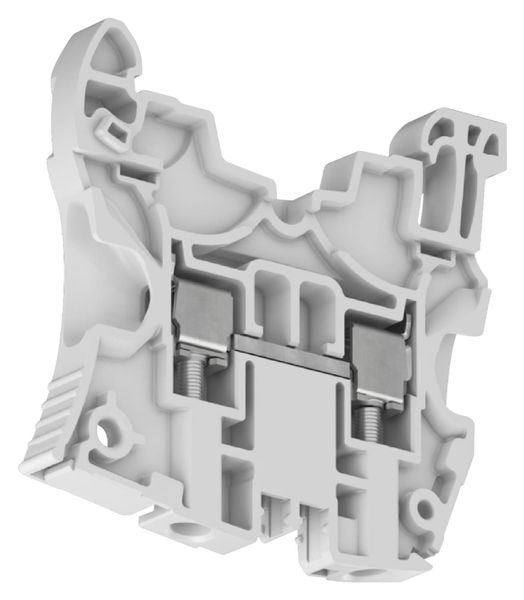

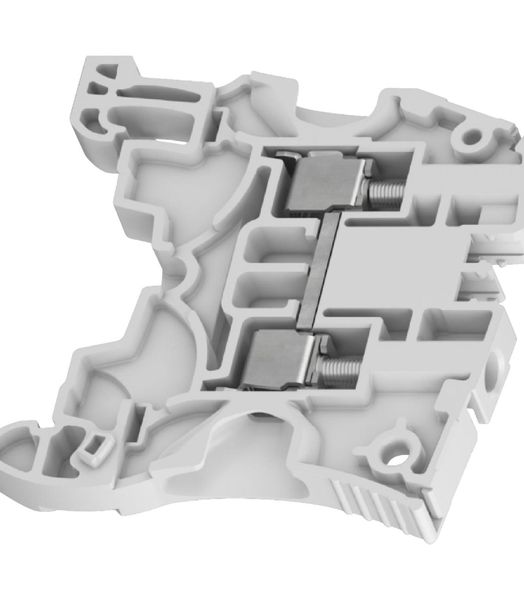

Technical Datasheet 1SNK161001D0201 Catalogue Page 1SNK161001S0201 ZS4 Screw Clamp Terminal Blocks Feed-through Save space by connecting 1SNK161001F0014 conductors up to 4 mm (CB certified) 12 AWG in just 5.2 mm 0.205 in spacing. 1SNK500000F0000 3D CAD outline drawings available on Control Product 3 portal 4 mm 1SNC500496 Screw Clamp Terminal Blocks F0000 12 AWG 5.2 mm 0.205 in Spacing Ordering Details (ing) Color Type Order Code EAN Code Weight Pack (1 pce) g Grey Grey ZS4 1SNK505010R0000 3472595050109 50 8.77 Blue Blue ZS4-BL 1SNK505020R0000 3472595050208 50 8.77 Orange Orange ZS4-OR 1SNK505030R0000 3472595050307 50 8.77 Yellow Yellow ZS4-YL 1SNK505060R0000 3472595050604 50 8.77 Green Green ZS4-GN 1SNK505061R0000 3472595050611 50 8.77 Red Red ZS4-RD 1SNK505062R0000 3472595050628 50 8.77 Purple Purple ZS4-PR 1SNK505063R0000 3472595050635 50 8.77 Brown Brown ZS4-BR 1SNK505064R0000 3472595050642 50 8.77 White White ZS4-WH 1SNK505065R0000 3472595050659 50 8.77 Black Black ZS4-BK 1SNK505066R0000 3472595050666 50 8.77 Declarations and Certicates CE CB RoHS USR CNR CSA GOST R ATEX IECEx BR-Ex e II USR CNR Haz Loc BV RINA DNV ATEX DeclarationDeclarations and Certicates CE CE 1SND225081C10* CB CB 1SND161017A02* RoHS RoHS 1SND230491F02* USR CNR USR CNR 1SND161040A02* CSA CSA 1SND161070A02* GOST R GOST R 1SND161005A11* ATEX ATEX 1SND162004A17* IECEx IECEx 1SND162005A17* BR-Ex e II BR-Ex e II 1SND161042A02* USR CNR Haz Loc USR CNR Haz Loc 1SND161047A02* BV BV 1SND161073A02* RINA RINA 1SND161088A02* DNV DNV 1SND161087A02* Atex Declaration Atex Declaration 1SND225085C10* Explosive Atmosphere: ATEX Classification Group Category Protection Method IM2 II 2 GD Ex eb I/II/IIIC Ex e: increased security In the presence of explosive dust atmosphere, terminal blocks are to be installed in certified enclosure II 2D General Information The following information must be strictly adhered to in order to guarantee the terminal block electrical, mechanical and environmental performance. Protection IEC 60947-1 IP20 NEMA 1 Rail TH35-7.5, TH35-7.5, TH35-15 TH35-15 Wire stripping length Denudage 10.5 mm 0.413 in Screw clamp Screw rail contact Disconnect device (Maximum value) Operating tool Flat screwdriver Flat 3.5 mm 0.138 in screwdriver Torque 0.6 N.m 5.31 lb.in Tete de vis- couple 0.1 N.m 0.885 lb.in Material Specifications Insulating material Polyamide CTI 600 V Flammability UL94 V0 NF F 16101 I2F2 Needle flame tesItEC 60615-11-5 Compliant Connecting capacity per clamp Screw clamp Norme IEC60947-7-1 UL1059 1 Rigid - Solid / Stranded conductor Value 0.2 ... 4 mm 24 ... 12 AWG Norme IEC60947-7-1 1 Flexible conductor Value 0.22 ... 4 mm Norme Manufacturer data Manufacturer data 1 Flexible conductor with non insulated ferrule Value 0.22 ... 4 mm 24 ... 12 AWG 1 Flexible conductor with insulated Norme Manufacturer data Manufacturer data ferrule Value 0.22 ... 2.5 mm 24 ... 14 AWG A3-B3 3 mm Gauge IEC 60947-1 0.118 in Ferrule maximum outer diameter or conductor Ferrule Manufacturer data 4.7 mm 0.185 in insulation maximum outer diameter TheConnecting capacity with ferrul data is guaranteed with ABB crimping tool PS-3 (crimping capacity up to 10 mm). As part of its on-going product improvement, ABB reserves the right to modify the characteristics or the products described in this document. The information given is not contractual. For further details please contact the ABB company marketing these products in your country. 2 Technical Datasheet 1SNK161001D0201 ABB
