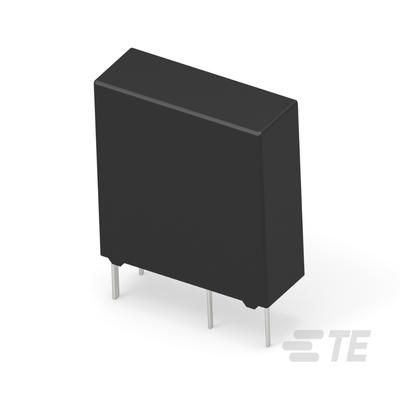

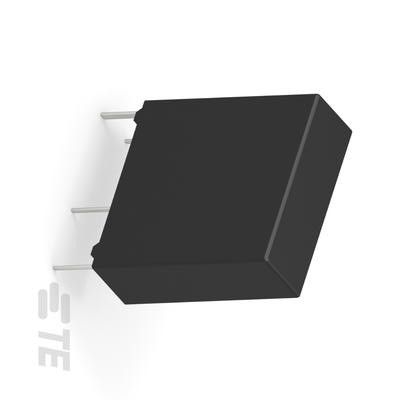

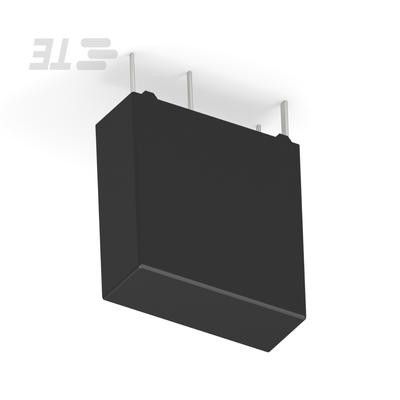

General Purpose Relays PCB Relays OEG Miniature PCB Relay PCJ n 1pole 3A/5A, 1 form A (NO) contact n Sensitive coil 200mW n Ambient temperature 85C n RoHS compliant (Directive 2002/95/EC) n WG version : Product in accordance to IEC60335-1 Typical applications F0276-C Home appliances VUC Approvals Coil Data VDE 40009151, UL E58304, CSA LR48471-211, CQC 03001008593 Coil voltage range 3 to 24VDC Technical data of approved types on request Coil insulation system according UL Standard Version: class 105 (A) Contact Data WG version: class 155 (F) Contact arrangement 1 form A (NO) Rated voltage 250VAC Coil versions, DC coil Max. switching voltage 30VDC, 250VAC Coil Rated Operate Release Coil Rated coil Rated current 3A/5A code voltage voltage voltage resistance power Switching power 1,250VA, 150W VDC VDC VDC 10% mW Contact material AgNi 03 3 2.25 0.15 45 200 Min. recommended contact load 100mA, 5VDC 05 4 3.75 0.25 125 200 Initial contact resistance 100m at 1A, 6VDC 06 6 4.50 0.3 180 200 -1 Frequency of operation, with/without load 1800/18000h 09 9 6.75 0.45 405 200 Operate/release time max. 10/4ms 12 12 9.00 0.6 720 200 Electrical endurance 18 18 13.50 0.9 1620 200 3 3A version: 250VAC, resistive, 100x10 ops. 24 24 18.00 1.2 2880 200 3 5A version: 250VAC, resistive, 100x10 ops. All figures are given for coil without pre-energization, at ambient temperature +23C. Contact ratings Type Contact Load Cycles IEC 61810 3 PCJ form A (NO) 5A,250VAC, cos=1, 85C 100x10 3 PCJ form A (NO) 2A,250VAC, cos=0.6 85C 100x10 3 PCJ form A (NO) 3A,250VAC, cos=1, 105C 100x10 UL 508 3 PCJ form A (NO) 5A,250VAC, general use, 85C 6x10 3 PCJ form A (NO) 3A,250VAC, cos=1, 85C 100x10 3 PCJ form A (NO) 3A,250VAC, cos=1, 105C 100x10 6 Mechanical endurance >10x10 operations Insulation Data Initial dielectric strength between open contacts 750V rms between contact and coil 4000V rms Initial surge withstand voltage between contact and coil 10000V rms Initial insulation resistance 1000M Clearance/creepage between contact and coil 7.5/8mm 1 09-2011, Rev. 0911 Datasheets and product specification Datasheets and product data is subject to the Datasheets, product data, Definitions sec- www.te.com according to IEC 61810-1 and to be used terms of the disclaimer and all chapters of tion, application notes and all specifications 2011 Tyco Electronics Corporation, only together with the Definitions section. the Definitions section, available at are subject to change. a TE Connectivity Ltd. company General Purpose Relays PCB Relays OEG Miniature PCB Relay PCJ (Continued) Other Data PCB layout / terminal assignment Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content Bottom view on solder pins refer to the Product Compliance Support Center at www.te.com/customersupport/rohssupportcenter Ambient temperature -40 to 85C (105C) Category of environmental protection IEC 61810 RTII - flux pr oof, RTIII - wash tight S=511-AA Vibration resistance (functional) 10 to 50Hz, 1.5mm double amplitude Shock resistance (functional) 2 IEC 60068-2-27 (half sine) 98m/s , 11ms Terminal type PCB-THT Weight 4g Resistance to soldering heat THT S0511-AB IEC 60068-2-20 260C/5s Packaging/unit box/1000 pcs. Dimensions S0512-C Product code structure Typical product code PCJ 1 12 D 3 M 301 Type PCJ Miniature PCB Relay PCJ Version 1 Single contact Coil Coil code: please refer to coil versions table Coil power D Standard 200mW Contact material 3 AgNi Contact arrangement M 1 form A (NO) contact Sealing Blank Flux proof H Wash tight* Suffix 301 Standard version WG Product in accordance with IEC 60335-1 (domestic appliances)* *) Wash tight WG version on request 2 07-2011, Rev. 0911 Datasheets and product specification Datasheets and product data is subject to the Datasheets, product data, Definitions sec- www.te.com according to IEC 61810-1 and to be used terms of the disclaimer and all chapters of tion, application notes and all specifications 2011 Tyco Electronics Corporation, only together with the Definitions section. the Definitions section, available at are subject to change. a TE Connectivity Ltd. company
