234A111-25-00-0 TE Connectivity

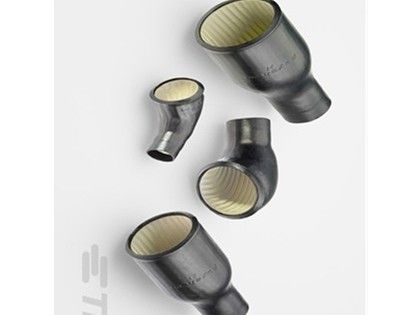

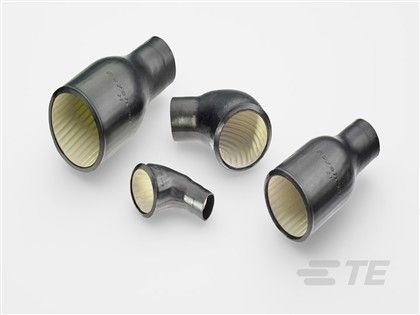

Molded Parts Materials -3 Semi-Rigid Modified Polyolefin Product Facts Heat-shrinkable Semi-Rigid Flame Retardant Good resistance to fluids and heat 4 Applications Installation Operating Temperature Range TE molded parts in -3 -3 molded parts will shrink -55C to 135C material are designed for on the application of heat [-67F to 275F] use in general harnessing above 125C [257F]. applications where tough- Recommended installation ness is required and temperature: 150C [302F] systems are occasionally exposed to fluids or heat. The adhesive-lined parts provide excellent sealing and strain relief at connec- tor-cable terminations and transitions. A wide range of shapes are available in this material. The standard color is black. Available in: Americas Europe Asia Pacific 4-25 Catalog 1654025 Dimensions are shown for Dimensions are in millimeters Canada: +1 (905) 475-6222 UK: +44 (0) 800-267666 Revised 5-12 reference purposes only. unless otherwise specified. Mexico/C. Am.: +52 (0) 55-1106-0800 France: +33 (0) 1-3420-8686 Specifications subject Latin/S. Am.: +54 (0) 11-4733-2200 Netherlands: +31 (0) 73-6246-999 www.te.com to change. USA: +1 (800) 522-6752 Germany: +49 (0) 6251-133-1999 China: +86 (0) 400-820-6015Materials -3 (Continued) Specifications/Approvals Military TE UL SAE-AS81765/1, Type I 224, File E85381 Def. Stan. 59-97 Issue 3 Type DA (Europe) RT-301 BS-G-198-5-DA (Europe) SAE-AS85049/ 140, 141, 142 (material designator A) Product Characteristics Specification Requirements Test Method Tensile strength 10.5 MPa (min.) ISO 37; ASTM D 412 Ultimate elongation 250% (min.) ISO 37; ASTM D 412 Physical 2% secant modulus 80160 MPa ASTM D 882 Specific gravity 1.4 (max.) ISO 1183; ASTM D 792 Heat aging for 168 h at 175C [347F] Ultimate elongation 150% (min.) ISO 188, ISO 37 Heat shock for 4 h at 225C [437F] No dripping, cracking, or flowing ASTM D 2671 Thermal Low-temperature flex at -55C [-67F] No cracking during mandrel bend RK-6703, CL 2.7: RT-301 Sec. 4.3.4 Flammability Self-extinguishing RK-6703, CL 2.8: ASTM D 635 Electrical Electric strength 8 MV/m (min.) IEC 243 Water absorption 0.5% (max.) ISO 62 Tensile strength 8.5 MPa (min.) ISO 1817 and ISO 37 Aviation fuel F40 Ultimate elongation 200% (min.) after immersion for 24 h at 23C [73F] Tensile strength 8.5 MPa (min.) ISO 1817 and ISO 37 Lubricating oil O-149 Fluid resistance Ultimate elongation 200% (min.) after immersion for 24 h at 23C [73F] Phosphate ester hydraulic fluid Tensile strength 8.5 MPa (min.) ISO 1817 and ISO 37 (DTD 900/4881A) Ultimate elongation 200% (min.) after immersion for 24 h at 23C [73F] 4-26 Catalog 1654025 Dimensions are shown for Dimensions are in millimeters Canada: +1 (905) 475-6222 UK: +44 (0) 800-267666 Revised 5-12 reference purposes only. unless otherwise specified. Mexico/C. Am.: +52 (0) 55-1106-0800 France: +33 (0) 1-3420-8686 Specifications subject Latin/S. Am.: +54 (0) 11-4733-2200 Netherlands: +31 (0) 73-6246-999 www.te.com to change. USA: +1 (800) 522-6752 Germany: +49 (0) 6251-133-1999 China: +86 (0) 400-820-6015
