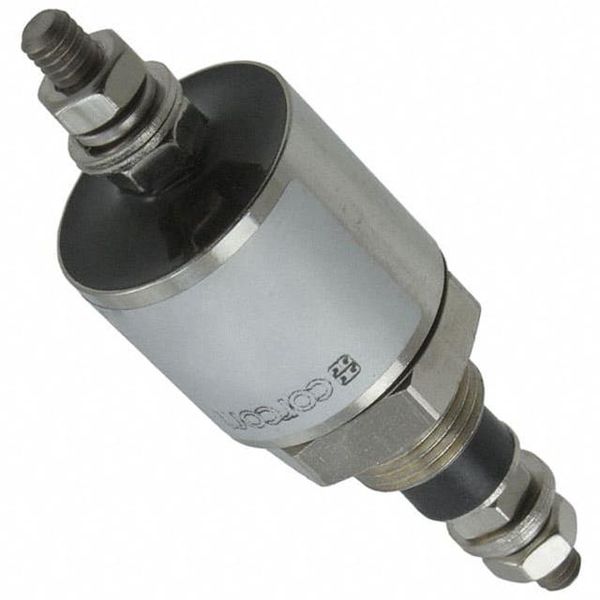

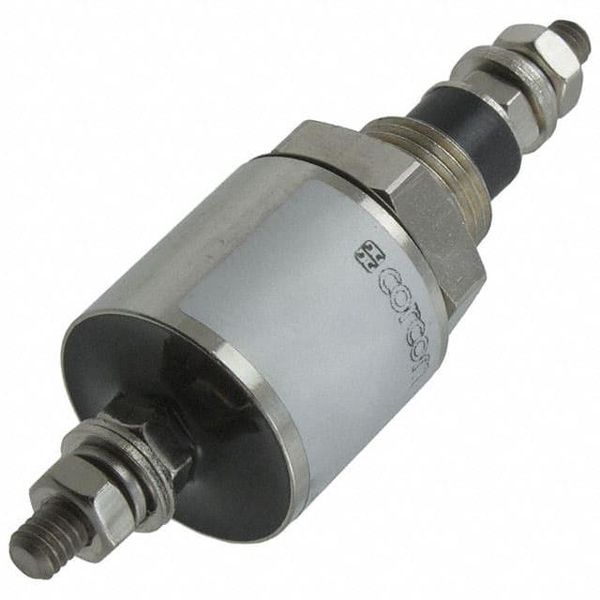

32AFC6-H TE Connectivity

Catalog: 1654001 Corcom Product Guide Issue Date: 06.2011 AC Feedthrough Capacitors Class Y2 AFC Series Component Recognized by UL to US and Canadian Requirements AFC Series Specications Rated Voltage (max): 250 VAC AC feedthrough capacitors Operating Frequency: 50/60 Hz Current ratings from 10 to 300A Rated Current: 10 to 300A Designed to meet the very stringent safety Test Voltage (two seconds): 5000 VDC requirements of EN132400 class Y2 including the 5000V pulse test Capacitor Class (EN132400): Designed to meet Y2 Pulse Test (EN132400): 5000V Peak Custom versions available Insulation Resistance (within 1 minute): For C < 0.33F, R> 15000M Ordering Information For C > 0.33F, RC(M*F)>5000s Operating Ambient Temperature Range 10 AFC6 A (at rated current I ): r 10 to 200A: -40C to +60C Filter ID 250 & 300A: -40C to +40C See Table Category Temperature Range: -40C to +85C AFC Series Screw Terminals Current Derating Above Ambient: 10-200A: For temperature, = R (85- )/25 Current Rating (in A) 250 & 300A: For temp., = R (85- )/45 Climatic Category: 40/85/21 Filter Options / Specications MTBF: > 10 million hours typical Max. Leakage Insulating Materials Flammability Rating: UL94V-0 Filter ID Value (nF) Current (mA)* Case & Terminal Material: Nickel Plated Brass A 2.2 0.21 B 4.7 0.44 C 10 0.94 F 33 3.1 G 47 4.4 H 100 9.4 K 220 21 N 470 44 P 1000 94 234 Dimensions are in inches and millimeters unless otherwise specied. Values in italics For email, phone or live chat, please go to te.com/help are metric equivalents. Dimensions are shown for reference purposes only. corcom.com Specications subject to change.Feedthrough Filters and Capacitors Catalog: 1654001 Corcom Product Guide Issue Date: 06.2011 AC Feedthrough Capacitors Class Y2 (continued) AFC Series Case Style Case Dimensions Resin Fill T2 (Mounting thread) A B C D E F T1 (Terminal thread) Part No. 10AFC6-A 10AFC6-B D B C E F 16AFC6-B 16AFC6-C A 16AFC6-G T1 Terminal Thread 16AFC6-H Torque Part No. Thread max. in.lb. 20AFC6-B M3 4 10AFC6-A/B 32AFC6-B 16AFC6-B/C/G/H 32AFC6-C M4 11 20AFC6-B 32AFC6-B/C/F/G/H 32AFC6-F 32AFC6-G M6 22 63AFC6-C/G/H M8 44 100AFC6-G/H/K/N 32AFC6-H M10 71 200AFC6-H/K/N/P 63AFC6-C M12 97 250AFC6-H/K/N/P 63AFC6-G M16 177 300AFC6-H/K/N/P 63AFC6-H 100AFC6-G 5 T2 Mounting Thread 100AFC6-H Torque Part No. Thread 100AFC6-K max. in.lb. 200AFC6-H M10 x 1 27 10AFC6-A/B 200AFC6-K 200AFC6-N 16AFC6-B/C/G 200AFC6-P M12 x 1 35 20AFC6-B 32AFC6-B/C/G/F 250AFC6-H 16AFC6-H 250AFC6-K M16 x 1 62 32AFC6-H 250AFC6-N 63AFC6-C/G/H 250AFC6-P M20 x 1 89 300AFC6-H 100AFC6-G/H 300AFC6-K 100AFC6-K/N 300AFC6-N M24 x 1 124 200AFC6-H/K 300AFC6-P M27 x 1.5 142 200AFC6-N/P 235 Dimensions are in inches and millimeters unless otherwise specied. Values in italics For email, phone or live chat, please go to te.com/help are metric equivalents. Dimensions are shown for reference purposes only. corcom.com Specications subject to change.
