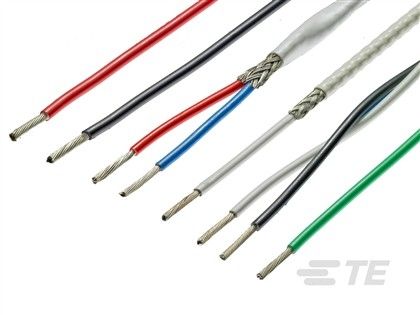

44/7024 SPECIFICATION CONTROL DRAWING Title Date Revision ONE CONDUCTOR, SHIELDED,JACKETED, GENERAL PURPOSE, 600 VOLT 11-1-05 E This specification sheet forms a part of the latest issue of Raychem Specification 44. COMPONENT WIRES 44/7004 SHIELD TIN-COATED COPPER JACKET RADIATION-CROSSLINKED, MODIFIED PVF 2 CABLE CONSTRUCTION DETAILS PART CONDUCTOR SHIELD JACKET THICKNESS OUTSIDE DIAMETER NOMINAL NUMBER SIZE SIZE (inches) (inches) WEIGHT 1/ (AWG) (AWG) (lb/1000 ft.) MINIMUM NOMINAL NOMINAL MAXIMUM 44/7024-26-* 26 40 .005 .006 .059 .064 3.6 44/7024-24-* 24 40 .005 .006 .063 .068 4.3 44/7024-22-* 22 40 .005 .006 .068 .073 5.8 44/7024-20-* 20 38 .006 .007 .079 .084 7.8 ADDITIONAL REQUIREMENTS LIFE CYCLE: 185 3C Except as specified above, this construction shall meet all the requirements of Raychem Specification Sheet 44A111X. PART NUMBER: The * in the part numbers above shall be replaced by color code designators with a slash separating the component wire colors and a dash separating the component wire colors from the jacket color. 1/ Example: AWG 20, white component wire white jacket: 44/7024-20-9-9 Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer. 1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER, AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902.. MAY BE REPLACED BYAxx.) OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER. Wire & Cable DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL. 501 Oakside Avenue Redwood City, CA 94063-3800 Page 1 of 1 THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN. Phone: 1-800-227-8816 REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID. Fax: 1-650-361-6297 2005 Tyco Electronics Corporation. All rights reserved. X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Hook-up Wire category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 002333-000 M81044/12-22-6 M81044/9-8-9 743094-001 81044/12-18-9CS3209 8538-009-1000 ATFC0311-20-5D EF5675-000 BFWUL3239-24-PINK 22759/34-16-9CS2621 22759/42-24-9CS2620 933205-000 284711-000 961473-000 30802-009-250 99M0111-20-2 A00594-000 190571-000 22759/41-12-9CS2620 22759/41-16-9CS2620 22759/43-10-9CS2873 265925-000 CM9524-000 31510-010-250 31514-009-500 34401-010-250 34402-010-500 M81044/9-4-9 391441-BK007 400R0111-10-9 431660-000 ATFC0311-20-0 44/7024-26-9-9 44A0112-22-9CS3184 456157-000 BFW-UL3239-24-WHITE 55/0312-26-6L-CS2570 55A0811-12-9 55A6087-20-9-9-9 55A6315-22-9- 9CS2632 55A7400-22-9/96-9CS2275 55A9002-30-5 55PC0211-20-5CS2502 55PC0811-6-9CS2637 55PC1211-22-9-9CS3278 C07683-000 32820-009-5000 34020-008-2000 391850-BK199 392075-RD199
