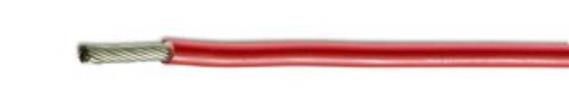

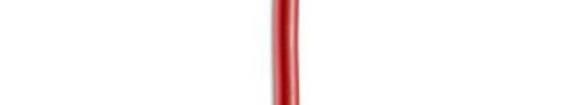

44A0111-24-2 TE Part 2820423009 TE Internal : 44A0111-24-2 44A0111-24-2 ACTIVE Raychem TE Part 2820423009 TE Internal : 44A0111-24-2 View on TE.com> Wire & Cable > Hook Up Wire Cable Type: Spec 44 Voltage Rating: 600 V Insulation Material: Modified Radiation Cross-linked PVDF Conductor Material: Tin-Coated Copper Wire Size: 24 AWG Features Product Type Features Cable Style Primary Product Type Cable Product Classification Cable - High Performance - Spec 44, 55 & RCW Cable Type Spec 44 Configuration Features Number of Conductors 1 Number of Strands 19 Electrical Characteristics Voltage Rating 600 V Body Features Wire Color Red Insulation Material Modified Radiation Cross-linked PVDF Conductor Material Tin-Coated Copper Dimensions Overall Outside Diameter 1.02 mm .04 in Wire Diameter 1.02 mm .04 in Conductor Diameter .64 mm .025 in Strand Size 36 AWG Wire Size 24 AWG 08/22/2019 03:33PM Page1 For support call+1 800 522 6752 44A0111-24-2 TE Part 2820423009 TE Internal : 44A0111-24-2 Wire Size 24 AWG Usage Conditions Operating Temperature Range -65 150 C Other Wire Source United Kingdom Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JAN 2019 (197) Candidate List Declared Against: JAN 2019 (197) Halogen Content Out of Scope - excluded from Halogen requirements Solder Process Capability Not applicable for solder process capability Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TEs information on SVHC in articles for this part number is still based on the European Chemical Agency (ECHA) Guidance on requirements for substances in articles(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An Article Always An Article) stating that, in case of complex object, the threshold for a SVHC must be applied to both the product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling based on the new ECHA Guidance on requirements for substances in articles (June 2017, version 4.0) and will be updating its statements accordingly. Compatible Parts 08/22/2019 03:33PM Page2 For support call+1 800 522 6752
