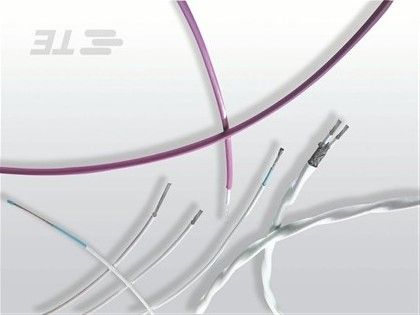

SCD 55PC1122 SPECIFICATION CONTROL DRAWING Title Date Revision TWO CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT 5-14-15 C This specification sheet forms a part of the latest issue of Raychem Specification 55PC. COMPONENT WIRES - 55PC0112 SHIELD - SILVER-COATED COPPER JACKET - RADIATION-CROSSLINKED, MODIFIED ETFE CABLE CONSTRUCTION DETAILS JACKET THICKNESS OUTSIDE DIAMETER WEIGHT CONDUCTOR SHIELD (inch) (inch) (lbs/1000 ft.) PART NUMBER SIZE SIZE 1/ LOWER TARGET LOWER TARGET UPPER TARGET UPPER (AWG) (AWG) SPEC LIMIT WALL SPEC LIMIT VALUE SPEC LIMIT VALUE SPEC LIMIT 55PC1122-24-* 24 38 .0050 .0065 .097 .101 .105 8.55 8.91 55PC1122-22-* 22 38 .0050 .0065 .109 .114 .119 11.10 11.60 55PC1122-20-* 20 38 .0055 .0070 .126 .130 .134 14.95 15.44 55PC1122-18-* 18 38 .0055 .0070 .145 .149 .154 20.40 21.03 55PC1122-16-* 16 38 .0055 .0070 .159 .164 .169 24.81 25.54 55PC1122-14-* 14 38 .0060 .0075 .189 .194 .199 35.52 36.41 55PC1122-12-* 12 38 .0060 .0080 .227 .233 .238 51.71 52.88 55PC1122-10-* 10 36 .0065 .0085 .280 .291 .302 81.65 85.95 55PC1122-8-* 8 36 .0070 .0090 .394 .415 .436 147.76 152.88 55PC1122-6-* 6 34 .0070 .0090 .486 .512 .538 229.27 236.76 CABLE RATINGS AND ADDITIONAL REQUIREMENTS TEMPERATURE RATING: 200C SHIELD COVERAGE: 85% (minimum) Maximum continuous conductor temperature VOLTAGE WITHSTAND (Post Environmental): VOLTAGE RATING: 600 volts (rms) at sea level 1000 volts (rms), 60 Hz, 1 minute CROSSLINKED VERIFICATION: 300 3C for 1 hour DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz 1/ PART NUMBER: JACKET COLOR: White preferred The in the part numbers above shall be replaced by color code JACKET ELONGATION AND TENSILE STRENGTH: designators with a slash separating the component wire colors and a Elongation, 50% (minimum) dash separating the component wire colors from the jacket color. 2 Tensile Strength, 5000 lbf/in (minimum) Example: AWG 22, red and blue component wires white jacket: JACKET FLAWS: 55PC1122-22-2/6-9 Spark Test, 1000 volts (rms) Impulse Dielectric Test, 6.0 kV (peak) Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer. 1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER, AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902.. MAY BE REPLACED BYAxx.) OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER. Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Raychem Wire & Cable DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL. 501 Oakside Avenue Page 1 of 1 Redwood City, CA 94063-3800 THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN. Phone: 1-800-227-8816 REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID. Fax: 1-650-361-6297 2013-2015 Tyco Electronics Corporation. All rights reserved.
