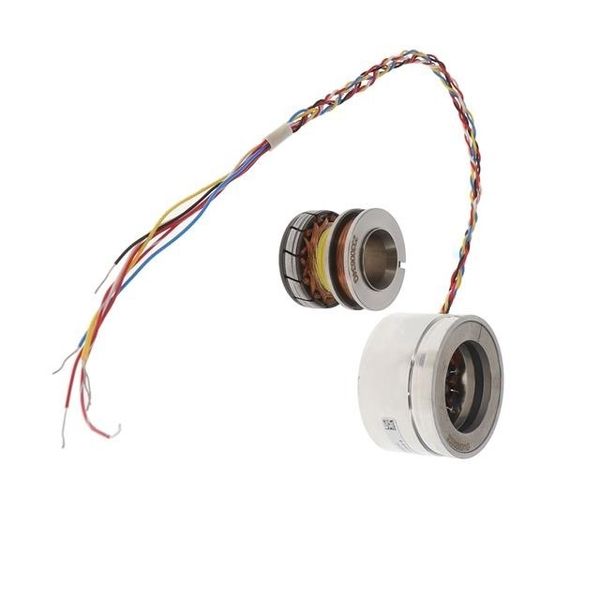

6-1393048-0 Rev. A 26 April 2017 DATA SHEET - HOLLOW SHAFT RESOLVER PN 6-1393048-0 V23401 T8002-B802 Description: Size 21 Shaft inner diameter mm 17,02 Speed - pair of poles - pp 1 Application Spec Test protocol 100% EOL testing, stored. Available up on request Electrical parameters (at 22C): Input voltage nom. Vrms 4 0 DC resistance R1R2 24 Frequency nom. kHz 5 0 R1R2 tolerance 2,4 Input current max mA 20 DC resistance S1S3 or S2S4 58 Transformation ratio rT 0,5 S1S3 or S2S4 tolerance 5,8 Transf. ratio tolerance % 5 Based on nominal Input voltage and Phase shift min -5 Phase shift max 5 Frequency Angular Error 7 Residual voltage max mV 15 300, AWG 26 Teflon Isolated Connect. Wire Lenght mm 3% Voltage: 500 (A) Measured between: 3% A: Winding R1-R2 and housing 250 (B) High Voltage test Time: 1s Winding S1-S3 and housing Winding S2-S4 and housing 5% Voltage: 500 (A, B) B: Windings S1-S3 and S2-S4 Isolation test 50) *+, Criterium: %. Ele.0 is when Winding Us2-s4 = 0 and Us1-s3 are in phase with Ur1-r2Zer setting: Function applies to the clockwise rotation of the rotor when looking at the (grooveless) transformer componnent from the top Transformation function rT cos rT Rotor Inertia approx. 20 . /0, 20.000 rpm Max. Rotational Speed Shock resistance 1.000 m/s2 (11ms sine) Vibration (0 2 kHz) 200 m/s2 -55C+150C Operating temp. 2015 TE Connectivity family of companies All Rights Reserved Indicates Change *Trademark. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.6-1393048-0 26 April 2017 DATE PN REV. DWN APP DS. REV 2015-06-25 A P. Lerchenfeld D. Ondrej 1 2017-04-26 A P. Lerchenfeld D. Ondrej 2
