7574444009 TE Connectivity

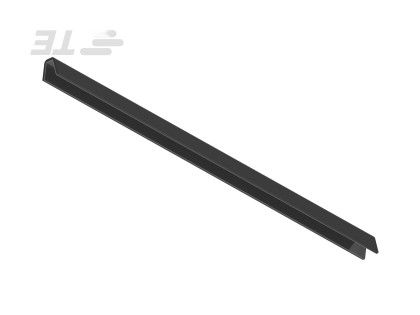

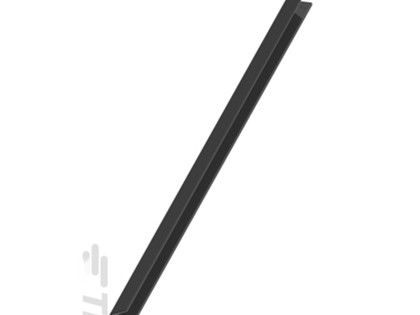

Heat-shrinkable Tubing RAYCHEM Tubing Products Rayrim Edging Material 1 Commercial Protective, Self-Adhering, Edging Material Product Facts Flexible to allow for protection of curved edges RoHS compliant Applications The flexible nature of the Installation product allows application Raychem Rayrim edging Minimum shrink to both internal and external material is an extruded strip temperature: 120C 248F radii, as well as straight internally coated with a heat edges, and the continuous Minimum full recovery activated adhesive, so that operating temperature temperature: 150C 302F on heating the profile of -55C to +80C -67F changes from a to a to 176F means that the Operating Temperature Range section and the adhesive product can give protection bonds to the substrate profile. under the most testing -55C to 80C circumstances. Manufactured from a -67F to 176F Raychem radiation cross- linked polyolefin material, the profile offers a clean and rapid means of covering metal, wood and glass edges for all-round protection. Specifications/Approvals Series Raychem Rayrim RK-6182 Available in: Americas Europe Asia Pacific 1-79 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666RAYCHEM Tubing Products Edging Material (Continued) Product Dimensions Size A (maximum) B (minimum) C (minimum) D (minimum) E (typical) NR6 0.6 0.024 0.5 0.020 3.5 0.138 0.8 0.032 1.25 0.049 NR7 1.0 0.039 0.9 0.035 4.8 0.189 1.6 0.063 1.25 0.049 NR8 2.0 0.079 0.9 0.035 6.6 0.260 2.5 0.098 2.25 0.089 NR9 4.2 0.165 0.9 0.035 13.5 0.532 4.5 0.177 2.20 0.087 Application Range Plate SWG Thickness Recommended minimum bend radius 30-24 0.31-0.56 0.012-0.022 10 0.394 23-16 0.61-1.63 0.026-0.064 15 0.591 15-10 1.83-3.25 0.072-0.128 20 0.787 9-5 3.66-5.38 0.144-0.212 25 0.984 Ordering Information Color Standard Black (-0) Size selection Always order the largest size that will shrink snugly on edge of the panel. Standard packaging 1.2-meter 4-foot lengths. Ordering description Specify product name, size number and color (for example, Rayrim-NR6-0). 1-80 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666
