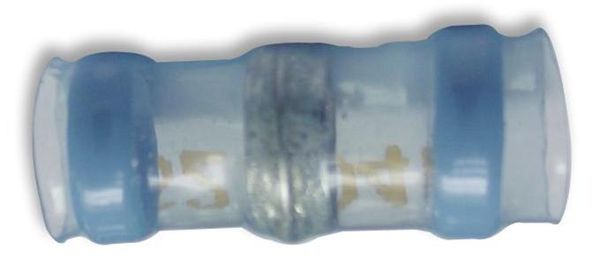

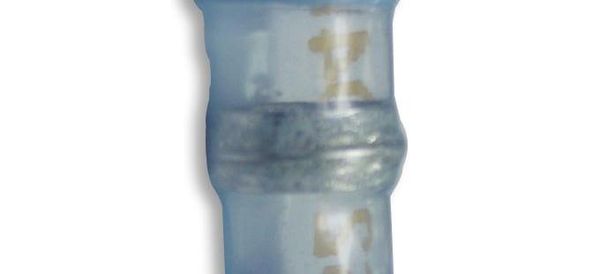

SPECIFICATION CONTROL DRAWING Product Rev. Product Dimensions Cable Dimensions Ident. Product L 1.75 B C D E F G Code Name min min max max min min (L 0.070) 16.50 1.90 2.65 1.90 2.65 0.90 0.50 SO63-1-W1-GA-9-100 N/C SO631R (0.650) (0.075) (0.105) (0.075) (0.105) (0.035) (0.020) 16.50 2.65 3.68 2.65 3.68 1.40 0.75 SO63-2-W1-GA-9-100 N/C SO632R (0.650) (0.105) (0.145) (0.105) (0.145) (0.055) (0.030) 16.50 4.30 5.08 4.30 5.08 2.15 1.25 SO63-3-W1-GA-9-100 N/C SO633R (0.650) (0.170) (0.200) (0.170) (0.200) (0.085) (0.050) 19.10 5.95 6.45 5.95 6.45 3.30 1.80 SO63-4-W1-GA-9-100 N/C SO634R (0.750) (0.235) (0.255) (0.235) (0.255) (0.130) (0.070) 19.10 7.00 7.60 7.00 7.60 4.30 2.50 SO63-5-W1-GA-9-100 N/C SO635R (0.750) (0.275) (0.300) (0.275) (0.300) (0.170) (0.100) MATERIALS 1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked polyvinylidene fluoride. 2. SOLDER PREFORM WITH FLUX AND THERMAL INDICATOR: SOLDER: TYPE Sn63 per ANSI-J-STD-006. FLUX: TYPE ROL1 per ANSI-J-STD-004. THERMAL INDICATOR: Fusible ring, melt point: 221C. 3. MELTABLE RING: Environment resistant thermoplastic. Color: blue. 4. GROUND LEAD: Stranded Silver-plated High Strength Copper in accordance with MIL-W-22759/81. APPLICATION 1. These parts will provide a shield termination assembly when installed in accordance to Raychem RCPS-100-70 on cables rated for at least 125C, meeting the dimensional criteria listed, having tin or silver-plated shields. 2. Temperature rating: -55C to +150C. 3. Parts shall be marked with identification code per table. Part Number Guide: For best results, prepare the cable as shown: SO63-X-W1-GA-9-100 Lead color designation per MIL-STD-681 Lead AWG 22, 24 Lead type: M22759/81 Size 1 to 5 G is the minimum diameter on which the sleeve will seal. TITLE: Tyco Electronics Corporation SOLDERSLEEVE SHIELD TERMINATOR, 300 Constitution Drive, Raychem Menlo Park, CA. 94025, U.S.A. ENVIRONMENT RESISTANT WITH LEAD DOCUMENT NO.: Unless otherwise specified dimensions are in millimeters. Inches dimensions are shown in brackets SO63-X-W1-GA-9-100 TOLERANCES: ANGLES: N/A Tyco Electronics reserves the right to 0.00 N/A amend this drawing at any time. Users DOC. ISSUE: DATE: 0.0 N/A ROUGHNESS IN should evaluate the suitability of the 2 28-Dec-04 0 N/A MICRON product for their application. DRAWN BY: CAGE CODE: REPLACES: DCR NUMBER: PROD. REV.: SCALE: SIZE: SHEET: M. FORONDA 06090 D020446 D040307 SEE TABLE None A 1 of 1 2004 Tyco Electronics Corporation. All rights reserved. If this document is printed it becomes uncontrolled. Check for the latest revision. X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Solder Sleeves & Shield Tubing category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : D-260-C-A 899170-000 620040N001 620069N003 620263N004 CTA-0050-01 629624-000 6501390002 CX0781-000 CX0782-000 696396-000 697080-000 715325N001 FLX40-030-02-CS8652 908357N001 D-436-38CS2908 274384-000 285343-000 970053-000 ST18- 2-00 FLX40-020-04-CS8651 317035-000 325534-000 D-100-00-WOTI D-150-1011 395947-000 427243N001 514535-000 C03534-000 CB0220-000 D44133N001 626168-000 451893-000 931289-000 162583-000 585769N001 610001N004 6200060004 622041N003 626167-000 EG3678-000 650075N002 6500820003 6500850004 650126N010 650127N005 146201-000 7400720001 CA3200N001 82-A2
