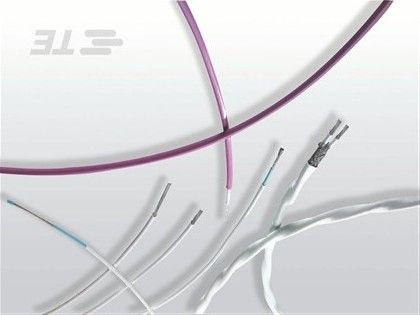

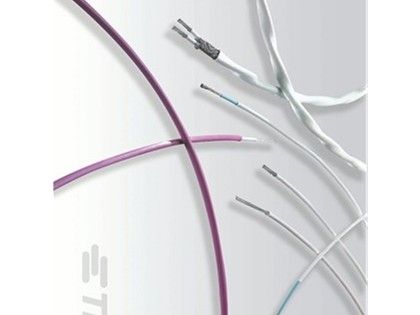

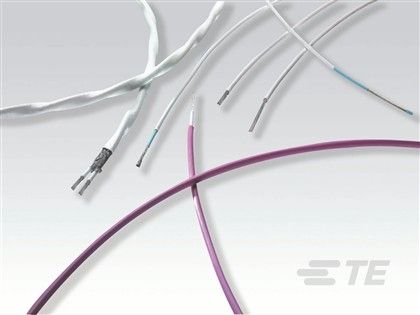

SPECIFICATION CONTROL DRAWING 55PC1131 Date Revision TITLE THREE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT 3-16-10 D This specification sheet forms a part of the latest issue of Raychem Specification 55PC. JACKET - RADIATION-CROSSLINKED, COMPONENT WIRES - 55PC0111 SHIELD - TIN-COATED COPPER MODIFIED ETFE CONSTRUCTION DETAILS JACKET THICKNESS OUTSIDE DIAMETER WEIGHT ( in. ) ( in. ) ( lbs/1000 ft. ) CONDUCTOR SHIELD PART NUMBER SIZE SIZE LOWER LOWER UPPER UPPER 1/ TARGET TARGET TARGET (AWG) (AWG) SPEC SPEC SPEC SPEC WALL VALUE VALUE LIMIT LIMIT LIMIT LIMIT 55PC1131-28-* 28 38 .0050 .0065 .081 .087 .092 6.69 7.23 55PC1131-26-* 26 38 .0055 .0070 .094 .098 .102 8.87 9.32 55PC1131-24-* 24 38 .0055 .0070 .104 .108 .113 11.23 11.67 55PC1131-22-* 22 38 .0060 .0075 .118 .122 .127 14.85 15.39 55PC1131-20-* 20 38 .0060 .0075 .135 .139 .144 20.30 20.91 55PC1131-18-* 18 38 .0060 .0075 .155 .160 .165 28.14 28.94 55PC1131-16-* 16 38 .0060 .0080 .172 .177 .182 34.67 35.57 55PC1131-14-* 14 38 .0060 .0080 .203 .208 .214 50.00 51.12 55PC1131-12-* 12 38 .0060 .0080 .244 .249 .255 73.31 74.78 55PC1131-10-* 10 36 .0065 .0085 .295 .310 .325 116.67 120.59 55PC1131-8-* 8 34 .0070 .0090 .426 .449 .472 218.12 225.11 Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer. 1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER, AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902... MAY BE REPLACED BY Axxx.) OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER. The TE logo, Tyco Electronics and Raychem are trademarks. Raychem Wire & Cable 501 Oakside Avenue DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL. Redwood City, CA 94063-3800 Page 1 of 2 Phone: 1-800-227-8816 THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN. Fax: 1-650-361-6297 REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID. 2006-2010 Tyco Electronics Corporation. All rights reserved.SCD Revision Page 2 of 2 D SPECIFICATION CONTROL DRAWING 55PC1131 CABLE RATINGS AND ADDITIONAL REQUIREMENTS TEMPERATURE RATING: 150C Maximum continuous conductor temperature VOLTAGE RATING: 600 volts (rms) at sea level CROSSLINK VERIFICATION: 300 3C for 1 hour DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz JACKET COLOR: White preferred JACKET ELONGATION AND TENSILE STRENGTH: Elongation, 50% (minimum) Tensile Strength, 5000 lbf/in (minimum) JACKET FLAWS: Spark Test, 1000 volts (rms) Impulse Dielectric Test, 6.0 kV (peak) SHIELD COVERAGE: 85% (minimum) VOLTAGE WITHSTAND (Post Environmental): 1000 volts (rms), 60 Hz, 1 minute PART NUMBER: The in the part numbers on page 1 shall be replaced by color code designators with a slash separating the component wire colors and a dash separating the component wire colors from the jacket color. Colors shown do not necessarily reflect the sequence of manufacturing. 1/ Example: AWG 22, black, brown and red component wires white jacket: 55PC1131-22-0/1/2-9 1/ See footer section on page 1
