CN7619-000 TE Connectivity

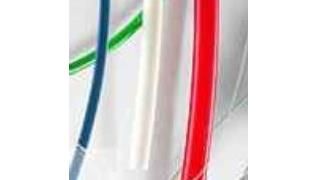

Altera MT2000 Modified, Medical Grade, Polyolefin, Heat - Shrinkable Tubing This specification covers the requirements for one type of single wall, electrical insulating, extruded tubing whose diameter will reduce to a predetermined size upon application of heat in excess of 140C (284F). The tubing is fabricated from modified polyolefin crosslinked by irradiation. It shall be homogenous and essentially free from flaws, defects, pinholes, seams, cracks or inclusions. The tubing is fabricated from materials which meet the requirements of U.S. Pharmacopeia Class VI Plastics. Color shall be black or clear unless otherwise specified. Table 1: Dimensions As Supplied Recovered Inside Diameter Inside Diameter Wall Thickness(Inches, Millimeters) Size Minimum (D) Maximum (d) (W) mm. in. mm. in. Minimum Maximum Nominal 1mm 1.0 .040 0.45 .018 .008 0.20 .012 0.30 .010 .25 2mm 2.0 .080 0.80 .032 .008 0.20 .012 0.30 .010 .25 3mm 3.0 .120 1.20 .048 .008 0.20 .012 0.30 .010 .25 6mm 6.0 .240 2.4 .096 .008 0.20 .012 0.30 .010 .25 10mm 10.0 .400 4.0 .160 .012 0.30 .016 0.41 .014 .36 Specification Control Drawing TE Connectivity Title: Altera MT2000 300 Constitutional Drive Modified, Medical Grade, Polyolefin, Menlo Park, CA 94025 USA Heat - Shrinkable Tubing TE Connectivity reserves the right to amend this drawing at any Document No : time. Users should evaluate the suitability of the product for their MT2000 application Cage Code: Scale: Size: Rev. Date: Sheet: Rev.: 06090 None A 11MAY11 1 of 2 B1 Print Date: 11-May-11 If this document is printed it becomes uncontrolled. Check for the latest revision. Table 2: Properties Property Unit Requirement Test Method PHYSICAL * Dimensions Inches (mm) In accordance with Table 1 * Longitudinal Change Percent 0, -10 ASTM D 2671 * Concentricity as supplied Percent 60 minimum ASTM D 2671 Tensile Strength PSI (MPa) 3000 minimum (20.7) ASTM D 2671, Ultimate Elongation Percent 200 minimum 2 /minute 4 Secant Modulus PSI (MPa) 5.0 x 10 minimum (344) ASTM D 2671 Heat Resistance 168 hours at 125C (257 F) Followed by test for: ASTM D 2671, Ultimate Elongation Percent 200 minimum 2 /minute ELECTRICAL Dielectric Strength Volts/mil 1000 minimum (39.36) ASTM D 2671 (volts/mm) Dielectric Withstand 3000V, 60 Hz sec 60 minimum ASTM D 2671 CHEMICAL Fluid Resistance ASTM D 2671 24 hours at 23 3C (77 5F) Isopropyl Alcohol 5% Saline Solution Cidex** Followed by tests for: Dielectric Strength Volts/mil 1000 minimum (39.36) ASTM D 2671 (volts/mm) Tensile Strength PSI (MPa) 3000 minimum (20.7) ASTM D 2671 Heavy Metals Analysis ppm 1 maximum USP XXII Cadmium (total of all metals) Physicochemical Mercury Tests-Plastics Lead (Note 1) Bismuth Antimony * Denotes lot acceptance test **Trademark of Johnson & Johnson Company Note 1: Sample preparation and extraction is per USP XXII. Metals analysis may be colorimetric as described in USP XXII or by equivalent quantitative analytical method. 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights Reserved. Rev. Date: Document No. Sheet: Rev.: 11MAY11 2 of 2 B1 MT2000 Print Date: 11-May-11 If this document is printed it becomes uncontrolled. Check for the latest revision.
