SCD
55A0122
SPECIFICATION CONTROL DRAWING
Title Date Revision

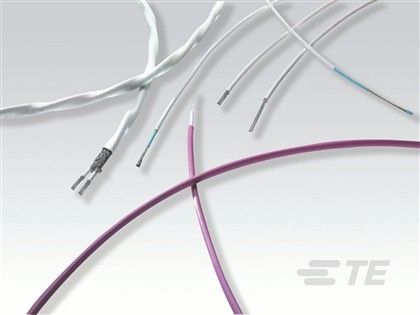

TWO CONDUCTOR CABLE, UNSHIELDED, UNJACKETED,
12-11-15 E
GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55A.
COMPONENT WIRES - 55A0112
CABLE CONSTRUCTION DETAILS
OUTSIDE DIAMETER
CONDUCTOR MAXIMUM
PART NUMBER
(inch)
SIZE WEIGHT
1/
(AWG) (lbs/1000 ft.)
NOMINAL MAXIMUM
55A0122-30-* 30 .048 .052 1.4
55A0122-28-* 28 .054 .058 1.9
55A0122-26-* 26 .064 .068 2.9
55A0122-24-* 24 .074 .078 4.1
55A0122-22-* 22 .086 .090 5.7
55A0122-20-* 20 .100 .104 8.8
55A0122-18-* 18 .120 .124 13.3
55A0122-16-* 16 .136 .140 16.9
55A0122-14-* 14 .170 .176 26.5
55A0122-12-* 12 .206 .212 40.2
55A0122-10-* 10 .256 .268 65.9
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 200C 1/ PART NUMBER:
Maximum continuous conductor temperature The in the part numbers above shall be replaced by
VOLTAGE RATING: 600 volts (rms) at sea level color code designators with a slash separating the
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz component wire colors.
INSULATION FLAWS: Example: AWG 22, black and brown component wires:
Spark Test, 5.7 kV (rms) at 3 kHz 55A0122-22-0/1
Impulse Dielectric Test, 8.0 kV (peak)
NOTE: Nominal values are for information only. Nominal values are not requirements.
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902.. MAY BE REPLACED BYAxx.) OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL.
Page 1 of 1 Redwood City, CA 94063-3800
Phone: 1-800-227-8816
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
Fax: 1-650-361-6297
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
