44A123X
SPECIFICATION CONTROL DRAWING
TITLE Date Revision

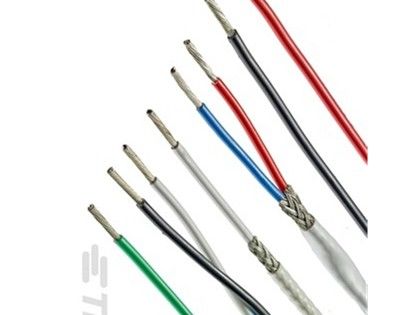

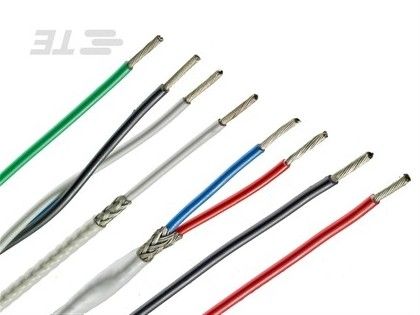

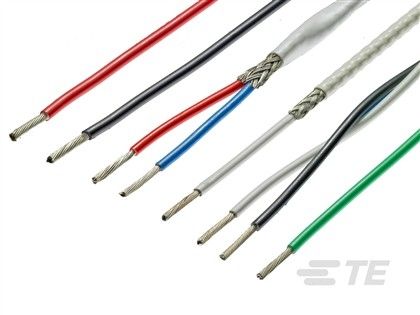

THREE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 1000 VOLT 5-5-08 E
This specification sheet forms a part of the latest issue of Raychem Specification 44.
SHIELD - COPPER, COATING SAME AS ON
CONDUCTOR EXCEPT TIN-COATED
SHIELD WITH SILVER-COATED HIGH JACKET - RADIATION-CROSSLINKED,
COMPONENT WIRES - 44A021X
STRENGTH ALLOY CONDUCTOR MODIFIED PVDF
TABLE I. CABLE CONSTRUCTION DETAILS
JACKET THICKNESS OUTSIDE DIAMETER
CONDUCTOR SHIELD MAXIMUM
PART NUMBER
(in.) (in.)
SIZE SIZE WEIGHT
1/
(AWG) (AWG) (lbs/1000 ft.)
MINIMUM NOMINAL NOMINAL MAXIMUM
44A123X-26-* 26 36 .006 .008 .123 .130 13.3
44A123X-24-* 24 36 .006 .008 .136 .143 16.8
44A123X-22-* 22 36 .006 .008 .154 .161 21.6
44A123X-20-* 20 36 .007 .009 .173 .182 28.4
44A123X-18-* 18 36 .007 .009 .197 .207 38.4
44A123X-16-* 16 36 .007 .009 .214 .225 46.3
44A123X-14-* 14 36 .007 .009 .251 .263 64.4
44A123X-12-* 12 36 .008 .010 .294 .308 91.4
44A123X-10-* 10 36 .008 .010 .356 .374 138.
44A123X- 8-* 8 34 .010 .012 .495 .520 240.
44A123X- 6-* 6 34 .010 .012 .599 .629 351.
NOTE: Nominal values are for information only.
Nominal values are not requirements.
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902... MAY BE REPLACED BY Axxx.) OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
The TE logo, Tyco Electronics and Raychem are trademarks. Raychem Wire & Cable
501 Oakside Avenue
DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.
Redwood City, CA 94063-3800
Page 1 of 2
Phone: 1-800-227-8816
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
Fax: 1-650-361-6297
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
2008 Tyco Electronics Corporation. All rights reserved.Revision SCD
Page 2 of 2 E
SPECIFICATION CONTROL DRAWING
44A123X
TABLE II. CABLE PERFORMANCE DETAILS
BEND TESTING
MANDREL DIAMETER WEIGHT
PART NUMBER
(inch) (3%) (lb) (3%)
1/
LIFE CYCLE, IMMERSION COLD LIFE CYCLE, IMMERSION COLD
AND ACCELERATED AGING BEND AND ACCELERATED AGING BEND
44A123X-26-* 3.00 3.00 .563 4.50
44A123X-24-* 6.00 6.00 .563 9.00
44A123X-22-* 6.00 6.00 .563 9.00
44A123X-20-* 6.00 6.00 .750 13.5
44A123X-18-* 6.00 6.00 .750 13.5
44A123X-16-* 6.00 6.00 1.50 18.0
44A123X-14-* 10.0 10.0 1.50 18.0
44A123X-12-* 10.0 10.0 2.25 18.0
44A123X-10-* 10.0 10.0 3.00 18.0
44A123X- 8-* 18.0 18.0 4.50 22.5
44A123X- 6-* 18.0 18.0 4.50 36.0
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150C LIFE CYCLE: 200 3C for 168 hours
Maximum continuous conductor temperature LOW TEMPERATURE-COLD BEND: -65 2C for 4 hours
VOLTAGE RATING: 1000 volts (rms) at sea level SHIELD COVERAGE: 85% (minimum)
ACCELERATED AGING: 300 3C for 6 hours VOLTAGE WITHSTAND TEST (Post Environmental):
BLOCKING: 150 3C for 6 hours 1000 volts (rms), 60 Hz, 1 minute
DIELECTRIC WITHSTAND: 3000 volts (rms), 60 Hz, 1 minute
FLAMMABILITY: PART NUMBER:
30 seconds (maximum); 3 in. (maximum); no flaming of facial tissue The X in the part numbers on page 1 shall be replaced by the
IMMERSION: Diameter increase 5% (maximum), applicable conductor material designator as follows:
no cracking, no dielectric breakdown 1 tin-coated copper
JACKET COLOR: White preferred 2 silver-coated copper
JACKET CONCENTRICITY: 70% (minimum) 3 nickel-coated copper
JACKET ELONGATION AND TENSILE STRENGTH: 4 silver-coated high strength copper alloy (AWG's 26 -20 only)
Elongation, 200% (minimum)
Tensile Strength, 4000 lbf/in (minimum) The in the part numbers on page 1 shall be replaced by color code
JACKET FLAWS: designators with a slash separating the component wire colors and a
Spark Test, 1.5 kV (rms) dash separating the component wire colors from the jacket color. Colors
Impulse Dielectric Test, 6.0 kV (peak) shown do not necessarily reflect the sequence of manufacturing.
1/ Example: AWG 20, tin-coated copper wires, black, brown and red
component wires; white jacket: 44A1231-20-0/1/2-9
1/ See footer section on page 1
