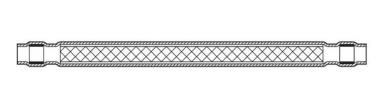

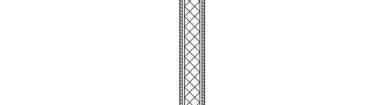

D-150-0230 Splices, SolderShield Splice Kit, Splice, 12 16AWG Wire Size, 4 1.5mm Wire Size, Sealable, Copper Alloy, Yellow, One-to-One Splice D-150-0230 ACTIVE Raychem TE Internal : 289421-000 Splices, SolderShield Splice Kit, Splice, 12 16AWG Wire Size, 4 1.5mm Wire Size, Sealable, Copper Alloy, Yellow, One-to-One Splice View on TE.com> Terminals & Splices > Splices Splice Product Type: SolderShield Splice Kit Terminal & Splice Type: Splice Wire Size: 4 1.5 mm Sealable: Yes Features Product Type Features Splice Product Type SolderShield Splice Kit Sealable Yes Splice Type One-to-One Splice Serrated No Splice Barrel Type Closed Barrel Splice Wire/Cable Type Multi-Conductor Insulated Yes Configuration Features Splice Configuration Single to Single Number of Conductors 1 Body Features Insulation Sleeve Material Polyvinylidene Fluoride Weight per Piece 5.28 g Plating Material Nickel Insulation Material Heat Shrink Radiation-Crosslinked Modified Polyvinylidene Fluoride Splice Material Copper Alloy Splice Color Yellow Contact Features Terminal & Splice Type Splice 08/19/2021 07:43PM Page1 For support call+1 800 522 6752 D-150-0230 Splices, SolderShield Splice Kit, Splice, 12 16AWG Wire Size, 4 1.5mm Wire Size, Sealable, Copper Alloy, Yellow, One-to-One Splice Terminal & Splice Type Splice Termination Features Termination Method Crimp, Solder Dimensions Wire Size 4 1.5 mm Splice Overall Length 80.52 mm 3.17 in Usage Conditions Insulation Requirement Fully Insulated Cable Temperature Rating 135 C Operating Temperature Range -55 150 C -67 302 F Operation/Application Heavy Duty No Industry Standards Government Qualified Splice No Packaging Features Packaging Quantity 10 Splice Packaging Method Box Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Not Compliant EU ELV Directive 2000/53/EC Not Compliant China RoHS 2 Directive MIIT Order No 32, 2016 Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JAN 2021 (211) Candidate List Declared Against: JUN 2020 (209) SVHC > Threshold: Pb (37% in Solder) Article Safe Usage Statements: Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. Halogen Content BFR/CFR/PVC Free, but Br/Cl >900 ppm in other sources. Solder Process Capability Not applicable for solder process capability Product Compliance Disclaimer 08/19/2021 07:43PM Page2 For support call+1 800 522 6752
