EC7603-000 TE Connectivity

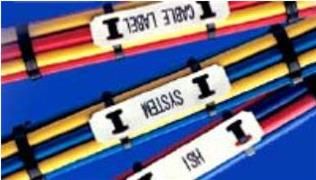

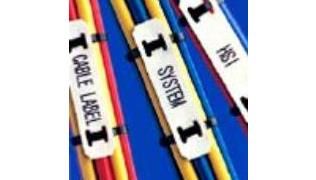

TECHNICAL DATA SHEET TE Document: TTDS-037 Issue: 4 Date: April 2014 HL Cable Marker HL Cable Markers are flat, non-adhesive labels that can be used to identify large cables and wire bundles in particularly aggressive environments. Cable Markers can be applied post cable termination using cable ties. Manufactured using a specially developed radiation cross-linked flame retarded polymer. Typical installations include mass transit, Military and Aerospace. Presented as organised markers assembled onto either a fanfold or reeled paper carrier to allow for greater range of printing formats and kitting. KEY FEATURES TEMPERATURE RATING Operating Temperature Range -55C to 135C (-67F to 275F) Highly flame resistant (Excellent resistance to burning - Oxygen Index 35%) Resistant to key industrial and military grade ENVIRONMENTAL fluids (defined by RW-2513) The Cable Marker, including the print, does not promote mould growth (ASTM G21 / 28 days zero rating) Available in several height/width combinations, and non-standard color Does not migrate materials which will damage or corrode the options surrounding environment, including the conductor Further information and a downloadable declaration covering RoHS and REACH compliance can be found at the TE Product APPLICATIONS Compliance Support Centre: Post termination cable identification TECHNICAL DATA SHEET TE Document: TTDS-037 Issue: 4 Date: April 2014 ORDERING INFORMATION HL Cable Marker AVAILABLE FORMATS Web Width 127mm Web Width 101mm Printable Height Printable Width Printable Width Typical layout for HL*****TS Typical layout for HL*****NF Part Description Marker Dimensions Printable Area Pack Size (Width x Height) (Width x Height) NF TS mm Inches mm Inches HL104 <COLOR> 1 <FORMAT> 025B 45.0 x 10.4 1.80 x 0.4 25 x 10.4 1.00 x 0.4 550 1000 HL104 <COLOR> 1 <FORMAT> 033B 52.0 x 10.4 2.10 x 0.4 33 x 10.4 1.30 x 0.4 550 1000 HL104 <COLOR> 1 <FORMAT> 038B 58.0 x 10.4 2.30 x 0.4 38 x 10.4 1.50 x 0.4 550 1000 HL104 <COLOR> 1 <FORMAT> 050B 70.0 x 10.4 2.75 x 0.4 50 x 10.4 2.00 x 0.4 550 1000 HL104 <COLOR> 1 <FORMAT> 070B 90.0 x 10.4 3.50 x 0.4 70 x 10.4 2.75 x 0.4 550 1000 HL150 <COLOR> 1 <FORMAT> 025B 45.0 x 15.0 1.80 x 0.6 25 x 15.0 1.00 x 0.6 550 500 HL150 <COLOR> 1 <FORMAT> 033B 52.0 x 15.0 2.10 x 0.6 33 x 15.0 1.30 x 0.6 550 500 HL150 <COLOR> 1 <FORMAT> 038B 58.0 x 15.0 2.30 x 0.6 38 x 15.0 1.50 x 0.6 550 500 HL150 <COLOR> 1 <FORMAT> 050B 70.0 x 15.0 2.75 x 0.6 50 x 15.0 2.00 x 0.6 550 500 HL150 <COLOR> 1 <FORMAT> 070B 90.0 x 15.0 3.50 x 0.6 70 x 15.0 2.75 x 0.6 550 500 HL203 <COLOR> 1 <FORMAT> 025B 45.0 x 20.3 1.80 x 0.8 25 x 20.3 1.00 x 0.8 550 500 HL203 <COLOR> 1 <FORMAT> 033B 52.0 x 20.3 2.10 x 0.8 33 x 20.3 1.30 x 0.8 550 500 HL203 <COLOR> 1 <FORMAT> 038B 58.0 x 20.3 2.30 x 0.8 38 x 20.3 1.50 x 0.8 550 500 HL203 <COLOR> 1 <FORMAT> 050B 70.0 x 20.3 2.75 x 0.8 50 x 20.3 2.00 x 0.8 550 500 HL203 <COLOR> 1 <FORMAT> 070B 90.0 x 20.3 3.50 x 0.8 70 x 20.3 2.75 x 0.8 550 500 HL253 <COLOR> 1 <FORMAT> 025B 45.0 x 25.3 1.80 x 1.0 25 x 25.3 1.00 x 1.0 300 250 HL253 <COLOR> 1 <FORMAT> 033B 52.0 x 25.3 2.10 x 1.0 33 x 25.3 1.30 x 1.0 300 250 HL253 <COLOR> 1 <FORMAT> 038B 58.0 x 25.3 2.30 x 1.0 38 x 25.3 1.50 x 1.0 300 250 HL253 <COLOR> 1 <FORMAT> 050B 70.0 x 25.3 2.75 x 1.0 50 x 25.3 2.00 x 1.0 300 250 2014 Tyco Electronics Corporation, a TE Connectivity Ltd. Class I Data Classification - See Policy TEC-02-04 Page 2 of 3 Company. All Rights Reserved. | Indicates Change Printable Height
