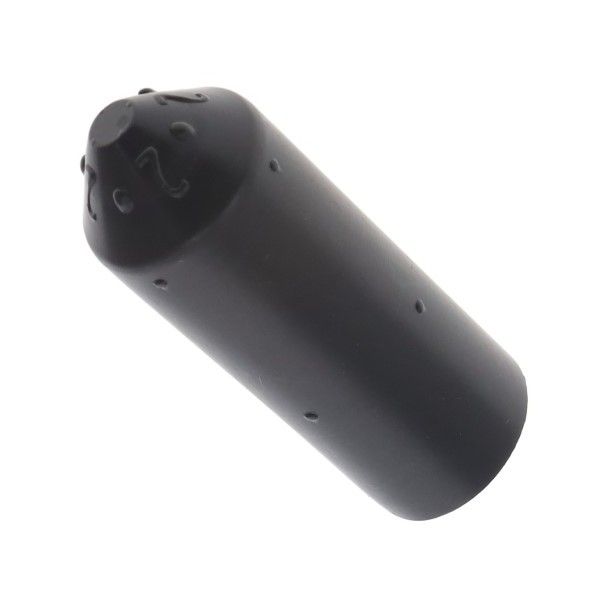

ENC-22/ADH-0 TE Connectivity

Resistant to common fluids and ENC chemicals Rugged installation Adhesive lined end caps Seals and protects cable ends, providing environmental protection Raychem heat-shrinkable Polyolefin cable Cable caps are internally coated with a Each cable cap covers a wide range of caps are used to seal the ends of plastic, hot-melt adhesive. They can be used on cable sizes as shown in the table below. rubber and paper insulated cables from cables at up to 0.05 MPa internal moisture, dirt and corrosion. pressure between -30 and 70C. Ordering information Application H P R W Product/Size Range a b b b b (diameter) min. max. 10% 10% 20% ENC-11/ADH 4 - 8 10 4 38 34 2.0 ENC-22/ADH 8 - 17 20 7.5 55 50 2.8 ENC-33/ADH 17 - 30 35 15 90 80 3.2 ENC-44/ADH 30 - 45 55 25 143 130 3.9 ENC-48/ADH 45 - 65 75 32 150 140 3.3 ENC-55/ADH 65 - 95 100 45 162 140 3.8 ENC-66/ADH 95 - 115 120 70 145 123 3.8 Notes: Dimensions in millimeters a = as supplied b = after free recovery ADH = Adhesive Lined Raychem is a trademark of Tyco Electronics Corporation. All of the above information, including illustrations, is believed to be reliable. Users, however, should Tyco Electronics UK Ltd independently evaluate the suitability of each product for their application. Tyco Electronics makes no Cheney Manor Industrial Estate warranties as to the accuracy or completeness of the information and disclaims any liability regarding its use. Swindon, Wiltshire SN2 2QE Tyco Electronics only obligations are those in the Standard Terms and Conditions of Sale for this product and in Tel: (44)-1793-528171 no case will Tyco Electronics be liable for any incidental, indirect or consequential damages arising from the Fax: (44)-1793-616652 sale, resale, use or misuse of the product. Tyco Electronics Specifications are subject to change without notice. In addition Tyco Electronics reserves the right to make changes in materials or processing, without notification to the Buyer, which do not affect compliance with any applicable specification. 08/00 RI0111X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Cable Mounting & Accessories category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 582603-1 009333-000 727844N003 747 809090N001 843188-000 8666 967279N002 DB-11 1300840039 1300900096 1301800416 1302264450 1300830184 1300830729 1300900039 1301580036 1301850553 1301860939 1302000074 1302261315 1302264431 1337706-2 APA18-AK 1724 1-787307-1 185491N001 1868 HP-6N C-202-C 202C221-13-0 CA7308-000 8S23-75FR-CS8184 2684 9648 3089 988382-000 A72821-000 AA401 173506-000 1823 202C292-13-0 202C302-13-0 2109 300625 3330 3412 356247-1 M9142 M9143
