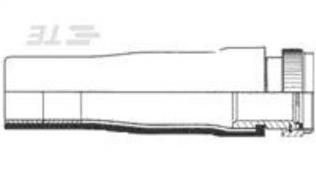

Assemblies KTKK Product Family Overview Applications KTKK cable assemblies are The molded part has a one-part assemblies for hot-melt adhesive prein- screened and unscreened stalled to provide a bond cables. Constructed from between the cable jacket heat-shrinkable screened and the molded part. molded parts and connec- When used in conjunction tor adapters, the assembly with shielded (screened) consists of parts already cables, the assembly well proven in harsh military provides electrical environments. continuity between the Installation is simply effect- cable shield and the ed by coupling the adapter connector with Rayaten to the connector and shrink- molded parts. ing the rear of the molded Rayaten molded parts are part onto the cable with a shielded, heat-shrinkable hot air gun. parts providing shielding levels better than 80 dB at 100 MHz. Assembly Types a b Straight Assemblies 45 Assemblies a b a = Preinstalled conductive adhesive for use with Rayaten screened molded parts only. b = Preinstalled environment adhesive for use a with screened and unscreened KTKK assemblies b (see Preinstalled adhesives, page 7-9). 90 Assemblies Materials Available Material Specification -25S fluid-resistant modified elastomer -25 fluid-resistant modified elastomer RW-2077 shielded -100 low-fire-hazard material -100S low-fire-hazard shielded RW-2078 Precoated Adhesives Material Available Coatings (Unshielded) Available Coatings (Shielded) -25 S1048 (/86) high-temperature hot-melt adhesive -25S S1030 (/180) low-fire-hazard hot-melt adhesive -100 S1030 (/180) low-fire-hazard hot-melt adhesive S1275 conductive adhesive for use with Rayaten -100S molded parts. Available in: Americas Europe Asia Pacific 7-2 Catalog 1654025 Dimensions are shown for Dimensions are in millimeters Canada: +1 (905) 475-6222 UK: +44 (0) 800-267666 Revised 5-12 reference purposes only. unless otherwise specified. Mexico/C. Am.: +52 (0) 55-1106-0800 France: +33 (0) 1-3420-8686 Specifications subject Latin/S. Am.: +54 (0) 11-4733-2200 Netherlands: +31 (0) 73-6246-999 www.te.com to change. USA: +1 (800) 522-6752 Germany: +49 (0) 6251-133-1999 China: +86 (0) 400-820-6015Assemblies Assemblies KTKK Assemblies Screened Pattern 105 Connectors or Connector Code 76 25S Fluid Resistant Elastomer Straight Assemblies 90 Assemblies Connector Part Cable O.D. Part Cable O.D. Shell Size Number Range Number Range 08 KTKK 0520 5.0-8.0 .197-.315 10 KTKK 0521 6.0-13.0 .236-.512 KTKK 1051 6.0-13.0 .236-.512 12 KTKK 0522 7.2-15.0 .283-.591 KTKK 1052 7.2-15.0 .283-.591 14 KTKK 0523 7.2-15.0 .283-.591 KTKK 1053 7.2-15.0 .283-.591 16 KTKK 0524 8.5-19.0 .335-.748 KTKK 1054 8.5-19.0 .335-.748 18 KTKK 0525 8.5-20.0 .335-.748 KTKK 1055 8.5-19.0 .335-.748 20 KTKK 0526 10.0-24.0 .394-.945 KTKK 1056 10.0-24.0 .394-.945 22 KTKK 0527 10.0-24.0 .394-.945 KTKK 1057 10.0-24.0 .394-.945 24 KTKK 0528 15.8-33.0 .622-1.299 KTKK 1058 15.8-33.0 .622-1.299 100S Low Fire Hazard Material 08 KTKK 0465 5.0-7.0 .197-.276 10 KTKK 0466 6.0-9.0 .236-.354 KTKK 1251 6.0-9.0 .236-.354 12 KTKK 0467 7.2-11.0 .283-.433 KTKK 1252 7.2-11.0 .283-.433 14 KTKK 0468 7.2-11.0 .283-.433 KTKK 1253 7.2-11.0 .283-.433 16 KTKK 0469 8.5-17.0 .335-.669 KTKK 1254 8.5-17.0 .335-.669 18 KTKK 0470 8.5-17.0 .335-.669 KTKK 1255 8.5-17.0 .335-.669 20 KTKK 0471 10.0-21.0 .394-.827 KTKK 1256 10.0-21.0 .394-.827 22 KTKK 0472 10.0-21.0 .394-.827 KTKK 1257 10.0-21.0 .394-.827 24 KTKK 0473 15.8-29.0 .622-1.142 KTKK 1258 15.8-29.0 .622-1.142 Pattern 602 Connectors or Connector Code 54 7 25S Fluid Resistant Elastomer Straight Assemblies 90 Assemblies Connector Part Cable O.D. Part Cable O.D. Shell Size Number Range Number Range 08 KTKK 0840 5.0-8.0 .197-.315 10 KTKK 0841 6.0-13.0 .236-.512 KTKK 0851 6.0-13.0 .236-.512 12 KTKK 0842 7.2-15.0 .283-.591 KTKK 0852 7.2-15.0 .283-.591 14 KTKK 0843 7.2-15.0 .283-.591 KTKK 0853 7.2-15.0 .283-.591 16 KTKK 0844 8.5-19.0 .335-.748 KTKK 0854 8.5-19.0 .335-.748 18 KTKK 0845 8.5-19.0 .335-.748 KTKK 0855 8.5-19.0 .335-.748 20 KTKK 0846 10.0-24.0 .394-.945 KTKK 0856 10.0-24.0 .394-.945 22 KTKK 0847 10.0-24.0 .394-.945 KTKK 0857 10.0-24.0 .394-.945 24 KTKK 0848 15.8-33.0 .622-1.299 KTKK 0858 15.8-33.0 .622-1.299 100S Low Fire Hazard Material 08 KTKK 0612 5.0-7.0 .197-.276 10 KTKK 0613 6.0-9.0 .236-.354 KTKK 1241 6.0-9.0 .236-.354 12 KTKK 0614 7.2-11.0 .283-.433 KTKK 1242 7.2-11.0 .283-.433 14 KTKK 0615 7.2-11.0 .283-.433 KTKK 1243 7.2-11.0 .283-.433 16 KTKK 0616 8.5-17.0 .335-.669 KTKK 1244 8.5-17.0 .335-.669 18 KTKK 0617 8.5-17.0 .335-.669 KTKK 1245 8.5-17.0 .335-.669 20 KTKK 0618 10.0-21.0 .394-.827 KTKK 1246 10.0-21.0 .394-.827 22 KTKK 0619 10.0-21.0 .394-.827 KTKK 1247 10.0-21.0 .394-.827 24 KTKK 0620 15.8-29.0 .622-1.142 KTKK 1248 15.8-29.0 .622-1.142 7-3 Catalog 1654025 Dimensions are shown for Dimensions are in millimeters Canada: +1 (905) 475-6222 UK: +44 (0) 800-267666 Revised 5-12 reference purposes only. unless otherwise specified. Mexico/C. Am.: +52 (0) 55-1106-0800 France: +33 (0) 1-3420-8686 Specifications subject Latin/S. Am.: +54 (0) 11-4733-2200 Netherlands: +31 (0) 73-6246-999 www.te.com to change. USA: +1 (800) 522-6752 Germany: +49 (0) 6251-133-1999 China: +86 (0) 400-820-6015
