LWB-10X
Issue 3
Jul. 2015
CUSTOMER DRAWING
ECO-15-009743
Page 1 of 1

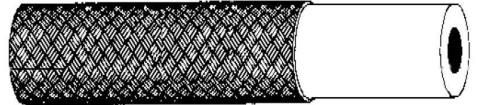

INSTALITE LIGHTWEIGHT SCREENING BRAID
The complete requirements for procuring the wire described herein shall consist of this document.
Plastic Former Braid - Copper Alloy
Plating as below

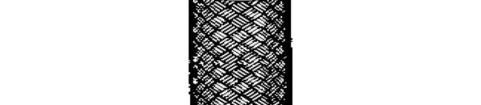

Braid Detail
Recommended
Part
Nominal
Nom. DC Resistance
Coverage % Diameter
Description
Weight #
Range [mm]
(m/m)
Minimum Nominal (kg/km)
LWB-10X-3.0 28.00 90.0 93.7
8.5 3.0 to 4.5
LWB-10X-6.0 18.00 90.0 91.3 15.5 4.5 to 8.0
LWB-10X-10.0 9.00 90.0 96.4
28.0 8.0 to 15.0
LWB-10X-20.0 7.00 85.0 86.0
45.0 15.0 to 25.0
'#' The nominal weight value excludes weight of former
The 'X' in the part number shall be replaced with the plating type as below:
NOTE: 1 = Tin plated conductor
3 = Nickel plated conductor
The last number of the part depicts the nominal internal diameter of the braid,
e.g. LWB-103-6.0 Nickel Plated Copper Alloy Braid with 6.0 mm nominal internal diameter.
PERFORMANCE To be tested to and meet the requirements of the issue in effect of WSD 2516.
REQUIREMENTS:
Electronic sign off - no signatures will appear.
INSTALITE is a registered trademark of Tyco Electronics Corporation.
