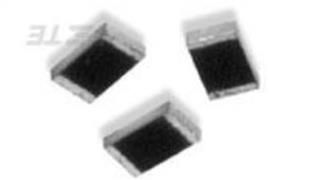

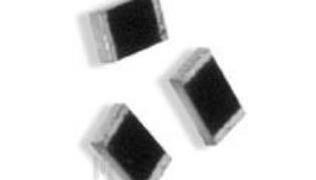

SMD High Power Precision Resistors Type RP73 Series Key Features High precision - Tolerance down to 0.05% and TCR down to 5PPM Power rating to 1.0W Up to 200V DC operating voltage Terminal finish electroplated 100% matte Sn Applications Communications The RP73 resistor series is a stable thin film chip resistor range offering Industrial Controls increased power dissipation, higher temperature capabilities and increased working voltages compared to the standard RN73 series. The resistor is Instrumentation produced by sputtering a metal film onto high grade alumina and protecting with three complete printed layers. Values are normally offered in E96 and Medical E24 series. The RP73 resistor has accurate and uniform physical dimensions to reduce placement problems. Electrical Characteristics RP73 series 0402 Rated Power 0.063W 70C Resistance Min 49R9 49R9 49R9 49R9 49R9 10R 49R9 49R9 49R9 4R7 range Max 4K99 12K 4K99 60K 69K8 255K 4K99 60K 69K8 511K Tolerance (%) 0.05 0.1 0.5 / 1 Code Letter A B D / F TCR (PPM / C) 5 10 15 25 50 5 10 15 25 50 5 10 15 25 50 Code Letter A C D F G A C D F G A C D F G Selection series E24 & E96 Max. operating 25V voltage Max overload 50V voltage Operating temperature -55 ~ +155C range Insulation >M resistance Stability 0.5% Dimensions in Dimensions Shown for 1773272 CIS WR 02/2017 For Email, phone or live chat, millimetres unless reference purposes only. go to: www.te.com/help otherwise specified Specifications subject to change SMD High Power Precision Resistors 0603 Rated Power 0.1W 70C Resistance Min 24R9 4R7 24R9 4R7 4R7 24R9 4R7 4R7 range Max 15K 332K 15K 332K 1M0 15K 332K 1M0 Tolerance (%) 0.05 0.1 0.5 / 1 Code Letter A B D / F TCR (PPM / C) 5 10 15 25 50 5 10 15 25 50 5 10 15 25 50 Code Letter A C D F G A C D F G A C D F G Selection series E24 & E96 Max. operating 75V voltage Max overload 150V voltage Operating temperature -55 ~ +155C range Insulation >M resistance Stability 0.5% 0805 Rated Power 0.125W 70C Resistance Min 24R9 4R7 24R9 4R7 4R7 4R7 24R9 4R7 4R7 1R0 range Max 30K 511K 30K 511K 1M0 1M0 30K 511K 1M0 1M0 Tolerance (%) 0.05 0.1 0.5 / 1 Code Letter A B D / F TCR (PPM / C) 5 10 15 25 50 5 10 15 25 50 5 10 15 25 50 Code Letter A C D F G A C D F G A C D F G Selection series E24 & E96 Max. operating 150V voltage Max overload 300V voltage Operating temperature -55 ~ +155C range Insulation >M resistance Stability 0.5% 1206 Rated Power 0.25W 70C Resistance Min 24R9 4R7 24R9 4R7 24R9 4R7 range Max 49K9 1M0 49K9 1M0 49K9 1M0 Tolerance (%) 0.05 0.1 0.5 / 1 Code Letter A B D / F TCR (PPM / C) 5 10 15 25 50 5 10 15 25 50 5 10 15 25 50 Code Letter A C D F G A C D F G A C D F G Selection series E24 & E96 Max. operating 200V voltage Max overload 400V voltage Operating temperature -55 ~ +155C range Insulation >M resistance Stability 0.5% Dimensions in Dimensions Shown for 1773272 CIS WR 02/2017 For Email, phone or live chat, millimetres unless reference purposes only. go to: www.te.com/help otherwise specified Specifications subject to change
