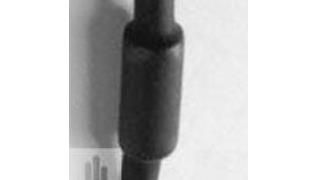

Heat-shrinkable Tubing RAYCHEM Tubing Products TAT-125 1 Adhesive-Lined, Flexible, Polyolefin Tubing Product Facts 2:1 shrink ratio Thin adhesive lining that bonds to outer tubing and surface below, forming a positive environmental seal Flexibility of both tubing and adhesive Moisture seal that is resistant to bending of the substrate Good mechanical strength and cut-through resistance Adhesive that bonds to a wide variety of plastics, rubbers, and metals, including polyethylene, neoprene, lead, and steel RoHS compliant Applications Installation Operating Temperature Range Seals and protects simple Minimum shrink -55C to 110C in-line splices, bimetallic temperature: 95C 203F -67F to 230F joints, and components Minimum full recovery from fluids, moisture, and temperature: 121C 250F corrosion. Repairs damaged wire insulation, especially where flexibility is required. Provides one- step electrical insulation and moisture sealing. Specifications/Approvals Series UL* Military Raychem TAT-125 Type 1 (colors) E85381 AMS-DTL-23053/4*, Class 2 RW-3032 600 V, 125C TAT-125 Type 2 (clear) RW-3032 *Formerly MIL-I-23053/4 and MIL-DTL-23053/4. Sizes 1/4 through 1 1/2 only. Available in: Americas Europe Asia Pacific 1-119 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666RAYCHEM Tubing Products TAT-125 (Continued) Product Dimensions Inside Diameter Recovered Wall Thickness** Minimum Maximum Total Wall Adhesive Wall Size Expanded Recovered After Heating After Heating as Supplied After Heating (Nominal) (Nominal) 1/8 3.2 0.125 1.6 0.062 0.69 0.027 0.23 0.009 3/16 4.8 0.187 2.4 0.093 0.71 0.028 0.25 0.010 1/4 6.4 0.250 3.2 0.125 0.74 0.029 0.13 0.005 3/8 9.5 0.375 4.8 0.187 0.74 0.029 0.13 0.005 1/2 12.7 0.500 6.4 0.250 0.76 0.030 0.15 0.006 3/4 19.1 0.750 9.5 0.375 0.89 0.035 0.15 0.006 1 25.4 1.000 12.7 0.500 1.07 0.042 0.20 0.008 1 1/2 38.1 1.500 19.1 0.750 1.19 0.047 0.28 0.011 **Wall thickness will be less if tubing recovery is restricted during shrinkage. Ordering Information Color Standard Black (-0) Nonstandard White (-9), red (-2), blue (-6), yellow (-4), green (-5), brown (-1), orange (-3), violet (-7), gray (-8), clear (-X , not flame-retardant) Size selection Always order the largest size that will shrink snugly over the component to be covered. Special order sizes are available upon request. Standard packaging In 1.2-meter 4-foot lengths. Ordering description Specify product name, size and color (for example, TAT-125 1/4-0). 1-120 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666
