TLR2H10DR01FTDG TE Connectivity

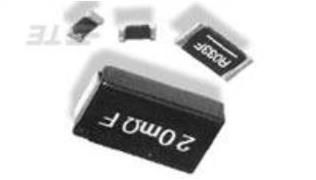

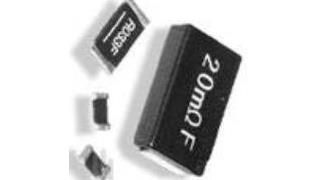

SMD Low Ohmic - Current Sense Resistors Type TLR Series Key Features n Up to 3 Watt at 80C n Supplied on Tape n Ideal for Current Detection n 12:06, 20:10 and 25:12 Packages Available TEConnectivity(TE)ispleasedtoofferthisuniqueHighPower,metalchipresistorfor current sensing positions. It has a special metal resistive element and suitable barrierlayersbeneaththesoldertoprolongterminallife.Followingthedevelopmentsby semiconductor manufacturers in the production of a range of IC s for battery charge managementandlowvoltagepowersupplies,theTLRSeriessatisfiesthedemandfora lowohmicshuntresistortoactasacurrentsensor.Ithasparticularapplicationsinthe automotiveindustryforsensinginEMU s. Characteristics - Electrical 1206 2010 2512 Resistance Value Range: R001 - R01 R001 - R01 R0005 - R015 Resistance Tolerance: 1% 3% 5% Power Rating: 1.0 Watt 1.0 / 1.5 Watts 1.0 / 2.0 / 2.5 / 3.0 Watts Operating Temperature: -55C to +170C Inductance: See below chart T.C.R. See below chart Power Derating Curve 100 80 60 40 20 0 -55 -40 20 0 20 40 60 80 100 120 140 160 175 Ambient Temperature (C) 1773449-3 CIS WR 03/2012 Dimensions are in millimeters Dimensions are shown for For email, phone or live chat, go to: te.com/help and inches unless otherwise reference purposes only. specified. Values in brackets Specifications subject are standard equivalents. to change. Rated Power (%)SMD Low Ohmic - Current Sense Resistors Type TLR Series Inductance Test 12 TLR-R010G 10 TLR-R001 TLR-007 TLR-R001G 8 6 4 2 0 -10 0 10 20 30 40 50 60 70 80 90 100 110 Frequency (MHz) Dimensions L D W H D Type LW H D Reel Qty TLR2B 3.2 1.6 0.6 0.5 2000 TLR2H 5.1 2.5 0.6 0.5 2000 TLR3A 6.4 3.2 0.6 0.8 2000 Standard Electrical Specifications Power Value Range TCR Resistance Size Rating (W) (m) (ppm/C) Tolerance (%) 1206 1.0 1.0 - 10 50 1,3,5 0.5 - 2.0 50 11 - 15 2512 1.0 6.0 - 7.0 75 1,3,5 4.0 - 5.0 100 2.5 - 3.0, 10 150 1773449-3 CIS WR 03/2012 Dimensions are in millimeters Dimensions are shown for For email, phone or live chat, go to: te.com/help and inches unless otherwise reference purposes only. specified. Values in brackets Specifications subject are standard equivalents. to change. Inductance (nH)
