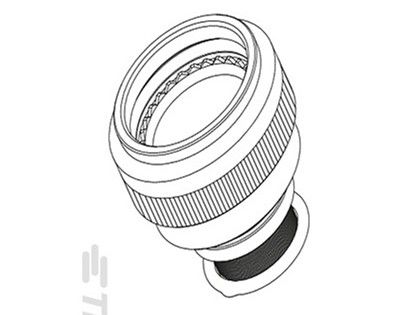

TX41AB00-1616H TE Connectivity

ASSY USED ON: TINEL LOCK RING 3 CODE 41 - TINEL-LOCK BACKSHELL TXR41AB00-1608AI-S SERIES TXR: RING INCLUDED (SEE RING OPTION) TX: RING NOT INCLUDED CONNECTOR INTERFACE MATERIAL REFER TO CH00-0250-008 FINISH REFER TO CH00-0250-008 ANGLE DASH NUMBER (TABLE 1) ENTRY SIZE (TABLE 2) RING OPTION AI - TO SUIT SINGLE BRAID BI - TO SUIT DOUBLE BRAID FOR TX, LEAVE BLANK MODIFICATION CODE REFER TO CH00-0250-008 NOTES: 1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR. 2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS, SEE CH00-0250-008. 3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED. 4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR41AB00-1206). RING SHALL BEAR NO MARKING. 5. FOR LARGER ENTRY SIZES, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED. 6. BACKSHELL MATES TO MIL-DTL-38999, SERIES I AND II, CLASS E AND T, MS27466, MS27467, MS27468, MS27472, MS27473, MS27474, MS27479, MS27480, MS27481, MS27484, MS27497, MS27652, MS27653, MS27656 CONNECTORS. 7. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED. DATE 3RD ANGLE DRAWN K.WINCZURA TITLE: PROJECTION 04/12/2014 NOT TO CHECKED 04/12/2014 SCALE TINEL-LOCK BACKSHELL UNLESS OTHERWISE SPECIFIED APPROVED K.SHEPPARD 04/12/2014 ALL DIMENSIONS IN MILLIMETRES GENERAL TOL LINEAR +/-0,25MM APPROVED H.SMITH 16/02/2015 ANGULAR +/- 1 REVISIONS LTR DATE DESCRIPTION APPROVED MIL-DTL-38999 SERIES I & II H 04.12.12 G.WELLS REVISED PER ECO-12-021161 H.SMITH J REVISED PER ECO-15-002319 16.02.15 TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING DRAWING NO: DRAWING REV: SHT TE CAGE CODE: 06090 AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION. TXR41 J 1 POLAMCO/TE CAGE CODE: U5792G D ASSY USED ON: IF MAX ENTRY IS EXCEEDED BACKSHELL WILL BE SUPPLIED AS TYPE 2 16,80 0,50 26,50 26,80 SILICONE O-RING PART MARK 5 HERE PART MARK HERE STRAIGHT BACKSHELL - TYPE 2 STRAIGHT BACKSHELL - TYPE 1 C 16,80 0,50 F 45 BACKSHELL - TYPE 1 45 BACKSHELL - TYPE 2 W H 16,80 0,50 M T 90 BACKSHELL - TYPE 1 90 BACKSHELL - TYPE 2 H W 16,80 0,50 T M 90 BACKSHELL - TYPE 1 90 BACKSHELL - TYPE 2 STAINLESS STEEL AND STAINLESS STEEL AND NICKEL ALUMINIUM BRONZE NICKEL ALUMINIUM BRONZE DATE 3RD ANGLE DRAWN K.WINCZURA TITLE: PROJECTION 04/12/2014 NOT TO CHECKED 04/12/2014 SCALE TINEL-LOCK BACKSHELL UNLESS OTHERWISE SPECIFIED APPROVED K.SHEPPARD 04/12/2014 ALL DIMENSIONS IN MILLIMETRES GENERAL TOL LINEAR +/-0,25MM APPROVED H.SMITH 16/02/2015 ANGULAR +/- 1 REVISIONS LTR DATE DESCRIPTION APPROVED MIL-DTL-38999 SERIES I & II H 04.12.12 G.WELLS REVISED PER ECO-12-021161 H.SMITH J REVISED PER ECO-15-002319 16.02.15 TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING DRAWING NO: DRAWING REV: SHT TE CAGE CODE: 06090 AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION. TXR41 J 2 POLAMCO/TE CAGE CODE: U5792 B A THREAD XXXX E Z S Y E K B A THREAD XXXX J J
