XFFR-03X4 TE Connectivity

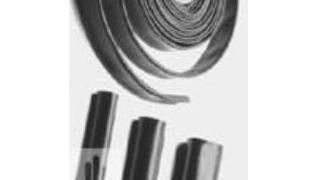

Heat-shrinkable Tubing RAYCHEM Tubing Products XFFR 1 Halogen-Free, Flame-Retardant, Heat-Shrinkable Tubing Product Facts Emits minimal amounts of toxic or acid gasses during combustion Meets performance requirements of MIL-C-24640 and MIL-C-24643 cable jackets Resists moisture, fungus, and weathering Available in expansion ratios as high as 3:1 XFFR has the following approvals: - ABS (American Bureau of Shipping) - Lloyds (Lloyds Register of Shipping) RoHS compliant Applications Installation Operating Temperature Range XFFR halogen-free tubing Minimum shrink -55C to 110C can be used for rejacketing temperature: 70C 158F -67F to 230F and repairing halogen-free Minimum full recovery cables in any enclosed area temperature: 121C 250F where a flame-retardant, halogen-free environment is required. These environments include tunnels, buildings, mass transit vehicles, and ships. When installed with S-1305 tape, the tubing can also be used in applica- tions requiring water seal- ing and protection from abrasion and corrosion. Specifications/Approvals Series Military Industry Raychem XFFR MIL-C-24640 NES 713 RW-2016 MIL-C-24643 NES 711 Available in: Americas Europe Asia Pacific 1-141 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666RAYCHEM Tubing Products XFFR (Continued) Product Dimensions Inside Diameter Recovered Wall Thickness* Size Minimum Expanded Maximum Recovered After Heating as Supplied After Heating (Nominal) XFFR-03 7.62 0.300 2.54 0.100 2.03 0.080 XFFR-04 10.16 0.400 3.81 0.150 2.03 0.080 XFFR-07 19.05 0.750 5.59 0.220 2.03 0.080 XFFR-11 27.94 1.100 9.52 0.375 2.67 0.105 XFFR-15 38.10 1.500 12.70 0.500 3.05 0.120 XFFR-20 50.80 2.000 19.05 0.750 3.05 0.120 XFFR-30 76.20 3.000 31.75 1.250 4.06 0.160 *Wall thickness will be less if tubing recovery is restricted during shrinkage. Ordering Information Color Standard Black (-0) Size selection Always order the largest size that will shrink snugly over the component to be covered. Standard packaging 1.2-meter 4-foot or 7.5-meter 25-foot lengths. Part Numbering System XFFR - 03 X 4 / NM NM - no mark Length in feet (4 feet standard) Size Family 1-142 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666
