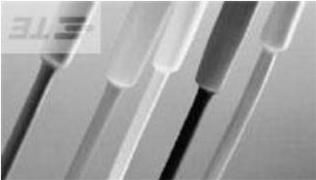

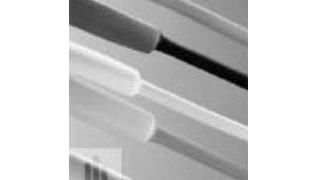

Heat-shrinkable Tubing RAYCHEM Tubing Products ZH-100 1 Flexible, Thin-Wall, Low- Fire-Hazard Tubing Product Facts 2:1 shrink ratio Low smoke emissions Flexible, flame-retardant No added halogens Low evolution of acid gases RoHS compliant Applications Installation Operating Temperature Range ZH-100 is a flexible, Minimum shrink -30C to 105C thin-wall, heat-shrinkable temperature: 80C 176F -22F to 221F tubing designed for low- Minimum full recovery fire-hazard applications. temperature: 120C 248F ZH-100 contains no added halogens, and exhibits excellent fire safety characteristics combined with low evolution of acid gases, while retaining good mechanical and fluid resistance properties. Specifications/Approvals Series Industry Raychem ZH-100 BR 1326A RW-2031 Available in: Americas Europe Asia Pacific 1-147 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666RAYCHEM Tubing Products ZH-100 (Continued) Product Dimensions Inside Diameter Recovered Wall Thickness* Size Minimum Expanded Maximum Recovered After Heating as Supplied After Heating 1/8 3.2 0.125 1.6 0.062 0.50 0.10 0.019 0.004 3/16 4.8 0.187 2.4 0.093 0.50 .0.10 0.019 0.004 1/4 6.4 0.250 3.2 0.125 0.65 0.15 0.026 0.006 3/8 9.5 0.375 4.8 0.187 0.65 0.15 0.026 0.006 1/2 12.7 0.500 6.4 0.250 0.65 0.15 0.026 0.006 3/4 19.0 0.750 9.5 0.375 0.75 0.15 0.030 0.006 1 25.4 1.000 12.7 0.500 0.90 0.15 0.035 0.006 1 1/2 38.0 1.500 19.0 0.750 1.00 0.20 0.039 0.008 2 51.0 2.000 25.4 1.000 1.15 0.25 0.045 0.010 *Wall thickness will be less if tubing recovery is restricted during shrinkage. Ordering Information Color Standard Black (-0) Size selection Always order the largest size that will shrink snugly over the component to be covered. Special order sizes are available upon request. Standard packaging On spools. Ordering description Specify product name, size and color (for example, ZH-100 1/8-0). 1-148 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 Germany: 49-6251-133-1999 CIS WR 08/2011 millimeters unless otherwise reference purposes only. Canada: 1-905-475-6222 China: 86-400-820-6015 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 te.com are metric equivalents. to change. L. & S. America: 54-11-4733-2200 UK: 44-800-267-666
