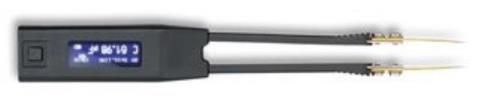

TM LCR-Meter Features: L,C,RandESRmeasurement BrightandeasytoreadOLEDdisplay Automatic ormanualidentificationwithautomaticparallelorseriesequivalent circuitselection Automaticormanualtestfrequencyselection Standardmicro-USBconnectorforbatterycharger Autopoweroff Protectiveholster Precision,gold-platedtips RechargeableLi-Pobattery Technical Specifications: Testfrequency :100Hz,1kHz,10kHz Testsignallevel :0.45+/-5%VrmsSW Basic Accuracy: Resistors :0.5% Capacitors :1% Inductors :1% Measurement Ranges: Resistance :0.05-9.9M Capacitance :0.5pF-4999F Inductance :0.5H-999mH Physical Specifications: Size :14.821.5cm Weight :29g OperatingTemperature :0C-50C BatteryLife :20hrcontinuous Itisaprofessionalquality,lowcostLCR/ESR-meter.Itisaperfectsolutionfortesting,identifying componentsandtroubleshootingelectroniccircuits. TheuniquedesigncombinesapairoftweezerslikeprobesandadigitalLCR-meterinonecompactandlightweightdevice. Thegold-platedprecisionprobesaredesignedtoworkwithsmallestSMTcomponents. Itdisplayscomponenttypeandvalueincludeasecondaryparameterforcapacitorsandinductors.Automaticcomponent identificationandtestfrequencyselectionsimplifiesmeasurementbyeliminationunnecessarytrialanderrortime. Longbatterylifeandextremelylowsleepcurrentmakesthisdeviceandidealchoiceforbroadspectrumofapplications. Usingitprovidesaquickandconvenientwaytotest,sortandevaluateSMTcomponentsandperformon-boardmeasure - mentanddebugging. TM www.element14.com www.farnell.com www.newark.com www.cpc.co.uk www.mcmelectronics.com Page <1> 22/08/14 V1.0TM LCR-Meter Part Number Table Description Part Number LCR-Meter ST-5C Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted fortheuseofitotherthanforinformation purpos esinconnection withtheproductstowhich itrelates.Nolicence ofanyintellectual propertyrightsisgranted.TheInformationissubjecttochange withoutnoticeandreplac esalldatasheetspreviously supplied.TheInformationsupplied isbelieved tobeaccuratebuttheGroupassumesnoresponsibility foritsaccuracyorcompleteness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptionsbasedoninformationincludedoromitted.LiabilityforlossordamageresultingfromanyrelianceontheInformationoruseofit(includingliabilityresultingfromnegligenceorwherethe Group was aware of the possibility of such loss or damage arising) is excluded.This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. TenmaistheregisteredtrademarkoftheGroup.PremierFarnellplc2012. TM www.element14.com www.farnell.com www.newark.com www.cpc.co.uk www.mcmelectronics.com Page <2> 22/08/14 V1.0
