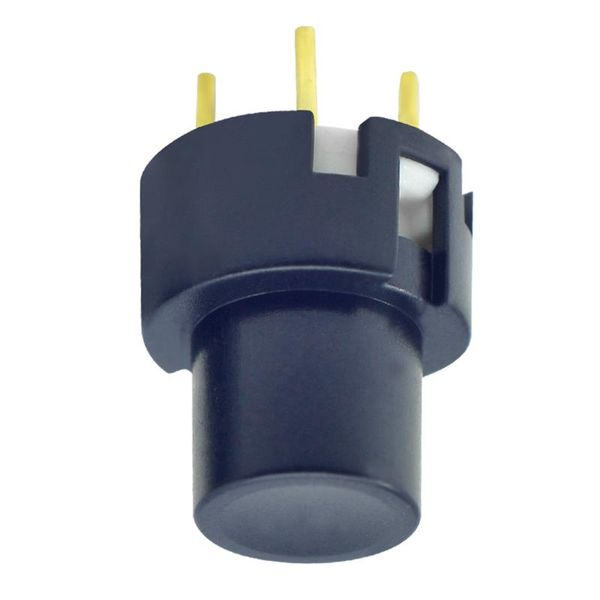

8222/BLACK Toneluck

KEY Switch Specifications Rating 0.01A 35VDC Electrical Life: 100,000 cycles min. Operating Temp: -10C ~ +60C Switching Travel: 0.8mm Contact Resistance: 50m max. initial Insulation Resistance: 100 M min. Dielectric Strength: 500VAC for 60 +/- 5 sec Base Material: PBT Button Material: PC Contacts: Silver plated Function: Momentary Operating Force: 130 +/- 50gf Soldering Method: 260C max for 5 +/- 1 seconds Ordering qty: 1000pcs Solvent washing: Non-washable Schematic/PCB Layout Dimensions KEY-S Model No. Button Color KEY-S-R Red (187C) KEY-S-Y Yellow (115C) KEY-S-G Green (355C) KEY-S-B Black (3C2X) KEY-S-L Blue (2925C) KEY-S-DGY Dark Grey (11C) KEY-S-LGY Light Grey (5425C) KEY-S-W White KEY-P Model No. Button Color KEY-P-R Red (187C) KEY-P-Y Yellow (115C) KEY-P-G Green (355C) KEY-P-B Black (3C) KEY-P-L Blue (2925C) KEY-P-DGY Dark Grey (11C) KEY-P-LGY Light Grey (5425C) KEY-P-W White KEY-L Model No. Button Color KEY-L-R Red (187C) KEY-L-Y Yellow (115C) KEY-L-G Green (355C) KEY-L-B Black (3C) KEY-L-L Blue (2925C) KEY-L-DGY Dark Grey (11C) KEY-L-LGY Light Grey (5425C) KEY-L-W White KEY-R/ KEY-R3 Model No. Button Color KEY-R-R Red (187C) KEY-R-Y Yellow (115C) KEY-R-G Green (355C) KEY-R-B Black (3C) KEY-R-L Blue (2925C) KEY-R-DGY Dark Grey (11C) KEY-R-LGY Light Grey (5425C) KEY-R-W White Model No. Button Color KEY-R3-R Red (187C) KEY-R3-Y Yellow (115C) KEY-R3-G Green (355C) KEY-R3-B Black (3C) KEY-R3-L Blue (2925C) KEY-R3-DGY Dark Grey (11C) KEY-R3-LGY Light Grey (5425C) KEY-R3-W White KEY-K Model No. Button Color KEY-K-R Red (186C) KEY-K-Y Yellow (115C) KEY-K-G Green (354C) KEY-K-B Black (3C) KEY-K-L Blue (2925C) KEY-K-DGY Dark Grey (11C) KEY-K-LGY Light Grey (5425C) KEY-K-W White KEY-K-CH Chrome plated
