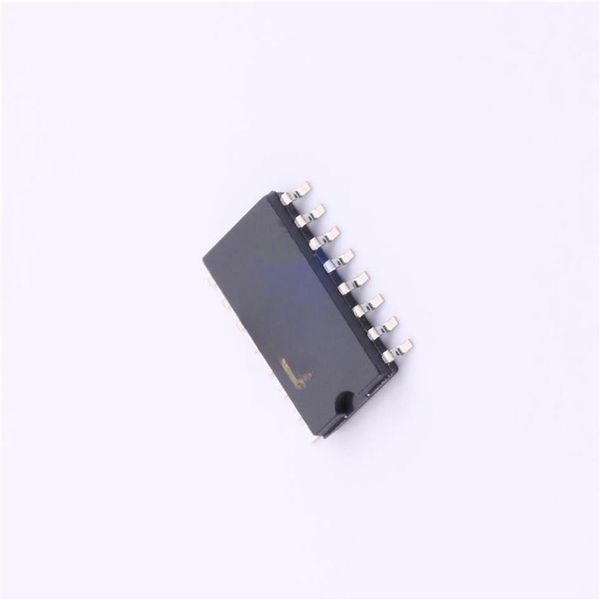

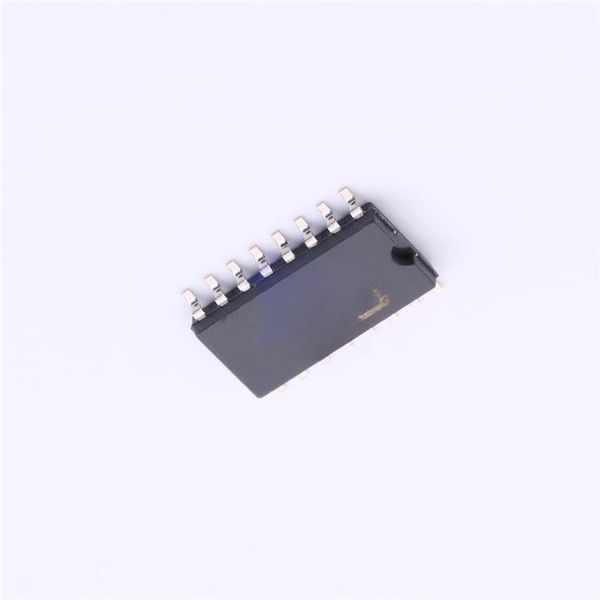

TC74HC4051AF(EL,F) Toshiba

TC74HC4051,4052,4053AP/AF/AFT TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74HC4051AP, TC74HC4051AF, TC74HC4051AFT TC74HC4052AP, TC74HC4052AF, TC74HC4052AFT TC74HC4053AP, TC74HC4053AF, TC74HC4053AFT TC74HC4051AP/AF/AFT 8-Channel Analog TC74HC4051AP, TC74HC4052AP, TC74HC4053AP Multiplexer/Demultiplexer TC74HC4052AP/AF/AFT Dual 4-Channel Analog Multiplexer/Demultiplexer TC74HC4053AP/AF/AFT Triple 2-Channel Analog Multiplexer/Demultiplexer TC74HC4051AF, TC74HC4052AF, TC74HC4053AF The TC74HC4051A/4052A/4053A are high speed CMOS ANALOG MULTIPLEXER/DEMULTIPLEXER fabricated with 2 silicon gate C MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The TC74HC4051A has an 8 channel configuration, the TC74HC4052A has a 4 channel 2 configuration and the TC74HC4053A has a 2 channel 3 configuration. The digital signal to the control terminal turns ON the TC74HC4051AFT, TC74HC4052AFT, TC74HC4053AFT corresponding switch of each channel a large amplitude signal (V V ) can then be switched by the small logical amplitude CC EE (V GND) control signal. CC For example, in the case of V = 5 V, GND = 0 V, V = 5 V, CC EE signals between 5 V and +5 V can be switched from the logical circuit with a single power supply of 5 V. As the ON-resistance of each switch is low, they can be connected to circuits with low input impedance. All inputs are equipped with protection circuits against static discharge or transient excess voltage. Weight DIP16-P-300-2.54A : 1.00 g (typ.) Features SOP16-P-300-1.27A : 0.18 g (typ.) TSSOP16-P-0044-0.65A : 0.06 g (typ.) High speed: t = 15 ns (typ.) at V = 5 V, V = 0 V pd CC EE Low power dissipation: I = 4 A (max) at Ta = 25C CC High noise immunity: V = V = 28% V (min) NIH NIL CC Low ON resistance: R = 50 (typ.) at V V = 9 V ON CC EE High noise immunity: THD = 0.02% (typ.) at V V = 9 V CC EE Pin and function compatible with 4051/4052/4053B Start of commercial production 1986-05 1 2016-10-18 TC74HC4051,4052,4053AP/AF/AFT Pin Assignment TC74HC4051A TC74HC4052A 4 1 16 V 0Y 1 16 V CC CC 6 2 15 2 2Y 2 15 2X COM 14 1 Y-COM 14 1X 3 3 7 4 13 0 3Y 4 13 X-COM 5 5 12 3 1Y 5 12 0X INH 6 11 A INH 6 11 3X V 7 10 B V 7 10 A EE EE GND 8 9 C GND 8 9 B (top view) (top view) TC74HC4053A 1Y 1 16 V CC 0Y 2 15 Y-COM 1Z 14 X-COM 3 Z-COM 4 13 1X 0Z 5 12 0X INH 6 11 A V 7 10 B EE GND 8 9 C (top view) 2 2016-10-18
