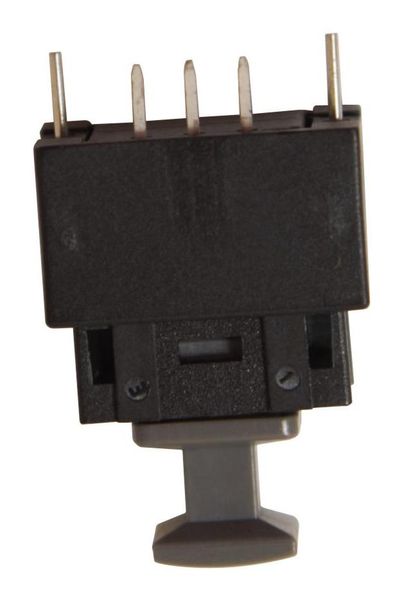

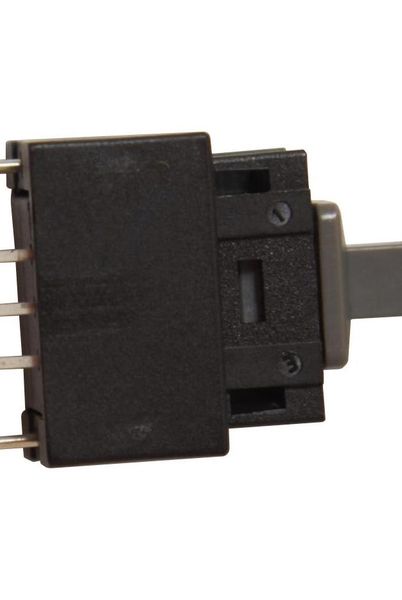

TOTX1350(V,F) FIBER OPTIC TRANSMITTING MODULE TOTX1350(V,F) GENERAL PURPOSE OPTICAL TRANSMITTING MODULE JIS F05 type fiber optic connector 650 nm LED Low current LED drive Vertical mounting type 1. Absolute Maximum Ratings (Ta = 25C) Characteristics Symbol Rating Unit Storage Temperature Tstg 40 to 95 C Operating Temperature T 40 to 85 C opr Forward Current (DC) IFDC 30 mA Reverse Voltage V 5 V R Soldering Temperature Tsol 260 (Note 1) C Note 1: Soldering time 10 s (More than 1 mm apart from the package). Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/ current/ voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (Handling Precautions/ Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc.). 2. Operating Ranges Characteristics Symbol Min Typ. Max Unit Forward Current (DC) I - 6 8 mA F Data Rate DC - 10 Mb / s Start of commercial production 2013-11 2013-2020 2020-03-12 Toshiba Electronic Devices & Storage Corporation 1 TOTX1350(V,F) 3. Electrical and Optical Characteristics (Ta = 25C, VCC = 5 V) Characteristics Symbol Test Condition Min Typ. Max Unit Data Rate (Note 2) NRZ Code DC - 10 Mb / s APF (Note 3), IF = 6 mA, Using TORX1350A(V,F) 40 - 100 m Transmission Distance (Note 2) APF (Note 3), IF = 1.5 mA, Using TORX1350A(V,F) 0.2 - 50 m APF (Note 3), IF = 6 mA, Using TORX1355(V,F) 0.2 - 10 m I = 6 mA, Using TORX1350A(V,F) and TOCA1300 F - - mm 23.6 I =6 mA, Using TORX1355(V,F) and TOCA1300 F Transmission Distance (Note 2), (Note 4) IF = 6 mA, Using TORX1350A(V,F) and TOCA1301 - 34.0 - mm I = 6 mA, Using TORX1355(V,F) and TOCA1301 F Pulse Width Distortion (Note 5) tw -30 - 30 % I = 6 mA, APF (Note3), - 6 - -2 dBm F Fiber Output Power (Note 6) P f I = 1.5 mA, APF (Note3), -13 - -8 dBm F Center Emission Wavelength c - 650 - nm - I = 6 mA V F 2.0 2.1 Forward Voltage V F - I = 1.5 mA V F 1.8 2.0 - Reverse Current IR VR = 5 V - 10 A Note 2: Use the drive circuit of Chapter 4. Note 3: All Plastic Fiber (980 m core / 1000 m cladding, NA = 0.5). Polished surface. Transmission loss is less than 0.18 dB/m. (100m 650nm). Note 4: A distance between fixing pin of TOTX1350(V,F) and fixing pin of TORX1350A(V,F) or TORX1355(V,F) when they connect with optical adapter (TOCA1300 or TOCA1301). Note 5: Between input of driver circuit of TOTX1350(V,F) and output of TORX1350A(V,F) or TORX1355(V,F). Use the drive circuit of Chapter 4. Note 6: Measure with a standard optical fiber with fiber optic connectors. Valued by peak. 2013-2020 2020-03-12 Toshiba Electronic Devices & Storage Corporation 2
