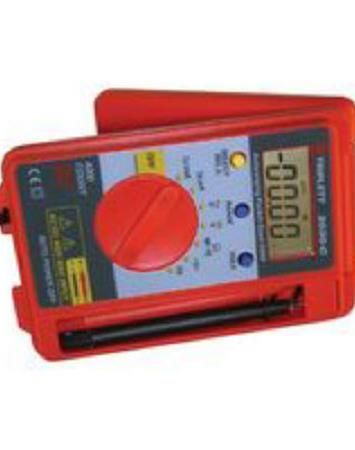

Use caution when attempting to evaluate if a dangerous voltage is present. The meter will not read AC voltage if it is set to DC, nor will it read DC if it is set to AC. For example, if the meter is set to 200VDC, it will not measure a dangerous AC voltage, even if the probes are inserted into a household AC wall outlet. TRIPLETT Do not touch the metallic portion of one test lead if the other test lead is connected to a live circuit. The current from the live circuit may pass through the meter and appear on the unconnected test lead. Failure to observe this warning may result in user injury. Model 2030-C Remove the batteries when the meter may be left unused for longer than 1 month. Chemical leakage from the batteries could damage the meter, leading to user injury. Pocket-Sized DMM Do not use the meter if there is evidence of chemical leakage from the batteries. Leakage could damage meter and lead to injury of user. INSTRUCTION MANUAL Do not modify the meter. Changing the design may make the meter unsafe and may result in injury to INTRODUCTION the user. The Triplett 2030-C Pocket Digital Multimeter uses modern technology to provide the user with a con- Do not attempt to use meter when no display is present on LCD. Doing so may damage the meter venient, compact, feature packed measuring instrument. The 2030-C measures AC and DC Voltage and/or injure the user. and Current, tests Diodes, measures Resistance, Frequency and Capacitance and incorporates a Con- Use Caution when the meter is in the HOLD mode. In this mode, the meter will not display a new tinuity Beeper. It features Autoranging or Manual ranging in the voltage and resistance measuring modes, reading, and consequently, may not indicate the presence of dangerous voltages. i.e. If the meter is as well as a battery saving Auto Power Off mode. These abilities make the 2030-C useful in the lab, in HOLD and is displaying 1 volt, the meter will continue to display 1 volt, even though 500 volts is shop, car, or home.... by the Electrician, Technician, or Hobbyist. applied to the meters test leads. FEATURES Duty Cycle When replacing the batteries, dispose of the depleted batteries in accordance with any prevailing Autoranging Pocket-Sized DMM Diode Check 3 3/4 Digit, 4000 Count Display safety or environmental regulations. Continuity Beeper AC/DC Volts to 600V Relative Mode SPECIFICATIONS AC/DC Current to 400mA Data / Range Hold Resistance to 40M Display LCD, Resolution: 3 3/4 digit, 4000 count Auto Power Off CAT II 600V Rating on Voltage Ranges Size: 0.42 (10.6 mm) high Low Battery Indicator Capacitance Test to 100F Annunciators: mV, V, , K , M , F, nF, AC, Hz, KHz, A, mA Hard, Protective Case Frequency Range to 10KHz One Year Warranty + H , , , , and AUTO Ranging . A total of 36 ranges / functions (see following specs) WARNING Polarity Automatic, minus (-) sign indicates negative polarity This meter is NOT to be used to measure High Energy circuits (power circuitry fused at Overrange . LCD displays OL greater than 4KW, such as distribution circuits, power entrance circuits, etc.) or circuits classified by CE as CATEGORY III (CAT III). Battery 2 - 1.5 Volt, LR-44 or SR-44, Triplett part number 37-51 Battery Life . Approx 150 hours typical SAFETY RULES AND WARNINGS Dimensions . 3.2 x 4.8 x 0.8 inch Read all instructions in this manual before using this meter. Weight . Approx 4 oz. Prior to using the meter in any situation which could result in injury to the user, in order to verify that Agency Approvals CE CAT II 600 (on voltage ranges only) the meter is functional and producing a valid reading, test the meter on a circuit(s) known to have potentials equivalent to the potential that is to be measured. For example, before using the meter to DC VOLTAGE (600 Volts max input, CAT II criteria) determine if an AC power line is energized with 120VAC, test the meter on a line known to be INPUT OVERLOAD RANGE RESOLUTION ACCURACY IMPEDANCE PROTECTION energized with 120VAC. 4V00mV 0.1m >1000M Do not exceed the maximum voltage limitations of this meter (see product specifications). Doing so 4V.0V 0.001 may damage the meter and/or injure the user. 0.8%rdg+3dgt 4V0V 0.01 600VAC/DC 10M When using this meter in schools and workshops, responsible teachers or skilled personnel must 4V00V 0.1 control the usage of this meter. 6V00V 1 1.0%rdg+3dgt Follow the recommendations of any Trade Organizations or Regulatory Agencies whose scope ACVOLTAGE(600Volts,60Hzsine,maxinput,CATIIcriteria) encompasses the use of this meter. FREQUENCYOVERLOAD RANGERESOLUTIONACCURACY Do not use this meter with its battery cover open, its rear case open, or with parts removed. RESPONSEPROTECTION 4V00mV 0.1m1.5%rdg+5dgt Do not open this meter for maintenance without first disconnecting the test leads from all external 4V.0V 0.001 circuitry. 4V0V 0.011.2%rdg+5dgt4C0-400Hz600VAC/D Repairs and maintenance must only be carried out by qualified service personnel or qualified electri- 4V00V 0.1 cians /technicians who know the dangers of, and the safety rules applicable to this type of equipment. 6V00V 1 1.5%rdg+5dgt Use caution when measuring circuits containing capacitors. Capacitors can store dangerous levels of InputImpedance:10Monallranges electricity, even when the circuitry which they are in has been disconnected from its power source. RESISTANCE Use caution when working with voltages above 25 volts AC or 35 volts DC. Such voltages may cause RANGERESOLUTIONACCURACY OVERLOADPROTECTION a life threatening electrical shock. 400 0.1 This meter is not for use by children. 4.0K 0.001K Always set the meter to the appropriate range or mode before connecting it to the circuitry to be 40K 0.01K1.0%rdg+3dgt 600VAC/DC tested. 400K 0.1K 4.0M 0.001M Never attempt to make voltage measurements with the Function switch set to DIODE , OHM , 40M 0.01M3.0%rdg+5dgt Continuity Beeper , Frequency (Hz, KHz), or Capacitance . Doing so may damage the meter and/or injure the user. DCCURRENT Do not rotate the Function switch with the test leads connected to the circuitry to be tested. Doing so RANGE RESOLUTION ACCURACY OVERLOADPROTECTION may damage the meter and/or injure the user. 400A10.A 2.0%rdg+5dgt Before using the meter, examine both the meter and the test leads for damage. Do not use the meter 4000A1A Fast 0.5A/250VFuse if damage (damaged insulation, exposed metal, cracked case, burnt smell, etc.) is evident. 4A0mA 0.01m 1.5%rdg+5dgt 4A00mA 0.1m Do not use this meter to make measurements in adverse environments such as rain, snow, fog, or locations with steam, explosive gases or dusts. Doing so may damage the meter and/or injure the user. ACCURRENT Do not use the meter if either the meter or the test leads are wet, either from exposure to the weather, FREQUENCYOVERLOAD RANGERESOLUTIONACCURACY RESPONSEPROTECTION or after cleaning the case of the meter. Doing so may cause injury to the user. 400A10.A Avoid usage near strong magnetic fields (magnets, loudspeakers, transformers, motors, coils, relays, 2.5%rdg+5dgt 4000A1A Fast contactors, electromagnets, etc.). The meter may display readings that are in error, causing the user 40-400Hz 0.5A/250VFuse 4A0mA 0.01m to misinterpret the hazards present. For example, the meter may indicate a low voltage when high 2.0%rdg+5dgt 4A00mA 0.1m voltages are actually present. Avoid usage near strong electrostatic fields (high voltage power lines, televisions, computer monitors, FREQUENCY(AUTORANGEONLY) etc.). The meter may display readings that are in error, causing the user to misinterpret the hazards MAX.OVERLOAD RANGERESOLUTIONACCURACY present. For example, the meter may indicate a low voltage when high voltages are actually present. SENSITIVITYPROTECTION 5z0Hz(10Hzmin)0.01H Avoid usage near strong RF fields (radio or television transmitters, etc.). The meter may display 5z00Hz 0.1H0s.02%rdg+2dgt5CVrm600VAC/D readings that are in error, causing the user to misinterpret the hazards present. For example, the 5zKHz0.001KH meter may indicate a low voltage when high voltages are actually present. Do not touch the tips of the test leads when making a measurement. Do not touch live circuitry when DUTYCYCLE making a measurement. RANGEACCURACY MAX.FREQUENCY 0.1to99.9%2%rdg+2dgt 10KHz Do not apply more than 600 volts DC/AC rms between the test leads and the earth ground. Doing so may damage the meter and/or injure the user. CAPACITANCE(AUTORANGEONLY) If there is any doubt about the condition of the meter (i.e. safe vs unsafe), remove the meter from OVERLOAD RANGERESOLUTIONACCURACYRESPONSETIME service and secure it in a location that will prevent its unintentional use. PROTECTION 4F0nF 0.01n5.0%rdg+15dgt Do not use the meter if it does not appear to work correctly on all ranges and in all modes. 4F00nF 0.1n Approx.2sec Do not use the meter if it has undergone long-term storage under unfavorable conditions. 4F10.00F 2.5%rdg+10dgt 600VAC/DC Do not use the meter if it may have been damaged in transport. 40F10.0FcApprox.5se 100F10.F 3c.0%rdg+15dgtApprox.10se Do not attempt immediate use of the meter when bringing if from a cold environment to a warm environment. Condensation of water, inside and outside of the meter, may produce dangerous DIODETEST measuring conditions. Allow the meter to warm to room temperature before using. MAXDISPLAYTESTCURRENTACCURACYOVERLOADPROTECTION Do not use meter in condensing atmospheres. That is, do not use meter in conditions where ambient 0A.999V0%.1to0.5mACpprox.10 600VAC/D temperature and humidity could cause condensation of water inside of meter. Doing so may cause injury to the user. CONTINUITYTEST OVERLOAD MAXDISPLAYTESTVOLTAGEMAXTESTCURRENTACCURACY + Do not continue to use meter when the low battery symbol is displayed. The displayed reading PROTECTION may be in error and lead the user to believe that no hazard exists, when in fact, dangerous voltages399.9AApprox.0.5VApprox.1m1C.0%rdg+3dgt600VAC/D or currents may be present. BeeperSounds lessthan30(Approx.)MAKING MEASUREMENTS, GENERAL INFORMATION CONTINUITY BEEPER To make a measurement, open the lid of the meter and rotate the rotary switch to the position appropri- WARNING REMOVE ALL POWER FROM THE CIRCUIT BEING TESTED. FOLLOW ate to the quantity to be measured. If appropriate, press the pushbuttons to further define the desired APPROPRIATE PROCEDURES TO REMOVE CHARGE FROM ANY CAPACITORS IN THE CIRCUIT. type of measurement. The AutoRanging feature of the meter will automatically select the range which NEVER CONNECT THE TEST LEADS TO ANY SOURCE OF VOLTAGE will produce the most accurate reading. Alternately, the user may manually select the range by pressing WHEN THE METER IS SET TO DIODE. and releasing the RANGE button. Note the position of the decimal point, and the annunciator (like mV or V) to determine the selected range. Note: The Capacitance ( ) and Frequency (Hz) measurement Follow the procedures outlined in the Safety Rules and General Information functions are Autorange only. 1) Set the rotary switch to BEEPER ( ). The selected range should be higher than the expected input value. For example, if a 120 Volt AC Press the SELECT/REL button while observing the annunciators in the LCD display. household circuit is to be measured, set the meter to the 400 Volt AC range. If a 12 Volt car battery is to Select the BEEPER mode of operation. be measured, set the meter to the 40 Volt DC range. If the level of the quantity being measured is 2) Connect the test leads to the circuit to be tested for continuity. unknown, always set the meter to the highest appropriate range. 3) If continuity exists, i.e. the resistance between the test leads is less than about 30 Ohms, the To reset the meter from Manual operation to AutoRange operation, press and hold the RANGE button beeper will sound, and the LCD display will indicate the resistance of the circuit (up to 400 Ohms). until the meter beeps and AutoRange operation commences (the AUTO annunciator will turn on). NOTE: Carefully remove the test leads from their storage compartment on the meter and extend them CAPACITANCE MEASUREMENT to their full length. Observing the proper polarity (red is positive and black is negative), and following all applicable safety rules, connect the test leads to the circuit to be measured. Read the voltage on the WARNING FOLLOW APPROPRIATE PROCEDURES TO REMOVE CHARGE FROM ANY CAPACITORS TO BE TESTED. PERFORMING TESTS ON CHARGED CAPACITORS MAY RESULT LCD display. IN DAMAGE TO THE METER OR USER INJURY. NEVER CONNECT THE TEST LEADS TO If the meter continuously overranges while attempting to measure voltage, immediately disconnect the ANY SOURCE OF VOLTAGE WHEN THE METER IS SET TO THE CAPACITANCE MODE. test leads from the circuit being measured. Reset the meter to an appropriate range and try making the measurement again, or discontinue using the meter to perform the test. The quantity that you are trying Note: This meter is not intended to perform in-circuit testing of capacitors. to measure may exceed the capability of this meter, and continued attempts at making a measurement 1) Set the rotary switch to . may result in damage to the meter or user injury. 2) Connect the test leads to the capacitor to be measured, observing the proper polarity of the When finished making measurements, carefully fold the test leads back into the storage compartment, leads (if important in your application). starting with the leads themselves, and finishing by capturing the tips of the probes with the flip cover 3) Read the displayed capacitance on the LCD. and folding it down into the compartment. Before closing the lid of the meter, verify that the test leads are completely enclosed in the storage compartment, and set the rotary switch to the OFF position. NOTE 1: The response time of the capacitor measurement mode lengthens as the capacitance being When the knob is set to OFF, it aligns with the power slot in the lid of the case, allowing the lid to be tested increases. On the highest range (100F), response time can be 10 seconds or longer. closed. This feature guarantees that the meter is turned off when the lid is closed, thereby extending NOTE 2: The 2030-C will not determine if a capacitor is good or bad...... it only measures the value the battery life. of the capacitor. A capacitor which measures OL may be Shorted or Leaky. HOLD A reading appearing in the LCD can be held by pressing and releasing the HOLD button. The HOLD FREQUENCY AND DUTY CYCLE MEASUREMENT annunciator H will appear in the display when this feature is activated. This feature allows the user to WARNING THE MAXIMUM INPUT VOLTAGE IS 600 VOLTS AC take a measurement for a few seconds, press the HOLD button, and capture the reading on the LCD. The HOLD mode is released by pressing the HOLD button again, pressing a different button, or by Follow the procedures outlined in the Safety Rules and General Information turning the rotary switch. 1) Set the rotary switch to Hz. WARNING DO NOT TURN ROTARY SWITCH IF AN INPUT IS APPLIED TO THE METER 2) Connect the test leads to the signal to be measured. AUTO POWER OFF 3) Read the displayed frequency on the LCD. The 2030-C incorporates an Auto Power Off feature designed to lengthen the battery life. If the switch 4) To measure Duty Cycle, press the SELECT / REL button. To return to frequency measurement, press and the buttons are undisturbed over a period of time, the meter will automatically go to sleep. Once the SELECT / REL button again. the meter has gone to sleep, a press of one of the buttons or turning the rotary switch will wake it up. The time out interval for the 2030-C is approximately 30 minutes. REL (RELATIVE) MODE WARNING DO NOT TURN ROTARY SWITCH IF AN INPUT IS APPLIED TO THE METER The 2030-C incorporates a useful REL Mode that works in the Capacitance and Voltage measuring functions. It does not work in the OHMS, DIODE TEST, CONTINUITY, FREQ, A, or mA functions. AC and DC VOLTAGE MEASUREMENTS To null out the residual capacitance of the 40nF range (which can be as high as 150 digits), turn the rotary switch to the CAP range, observe the LCD reading, and then press the SELECT/REL button. WARNING THE MAXIMUM INPUT VOLTAGE IS 600 VOLTS AC/DC The displayed reading should drop to 00.00nF. Proceed to measure capacitance as described previ- Follow the procedures outlined in the Safety Rules and General Information ously. Note: The ultra-hi input impedance of the meter may cause the meters reading to change randomly Similarly, residual readings on the V AC and V DC ranges can be nulled out, or, for special testing until the test leads are connected to a signal source. purposes, actual AC or DC voltage readings can be nulled to zero, and changes in the input quantity observed as positive and negative deviations from zero. 1) Set the rotary switch to the AC ( V ) or DC ( V ) voltage mode as desired. If using the AutoRange feature, proceed to Step 2). If using the MANUAL range mode, refer to the BATTERY REPLACEMENT instructions given under MAKING MEASUREMENTS, GENERAL INFORMATION. WARNING PRIOR TO CHANGING THE BATTERIES, DISCONNECT THE TEST LEADS FROM 2) Connect the test leads to the circuit to be measured, observing the proper polarity of theleads. ANY CIRCUITRY THAT THEY MAY BE HOOKED TO AND STORE THE LEADS IN THE CASE. TURN THE METER OFF AND CLOSE ITS LID. 3) Read the displayed voltage on the LCD. 1) Remove the battery cover on the rear of the meters case by removing two screws. 4) If the minus (-) sign appears (in DC Mode) the positive test lead is connected to a negative polarity. 2) Remove the batteries and dispose of them in an approved manner. AC and DC CURRENT MEASUREMENTS 3) Insert new batteries, observing proper polarity. WARNING THE MAXIMUM INPUT VOLTAGE IS 250 VOLTS AC/DC 4) Replace the battery cover. Follow the procedures outlined in the Safety Rules and General Information FUSE REPLACEMENT 1) Remove power from the circuit to be tested and connect the test leads of the meter in series with the WARNING PRIOR TO CHANGING THE FUSE, DISCONNECT THE TEST LEADS FROM circuit, observing polarity as appropriate. ANY CIRCUITRY THAT THEY MAY BE HOOKED TO AND STORE THE LEADS IN THE CASE. DO NOT INSERT THE METER INTO CIRCUITS WHERE THE OPEN CIRCUIT VOLTAGE EXCEEDS TURN THE METER OFF AND CLOSE ITS LID. 250V AC/DC. DOING SO MAY DAMAGE THE METER OR RESULT IN USER INJURY. 1) Remove the battery cover on the rear of the meters case by removing two screws. 2) Set meter to appropriate current range (A or mA). Press the SELECT/REL button to select AC 2) Remove the Wrist Strap from the case. or DC measurement. 3) Gently pry the case open, starting at bottom of the case, where the Wrist Strap was attached. Remove back of case. Note how Lid attaches to case. 3) Apply power to circuit being tested and observe the reading on the LCD. 4) Replace the fuse. 4) If the minus (-) sign appears (in the DC mode) the positive test lead is connected to a negative 5) Reassemble. polarity. STAND / WRIST STRAP 5) Remove power from the circuit being tested before disconnecting the test leads of the meter. The Wrist Strap can also be used to make the lid of the 2030-C act as a Stand. Flip the lid open, and with it positioned behind the 2030-C, run the handle of the Strap through the slot in the lid, adjusting RESISTANCE MEASUREMENTS the handle so that it does not pull back through the slot. Set the meter down . the lid acts as a stand. WARNING REMOVE ALL POWER FROM THE CIRCUIT BEING TESTED. FOLLOW APPROPRIATE PROCEDURES TO REMOVE CHARGE FROM ANY CAPACITORS IN THE CIRCUIT. TRIPLETT ONE YEAR LIMITED WARRANTY NEVER CONNECT THE TEST LEADS TO ANY SOURCE OF VOLTAGE The Triplett Corporation warrants instruments and test equipment manufactured by it to be free from defective material or workmanship WHEN THE METER IS SET TO ANY OF THE OHM RANGES. and agrees to repair or replace such products which, under normal use and service, disclose the defect to be the fault of our manufac- turing, with no charge within one year of the date of original purchase for parts and labor. If we are unable to repair or replace the Follow the procedures outlined in the Safety Rules and General Information product, we will make a refund of the purchase price. Consult the Instruction Manual for instructions regarding the proper use and servicing of instruments and test equipment. Our obligation under this warranty is limited to repairing, replacing, or making refund on Note: This meter is not intended to perform in-circuit testing of resistors. any instrument or test equipment which proves to be defective within three years from the date of original purchase. 1) Set the rotary switch to the OHMs mode ( ). This warranty does not apply to any of our products which have been repaired or altered by unauthorized persons in any way so as, in our sole judgment, to injure their stability or reliability, or which have been subject to misuse, abuse, misapplication, negligence, acci- If using the AutoRange feature, proceed to Step 2). If using the MANUAL range mode, refer to the dent or which have had the serial numbers altered, defaced, or removed. Accessories, including batteries and fuses, not of our manufacture used with this product are not covered by this warranty. instructions given under MAKING MEASUREMENTS, GENERAL INFORMATION. To register a claim under the provisions of this warranty, return the instrument or test equipment to Triplett Corporation, Service Depart- 2) Connect the test leads to the circuit to be measured, observing the proper polarity of theleads (if ment, One Triplett Drive, Bluffton, Ohio 45817, transportation prepaid. Upon our inspection of the product, we will advise you as to the important in your application). disposition of your claim. ALL WARRANTIES IMPLIED BY LAW ARE HEREBY LIMITED TO A PERIOD OF ONE YEAR FROM DATE OF PURCHASE, AND THE 3) Read the displayed resistance on the LCD. PROVISIONS OF THE WARRANTY ARE EXPRESSLY IN LIEU OF ANY OTHER WARRANTIES EXPRESSED OR IMPLIED. The purchaser agrees to assume all liability for any damages and bodily injury which may result from the use or misuse of the product DIODE TEST by the purchaser, his employees, or others, and the remedies provided for in this warranty are expressly in lieu of any other liability Triplett Corporation may have, including incidental or consequential damages. WARNING REMOVE ALL POWER FROM THE CIRCUIT BEING TESTED. FOLLOW Some states (USA ONLY) do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or APPROPRIATE PROCEDURES TO REMOVE CHARGE FROM ANY CAPACITORS IN THE CIRCUIT. exclusion may not apply to you. No representative of Triplett Corporation or any other person is authorized to extend the liability of NEVER CONNECT THE TEST LEADS TO ANY SOURCE OF VOLTAGE Triplett Corporation in connection with the sale of its products beyond the terms hereof. WHEN THE METER IS SET TO DIODE TEST. Triplett Corporation reserves the right to discontinue models at any time, or change specifications, price or design, without notice and without incurring any obligation. Follow the procedures outlined in the Safety Rules and General Information This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Note: This meter is not intended to perform in-circuit testing of diodes. 1) Set the rotary switch to DIODE ( ). Press the SELECT/REL button ( ) while observing the annunciators on the LCD display. Select the DIODE mode of operation. TRIPLETT 2) Connect the test leads to the circuit to be measured, observing the proper polarity of theleads. Triplett Corporation One Triplett Drive Bluffton, OH 45817 PN 84-834 3) Read the diode voltage on the LCD. 800-TRIPLETT FAX: 419-358-7956 www.triplett.com Rev B
