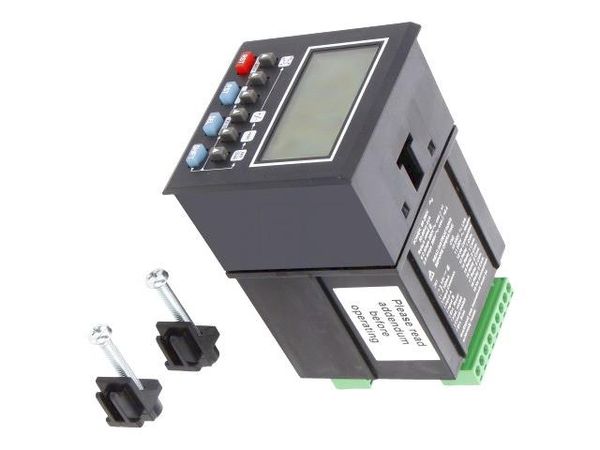

9100 Series Predetermining Counter / Ratemeter The versatile 9100 multi-function instrument is a multi-preset, totalizing counter / ratemeter with backlit display. Simultaneous operation in different modes is now possible with this recent development of the highly successful 9100 multi- function counter. Additional enhancements include 3-line display, more keys, enhanced programming, EEPROM memory avoiding the need for a battery, and on-screen programming prompts in four languages. The 9100 carries out rate measurement, batch counting and totalizing simultaneously. Rate mode is signified by an R appearing at the top left hand corner of the display and counting carries on in the background. The first line of the display shows pulses per minute (PPM) unless a prescaler is in use. Key Features Simultaneously maintains any 3 of the following: Count Accurate enough for position sensing and robotic control preset, count pre-warn, batch preset, overspeed, Can be powered from 85-265VAC for world-wide use underspeed condition and displays count, total and speed M ultiplying and dividing prescalers enable display directly Counts in any of 7 modes: A-B, A+B, A/B, count and in the required (engineering) units direction and quadrature x1, x2 and x4 Manual, remote and automatic resets available EEPROM retains program and data for 40-years with no Remote inhibit and remote keyboard disable power F ast electronic or slow contact closure inputs, all with 3-line Supertwist LCD display viewable from any angle optical isolation. Contact closure inputs are debounced E asily programmed in English, German, French or Auxiliary 12VDC 100mA power output to power sensor Spanish using simple menu structure and 10-key keypad Environmental protection to IP65/NEMA4X Counting continues while rate measurement is in CE approved progressSp e ci fic at ion s Power Supply 85 - 265VAC Auxiliary Output 12VDC 10% 100mA for powering sensors Display 3 line high contrast supertwist backlit LINE 1: 8 numeric LCD LINE 2: 12 alphanumeric LINE 3: 12 alphanumeric Keyboard Sealed elastometric keyboard with 10 keys Connections 1 x 9 way and 1 x 10 way plug in terminal strips with wire clamps. Each way capable of accepting up to 2 OFF 2.5mm2 (0.1in2) conductors Prescaler 0.0025 - 9.99999 . Multiplying 0.00250 - 9.99999. Dividing 1- 9999 Rate Input I nput A only. 8 - 30VDC. Maximum 600k PPM (10kHz), minimum 4.7 PPM (0.078Hz i.e. one pulse every 12.8s) Control Inputs External reset, count inhibit, keyboard disable. Maximum 30Hz contact closure or solid state input. 8 - 30VDC Opto-Isolated Manual Reset Can be disabled on installation or remotely reset Remote Reset Contact closure or pulse (minimum pulse duration 34msec) Automatic Reset Program to reset to zero on reaching preset 3 or vice versa Control Outputs 3 SPST relays. Contacts 5A 260VAC, 220VDC 1300VA/150W. Programmable for pulsed, latched or disabled Front Panel Sealing IP 65/NEMA 4X Operating Temp. -10C to +60C 14F to 140F Storage Temp. -20C to +70C -4F to 158F Relative Humidity 85% at 25C non-condensing Dimensions Ordering Information 9100 Predetermining Counter / Ratemeter Trumeter (The Americas) Trumeter (Europe) Innovative Design Technologies Sdn. Bhd 6601 Lyons Rd, Suite H-7, Pilot Mill Lot 5881, Lorong Iks Bukit Minyak 1 Coconut Creek, Florida Alfred Street Taman Perindustrian Iks, 14000 Bukit Tengah FL 33073, Bury, Penang, Malaysia USA BL9 9EF Web: www.idtworld.com Tel: +1 954 725 6699 Tel: +44 161 674 0960 Tel: + 604 5015700 Email: sales.usa trumeter.com Email: sales.uk trumeter.com Email: sales.my idtworld.com www.trumeter.com 9100-DS.v.3.0 03/2020
