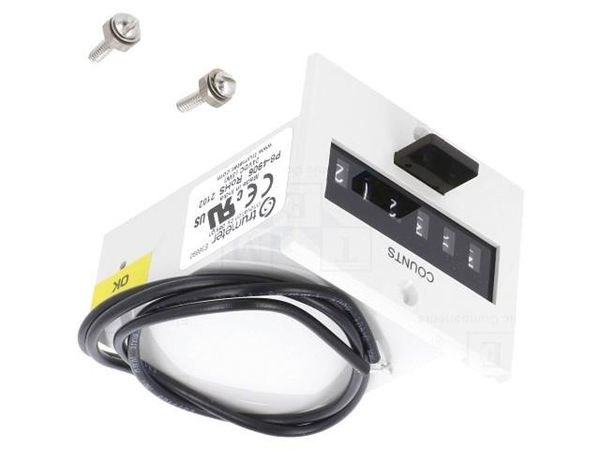

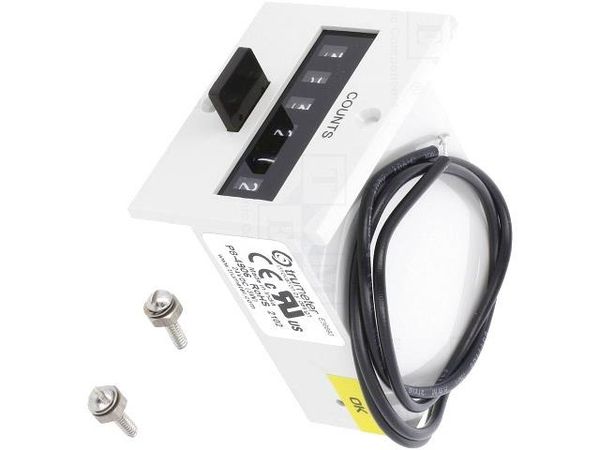

P8-4906 Trumeter

49 Series Electromechanical Totalizer Economically priced 4 and 6 figure push-button reset, electromechanical counter designed for use where limited space is a factor and when reliability is critical. Rugged operating mechanisms require no lubrication or maintenance. Compact size and minimum space requirements make the Model 49 ideally suited for use in control panels, business machines, and test equipment. Key Features Compact Options include: No maintenance Voltages Quick reset 4 or 6 figure Applications Test Equipment Control Panels Business Machines Medical devicesSpecifications Figures: 4 or 6 figures, white on black, 0.16 4mm high Reset: Push-button Speed: 600 counts/minute (min. 50ms - on, 50ms - off) Voltages: 115 VAC, 24V D C (+10% to - 15%) Power: AC: 115VAC ~ 3 watts, DC: 24VDC ~ 2 watts Mounting: Panel, base, or bail Termination: (2) 22 AWG 105C wire leads, 10 254mm long Operating Life: Beyond 100 million counts Temp. Range: -15 F to +14 0 F -2 6 C to + 6 0 C Approvals: UL Recognized, CE Compliant, ROHS Weight : 4 oz. 113g (4 fig.), 5 oz. 142g (6 fig.) Dimensions Panel Mount - 4 Figure Bail Mount - 4 Figure Base Mount - 4 Figure 1.80 45.7 2.55 64.8 1.65 41.9 2.55 64.8 2.52 64.0 2.83 71.9 0.98 24.9 1.40 35.6 1 2 3 4 1.80 45.7 0.97 24.6 0.63 16.0 1 2 3 4 1.14 29.0 0.97 24.6 1 2 4 3 1.14 28.9 0.97 24.6 2.13 54.1 Panel cutout: 1.46 x 1.01 37.1 x 25.7mm Panel cutout: 1.46 x 1.01 37.1 x 25.7mm Mounting holes: 0.12 x 0.20 3.1 x 5.1mm slots Mounting holes: For 4 flat head screw Panel Mount - 6 Figure Bail Mount - 6 Figure Base Mount - 6 Figure 2.21 56.1 2.55 64.8 2.21 56.1 2.55 64.8 3.10 78.7 2.83 71.9 1.40 35.6 1 2 3 4 5 6 1.80 45.7 0.97 24.6 1 2 3 4 5 6 0.97 24.6 0.63 16.0 0.95 24.1 1.14 29.0 1 2 3 4 5 6 1.14 28.9 0.97 24.6 2.68 68.1 Panel cutout: 2.00 x 1.01 50.8 x 25.7mm Panel cutout: 2.00 x 1.01 50.8 x 25.7mm Mounting holes: 0.12 x 0.20 3.1 x 5.1mm slots Mounting holes: For 4 flat head screw Part Numbers B2-4904 115VAC, 4 figure, bail mount B8-4906 24VDC , 6 figure, bail mount B8-4904 24VDC, 4 figure, bail mount D2-4906 115VAC, 6 figure, base mount D2-4904* 115VAC, 4 figure, base mount P2-4906* 115VAC, 6 figure, panel mount P2-4904* 115VAC, 4 figure, panel mount P8-4906* 24VDC, 6 figure, pane l mount P8-4904* 24VDC, 4 figure, pane l mount P9-4906 12VDC, 6 figure, panel mount P9-4904 12VDC, 4 figure, pane l mount P9-4906NR 24VDC, 6 figure, panel mount, non reset B2-4906 115VAC, 6 figure, bail mount Trumeter (The Americas) Trumeter (Europe) Innovative Design Technologies Sdn. Bhd 6601 Lyons Rd, Suite H-7 Pilot Mill Lot 5881, Lorong Iks Bukit Minyak 1 Coconut Creek, Florida Alfred Street Taman Perindustrian Iks, 14000 Bukit Tengah FL 33073, Bury, Penang, Malaysia USA BL9 9EF Web: www.idtworld.com Tel: +1 954 725 6699 Tel: +44 161 674 0960 Tel: + 604 5015700 Email: sales.usa trumeter.com Email: sales.uk trumeter.com Email: sales.my idtworld.com www.trumeter.com 49-series-DS.v.3.1 06/2020
