X-On Electronics has gained recognition as a prominent supplier of UT202R Clamp Multimeters & Accessories across the USA, India, Europe, Australia, and various other global locations. UT202R Clamp Multimeters & Accessories are a product manufactured by Uni-T. We provide cost-effective solutions for Clamp Multimeters & Accessories, ensuring timely deliveries around the world.

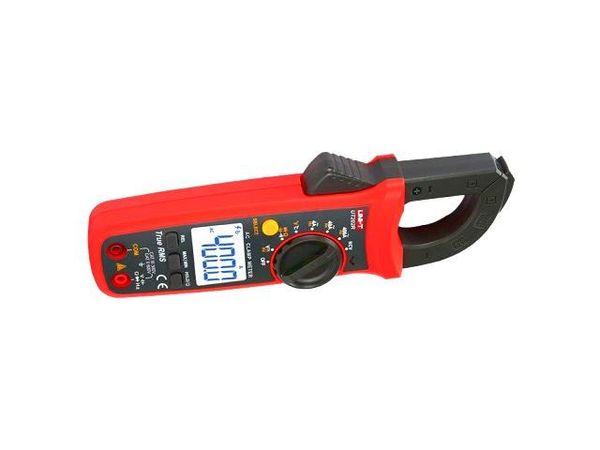

UT202R Uni-T

Name: UT202R
Brand: Uni-T
SKU: UT202R_Uni-T
Availability: InStock
Rating: 5 (11 reviews)

Images are for reference only
See Product Specifications

Part No.	UT202R
Manufacturer:	Uni-T
Category:	Clamp Multimeters & Accessories
Description:	AC digital clamp meter; Øcable: 28mm; LCD (4000); I AC: 400A; 4mF
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 38.7051 ea
Line Total: USD 38.71

Availability - 3
Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

UT202R More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

3

Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ : 1
Multiples : 1

1 : USD 38.7051
2 : USD 36.603

Specifications

Manufacturer
Uni-T Uni-T

Product Category
Clamp Multimeters & Accessories Clamp Multimeters & Accessories

Category
Clamp Multimeters Accessories Clamp Multimeters Accessories

Standard Equipment
test leads, cover, temperature probe test leads, cover, temperature probe

Conform To The Norm
EN61010 600V CAT II, EN61010 300V CAT III EN61010 600V CAT II, EN61010 300V CAT III

Measuring Instrument Features
autoranging, automatic power - off, HOLD function (for holding display readout), MIN/MAX/REL function, non - contact voltage detector, low battery indicator autoranging, automatic power - off, HOLD function (for holding display readout), MIN/MAX/REL function, non - contact voltage detector, low battery indicator

Resistance Measuring Accuracy
± (1 % + 2 digits) ± (1 % + 2 digits)

Ac Voltage Measuring Accuracy
(1 % + 5 digits) (1 % + 5 digits)

Max. Diameter Of Measured Cable
28 mm 28 mm

Dc Voltage Measuring Accuracy
(0 , 7 % + 3 digits) (0 , 7 % + 3 digits)

Kind Of Display Used
LCD (4000) LCD (4000)

Capacitance Measuring Accuracy
± (4 % + 5 digits) ± (4 % + 5 digits)

True Effective Value Measurement
True RMS True RMS

Type Of Meter
AC digital clamp meter AC digital clamp meter

Continuity Test
acoustic indication, <10Ω acoustic indication, <10Ω

Test
diodes diodes

Measurement
AC voltage, DC voltage, temperature, capacitance, resistance, AC current, continuity AC voltage, DC voltage, temperature, capacitance, resistance, AC current, continuity

Dimensions
215x63x36mm 215x63x36mm

Weight With Battery
248 g 248 g

Ac Current Measuring Range
400 A 400 A

Resistance Measuring Range
40 MOhms 40 MOhms

Dc Voltage Measuring Range
600 V 600 V

Ac Voltage Measuring Range
600 V 600 V

Capacitance Measuring Range
4 MF 4 MF

Temperature Measuring Range Measured By Probe
- 40 To 1000 C - 40 To 1000 C

Ac Current Measuring Accuracy
(4 % + 10 digits) (4 % + 10 digits)

Temperature Measuring Accuracy Measurement With Probe
± (1 , 5 % + 5) ± (1 , 5 % + 5)

Battery/ Rechargeable Battery
battery R03 AAA 1 , 5V x2 battery R03 AAA 1 , 5V x2

Power Supply
b A ttery R03 A A A 1 , 5 V x2 b A ttery R03 A A A 1 , 5 V x2
