UT505B Uni-T

Name: UT505B
Brand: Uni-T
SKU: UT505B_Uni-T
Availability: InStock
Rating: 5 (11 reviews)

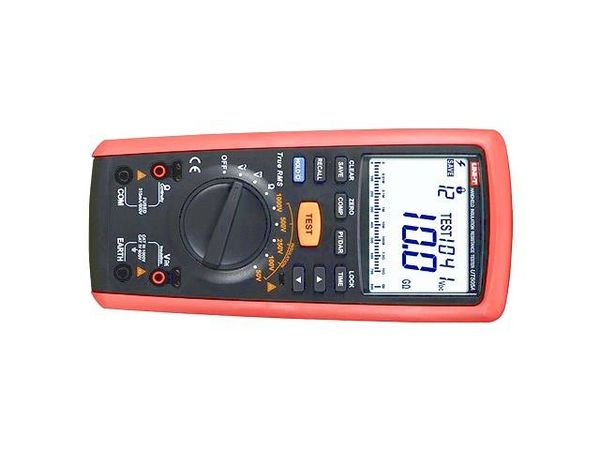

Images are for reference only
See Product Specifications

Part No.	UT505B
Manufacturer:	Uni-T
Category:	Insulation Testers/Megohmmeters
Description:	Meter: insulation resistance; LCD; (6000); R range: 1Ω÷10MΩ
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 314.9769 ea
Line Total: USD 314.98

Availability - 1
Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

UT505B More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1

Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ : 1
Multiples : 1

1 : USD 314.9769
3 : USD 305.9511

Specifications

Manufacturer
Uni-T Uni-T

Product Category
Insulation Testers/Megohmmeters Insulation Testers/Megohmmeters

Kind Of Display Used
LCD LCD

Power Supply
b A ttery R6 A A 1 , 5 V x6 b A ttery R6 A A 1 , 5 V x6

Body Dimensions
103x225x59mm 103x225x59mm

Illumination
yes yes

Measurement Memory
99 99

Standard Equipment
test leads, case, crocodile clips, test probes test leads, case, crocodile clips, test probes

Measuring Instrument Features
autoranging, automatic power - off, automatic circuit discharging after insulation resistance measurement, low battery indicator, polarization index (PI) and dielelectric absorption ratio (DAR), HOLD function autoranging, automatic power - off, automatic circuit discharging after insulation resistance measurement, low battery indicator, polarization index (PI) and dielelectric absorption ratio (DAR), HOLD function

Type Of Meter
insulation resistance insulation resistance

Continuity Test
acoustic indication, 10mΩ...100Ω acoustic indication, 10mΩ...100Ω

True Effective Value Measurement
True RMS True RMS

Bargraph
yes yes

Measurement
AC voltage, DC voltage, insulation resistance AC voltage, DC voltage, insulation resistance

Test Voltage
1 kV , 500 V , 250 V , 50 V , 100 V 1 kV , 500 V , 250 V , 50 V , 100 V

Resistance Measuring Range
1 Ohms To 10 MOhms 1 Ohms To 10 MOhms

Dc Voltage Measuring Range
- 600 To 600 V - 600 To 600 V

Ac Voltage Measuring Range
0 To 600 V 0 To 600 V

Frequency Measuring Range
45 To 1000 Hz 45 To 1000 Hz

Capacitance Measuring Range
100 pF To 500 uF 100 pF To 500 uF

Battery/ Rechargeable Battery
battery R6 AA 1 , 5V x6 battery R6 AA 1 , 5V x6

Insulation Resistance Measuring Ranges
100 MOhms , 500 MOhms , 200G Ohms , 200 MOhms , 10G Ohms , 50G Ohms , 20G Ohms , 1G Ohms , 10 kOhms hms To 50 MOhms 100 MOhms , 500 MOhms , 200G Ohms , 200 MOhms , 10G Ohms , 50G Ohms , 20G Ohms , 1G Ohms , 10 kOhms hms To 50 MOhms

Display Parameters
(6000) (6000)

Frequency Measuring Accuracy
(2 % + 3 digit) (2 % + 3 digit)

Capacitance Measuring Accuracy
± (5 % + 5 digit) ± (5 % + 5 digit)

Dc Voltage Measuring Accuracy
(2 % + 3 digit) (2 % + 3 digit)

Ac Voltage Measuring Accuracy
(1.5 % + 5 digit) (1.5 % + 5 digit)

Resistance Measuring Accuracy
± (3 % + 3 digit) ± (3 % + 3 digit)

Notes:- Show Stocked Products With Similar Attributes.
