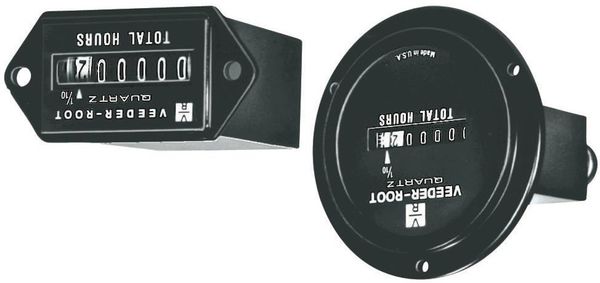

EAGLE SIGNAL brand VEEDER-ROOT brand 7795 Hourmeters Electric Timers Rugged and reliable hour meters in rectangular or round case, for AC or DC operation Specific Models CERTIFIED RECOGNIZED Ruggedness and reliability are featured in the Series 7795 electric hour SPECIFICATIONS meters. One-tenth hour resolution, round or rectangular package and Panel Mounting: cutout styles and a choice of DC or AC inputs allow its use on Round Case: 2.00 diameter cutout construction machinery or leased equipment to determine usage, Rectangular Case: 0.95 x 1.45 cutout maintenance, and warranty periods. DC Hour Meters: n Easy to install Input: 10 to 32 VDC Accuracy: 0.02% n Compact and requires only a small panel cutout Capacity: Up to 9999.9 hours, automatic recycle at zero n Durable and shock resistant Operating Temperature: 40 to +185 F (40 to +85 C) n Lightweight for use on portable equipment AC Hour Meters: Input: 120 VAC (range 10%), 60 Hz n Sealed against dirt and moisture Accuracy: 1% n Tamper-proof and non-resettable Capacity: Up to 99999.9 hours, automatic recycle at zero Operating Temperature: 65 to +154 F (18 to +68C) n Easy to read figures Model No. Description 779555-216 Round Case, 10 to 32 VDC, Spade Terminals 779565-216 Rectangular Case, 10 to 32 VDC, Spade Terminals 779516-201 Round Case, 120 VAC, Screw Terminals 779526-201 Round Case, 120 VAC, 7 Leads 779536-201 Rectangular Case, 120 VAC, Screw Terminals 779546-201 Rectangular Case, 120 VAC, 7 Leads Dimensions: .150 /3.18mm Dia. .06 /1.52mm R. Max. Mounting Holes (2) VEEDER-ROOT .950 123456 24.13mm 1.020 25.91mm TOTAL HOURS .108 1.450 36.83mm 2.74mm 1.750 .058 44.45mm 1.47mm 2.074 1.95 52.68mm 49.53mm Typical Applications: 2.68 .313 1.90 68.07mm 7.95mm 48.26mm VEEDER-ROOT 123456 TOTAL HOURS Mounting Hole: 2.00 /50.8mm Dia. .141 .125 /3.18mm Dia. Holes (3) 3.58mm 120 apart on a 2.42 /61.47mm Dia. Bolt Circle DANAHER CONTROLSX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Veeder Root manufacturer: Other Similar products are found below : 0166726-006 0195316-051 0116425-007 RFMT00R RFMV00 RFXDC10 RFXP10 RFXS00 RFXT00 C342-0462 C346-0422 C628-20052 C628-20300 C628-40050 C628-41002 C628-41300 C628-70002 C628-81002 C628-90000 C628-91002 S628-20300 A103-A14 RFMSK00 RFMT00 RFMV00R RFXD00 RFXD10 RFXS10 C342-1562 C342-3462 C346-0513 C628-20000 C628-20002 C628-21350 C628-40000 C628-40052 C628-41302 C628-51002 C628-60002 VC773-342 0317680-001 0703006-003 0726845-001 0727245-001 0743425-003 0743425-005 0743797-001 0744386-211 0745815-001 0779526-201
