DLA 13008
www.vishay.com
Vishay

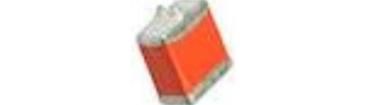

Solid Tantalum Chip Capacitors TANTAMOUNT,
Conformal Coated Case, Ultra Low ESR, DLA Approved
FEATURES
High reliability
Surge current testing per MIL-PRF-55365 options
Ultra-low ESR
Tin / lead (SnPb) termination
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40211 Capacitance Range: 10 F to 1500 F
Operating Temperature: -55 C to +125 C
Capacitance Tolerance: 10 %, 20 % standard
(above 85 C, voltage derating is required)
Voltage Rating: 4 V to 63 V
DC DC
ORDERING INFORMATION
13008 -001 K E S A /HR
DRAWING DASH CAPACITANCE TERMINATION RELIABILITY SURGE CURRENT PACKAGING
NUMBER NUMBER TOLERANCE LEVEL
K = 10 % E = solder plated S = voltage aging A = 10 cycles Blank = full 7" reel
M = 20 % (Sn/Pb solder) at +25 C /HR = half 7" reel
B = 10 cycles
at -55 C / +85 C
(after voltage aging)
C = 10 cycles
at -55 C / +85 C
(before voltage aging)
Z = no surge
DIMENSIONS in inches [millimeters]
Tantalum wire nib identifie s
J
anode (+) terminal
W
L
D
H
B
A
CASE CODE L (MAX.) W H A B D (REF.) J (MAX.)
0.299 0.173 0.016 0.079 0.051 0.012 0.181 0.024 0.252 0.004
V
[7.6] [4.4 0.4] [2.0 max.] [1.3 0.3] [4.6 0.6] [6.4] [0.1]
0.299 0.173 0.016 0.138 0.051 0.012 0.181 0.024 0.252 0.004
D
[7.6] [4.4 0.4] [3.5 max.] [1.3 0.3] [4.6 0.6] [6.4] [0.1]
0.299 0.173 0.016 0.157 0.016 0.051 0.012 0.181 0.024 0.252 0.004
E
[7.6] [4.4 0.4] [4.0 0.4] [1.3 0.3] [4.6 0.6] [6.4] [0.1]
0.299 0.238 0.016 0.142 0.016 0.051 0.012 0.181 0.024 0.244 0.004
R
[7.6] [6.0 0.4] [3.6 0.4] [1.3 0.3] [4.6 0.6] [6.2] [0.1]
0.299 0.238 0.016 0.185 0.016 0.055 0.016 0.181 0.024 0.244 0.004
F
[7.6] [6.0 0.4] [4.7 0.4] [1.4 0.4] [4.6 0.6] [6.2] [0.1]
0.299 0.238 0.016 0.236 0.016 0.055 0.016 0.181 0.024 0.244 0.004
Z
[7.6] [6.0 0.4] [6.0 0.4] [1.4 0.4] [4.6 0.6] [6.2] [0.1]
0.315 0.260 + 0.016 / - 0.024 0.142 0.016 0.051 0.012 0.197 0.024 0.260 0.004
M
[8.0] [6.6 + 0.4 / - 0.6] [3.6 0.4] [1.3 0.3] [5.0 0.6] [6.6] [0.1]
0.315 0.260 + 0.016 / - 0.024 0.205 0.016 0.055 0.016 0.197 0.024 0.260 0.004
H
[8.0]
[6.6 + 0.4 / - 0.6] [5.2 0.4] [1.4 0.4] [5.0 0.6] [6.6] [0.1]
0.315 0.260 + 0.016 / - 0.024 0.252 0.016 0.056 0.017 0.196 0.025 0.259 0.004
N
[8.0] [6.6 + 0.4 / - 0.6] [6.4 0.4] [1.4 0.4] [5.0 0.6] [6.6] [0.1]
Note
The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
Revision: 26-Jan-16 Document Number: 40164
1
For technical questions, contact: tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
DLA 13008
www.vishay.com
Vishay
RATINGS AND CASE CODES
F 4 V 6.3 V 10 V 16 V 20 V 25 V 35 V 50 V 63 V
10 D
15 E / R R
22 RF
33 F
47 RZ / N
68 RF
100 FF
150 F
220 E R M
330 V E F F / H
470 VEE H
680 E E R
1000 E / R R F
1500 R
STANDARD RATINGS
MAX. DCL (A) AT MAX. DF (%) AT MAX. ESR
CAPACITANCE AT +25 C
CASE CODE PART NUMBER
+85 C
(F) +25 C +85 C +125 C +25 C -55 C 100 kHz
+125 C
(m )
4 V AT +85 C; 2.7 V AT +125 C
DC DC
470 V 13008-001(1)ES(2)/(3) 18.8 188.0 225.6 8 10 12 60
680 E 13008-002(1)ES(2)/(3) 27.2 272.0 326.4 6 8 10 25
1000 E 13008-003(1)ES(2)/(3) 40.0 400.0 480.0 8 10 12 20
1000 R 13008-004(1)ES(2)/(3) 40.0 400.0 480.0 8 10 12 18
1500 R 13008-005(1)ES(2)/(3) 60.0 600.0 720.0 8 10 12 24
6.3 V AT +85 C; 4 V AT +125 C
DC DC
330 V 13008-010(1)ES(2)/(3) 20.8 208.0 249.6 8 10 12 56
470 E 13008-011(1)ES(2)/(3) 29.6 296.0 355.2 6 8 10 30
680 E 13008-012(1)ES(2)/(3) 42.8 428.0 513.6 6 8 10 25
1000 R 13008-013(1)ES(2)/(3) 63.0 630.0 756.0 8 10 12 31
10 V AT +85 C; 7 V AT +125 C
DC DC
330 E 13008-020(1)ES(2)/(3) 33.0 330.0 396.0 6 8 10 35
470 E 13008-021(1)ES(2)/(3) 47.0 470.0 564.0 6 8 10 28
680 R 13008-022(1)ES(2)/(3) 68.0 680.0 816.0 6 8 10 28
1000 F 13008-023(1)ES(2)/(3) 100.0 10 000 12 000 20 24 30 120
16 V AT +85 C; 10 V AT +125 C
DC DC
220 E 13008-030(1)ES(2)/(3) 35.2 352.0 422.4 8 10 12 60
330 F 13008-031(1)ES(2)/(3) 52.8 528.0 633.6 10 12 15 100
470 H 13008-032(1)ES(2)/(3) 75.2 752.0 902.4 14 17 21 100
20 V AT +85 C; 13 V AT +125 C
DC DC
220 R 13008-040(1)ES(2)/(3) 44.0 440.0 528.0 8 10 12 80
330 F 13008-041(1)ES(2)/(3) 66.0 660.0 792.0 10 12 15 100
330 H 13008-042(1)ES(2)/(3) 66.0 660.0 792.0 10 12 15 100
25 V AT +85 C; 17 V AT +125 C
DC DC
68 R 13008-050-(1)ES(2)/(3) 17.0 170.0 204.0 6 8 10 100
100 F 13008-051-(1)ES(2)/(3) 25.0 250.0 300.0 8 10 12 100
150 F 13008-052-(1)ES(2)/(3) 37.5 375.0 450.0 8 10 12 80
220 M 13008-053-(1)ES(2)/(3) 55.0 550.0 660.0 8 10 12 100
35 V AT +85 C; 23 V AT +125 C
DC DC
47 R 13008-060(1)ES(2)/(3) 16.5 165.0 198.0 6 8 10 100
68 F 13008-061(1)ES(2)/(3) 23.8 238.0 285.6 6 8 10 100
100 F 13008-062MES(2)/(3) 35.0 350.0 420.0 8 10 12 100
Note
Part number definitions:
(1) Capacitance tolerance: K, M
(2) Surge current: A, B, C, Z
(3) Packaging: blank, /HR
